High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T,Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
200 type tire type water well drilling rig
Drilling method :
Mud pump drilling and air compressor drilling
Drilling diameter :
Φ105-Φ350mm
Max Rotary Speed :
30-120 r/min
Rod Diameter :
76-89mm
Drilling depth :
200m
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Dimension :
4400x2150x2200mm
Working Condition :
Loose layer and bedrock
Description

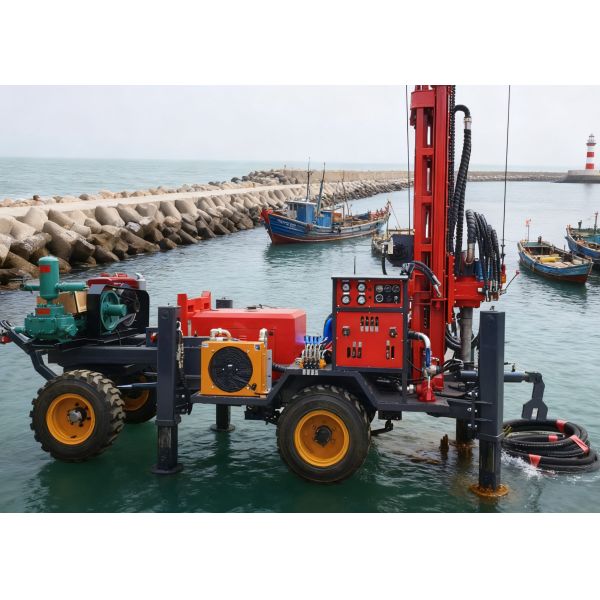

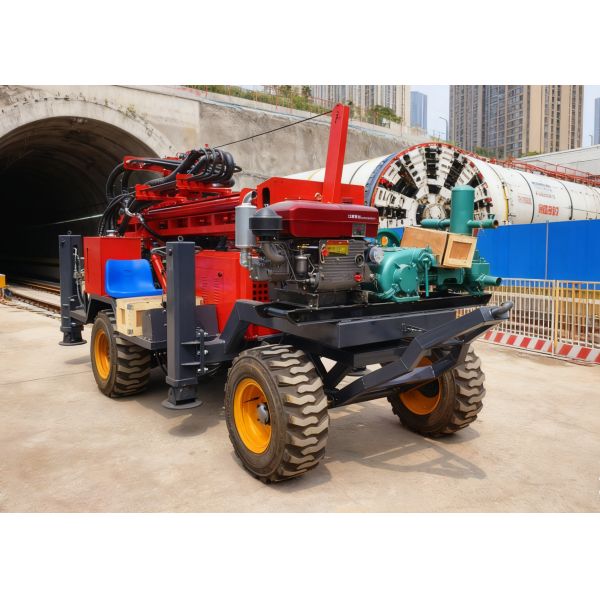

High Precision 200 Type Drilling Rig With High Power
The 200 type water well drilling rig is a practical equipment suitable for medium and shallow hole drilling, with a drilling depth of about 200 meters. This powerful rig offers stable drilling efficiency and features a compact structure for easy operation. It performs well in various geological conditions including soil, sand, and soft rock layers. Ideal for rural drinking water projects, farmland irrigation, construction site water supply, and emergency water scenarios. Some models include tire chassis for easy mobility and quick setup without complex installation requirements.
Technical Specifications
Parameter Value
Model Shitan ST 200
Max Drilling Depth 200m
Drilling Diameter 105-350mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3m
Rod Diameter 76-89mm
Main Shaft Pressure 4T
Lifting Force 18T
Power Head Stroke 40m
Max Rotary Torque 5900 Nm
Max Rotary Speed 30-120 r/min
Secondary Winch Lifting Force 1T
Jacks Stroke 1.35m
Moving Speed 2.5 km/h
Uphill Angle 21°
Weight 5.5T
Engine Xidong 65kw (Powerful)
Overall Dimensions 4400*2150*2200mm
Working Condition Loose layer and bedrock
Maintenance Guidelines
Daily Maintenance
  • Inspect key components including drill rods, bits, hydraulic systems, and brakes before and after operation
  • Replace worn or loose parts immediately to maintain optimal performance
  • Keep equipment clean by removing soil and drilling debris from tools
  • Prevent contaminants from entering transmission and hydraulic systems
  • Lubricate moving parts (gears, bearings, chains) with appropriate oil as per manual
Long-Term Storage
  • Store in dry, ventilated area with protection from rain, moisture, and dust
  • Drain hydraulic oil, fuel, and coolant when storing for extended periods
  • Start equipment periodically to maintain component flexibility
  • Regularly inspect circuits, hoses, and seals for damage
  • Repair any leaks or electrical issues immediately to prevent hazards
Operational Precautions
  • Follow all operating procedures strictly to prevent equipment damage
  • Avoid overloading the drilling capacity beyond specifications
  • Regularly calibrate instruments and control systems for accuracy
  • Maintain proper drilling parameters for efficiency and safety
Product Images
High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
High Precision 200 Type Drilling Rig With High Power
