Stable Water Well Drilling Rig With Good Wear Resistance
Stable Water Well Drilling Rig With Good Wear Resistance
Stable Water Well Drilling Rig With Good Wear Resistance
Stable Water Well Drilling Rig With Good Wear Resistance
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T,Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
200 type tire type water well drilling rig
Drilling method :
Mud pump drilling and air compressor drilling
Drilling diameter :
Φ105-Φ350mm
Rod Diameter :
76-89mm
Jacks Stroke :
1.35m
Drilling depth :
200m
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Dimension :
4400x2150x2200mm
Working Condition :
Loose layer and bedrock
Description
Stable Water Well Drilling Rig With Good Wear Resistance
Product Overview
The tire-type water well drilling rig is a compact, mobile drilling equipment featuring a tire chassis for easy transportation and quick deployment. Designed for versatility across various geological conditions, this rig offers stable drilling performance for rural drinking water systems, agricultural irrigation, construction site water supply, and emergency water scenarios. Its cost-effective operation makes it ideal for water well construction in towns, mountainous regions, and remote areas.
Technical Specifications
Parameter Value
Model Shitan ST 200
Max Drilling Depth 200m
Drilling Diameter 105-350mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3m
Rod Diameter 76-89mm
Main Shaft Pressure 4T
Lifting Force 18T
Power Head Stroke 40m
Max Rotary Torque 5900 Nm
Max Rotary Speed 30-120 r/min
Secondary Winch Lifting Force 1T
Jacks Stroke 1.35m
Moving Speed 2.5 km/h
Uphill Angle 21°
Weight 5.5T
Engine Xidong 65kw
Overall Dimensions 4400*2150*2200mm
Working Condition Loose layer and bedrock
Core Applications
  • Civilian drinking water: Domestic water wells for rural households, township communities, and remote villages
  • Agricultural irrigation: Water well construction for farmland, orchards, and vegetable bases
  • Small scale projects: Temporary water supply for construction sites and road maintenance
  • Emergency scenarios: Water replenishment for field operations and disaster recovery
  • Other applications: Water intake for livestock farms, private wells for homestays/farms, and shallow geological exploration
Work Process
  1. Power transmission: Engine-driven rotation and feeding of drilling tools
  2. Stratum fragmentation: Drill bit breaks rocks or soil through cutting and impact methods
  3. Slag discharge: Mud pump maintains hole stability by removing drilling debris
  4. Well completion: Casing and cementing to form usable water wells

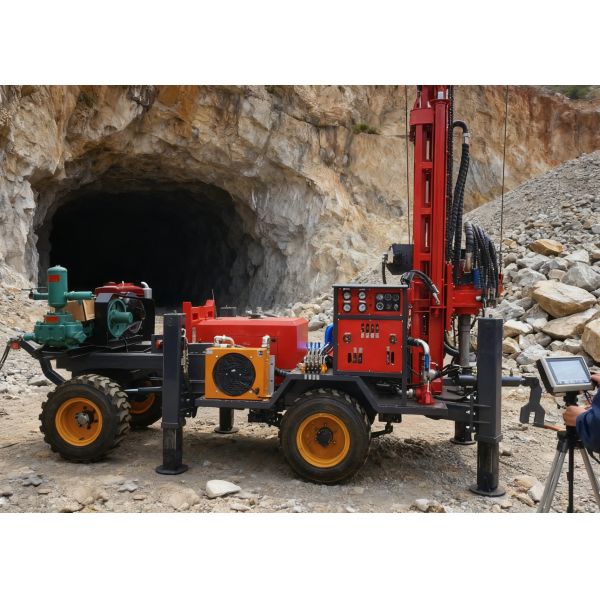

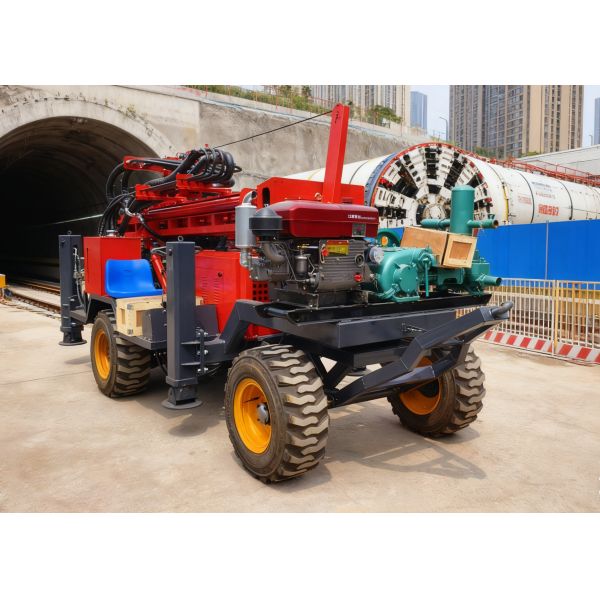

Product Images
Stable Water Well Drilling Rig With Good Wear Resistance Stable Water Well Drilling Rig With Good Wear Resistance Stable Water Well Drilling Rig With Good Wear Resistance Stable Water Well Drilling Rig With Good Wear Resistance Stable Water Well Drilling Rig With Good Wear Resistance Stable Water Well Drilling Rig With Good Wear Resistance
