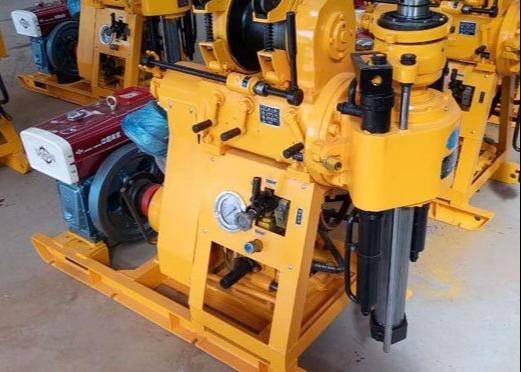

Xy-1a Portable Borewell Drilling Machine Gold Mining Exploration Oem
Xy-1a Portable Borewell Drilling Machine Gold Mining Exploration Oem
Xy-1a Portable Borewell Drilling Machine Gold Mining Exploration Oem
Xy-1a Portable Borewell Drilling Machine Gold Mining Exploration Oem
Specifications
Brand Name :
JINZHOUSHITAN
Model Number :
XY-1A
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD4200-4800/SET
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
normal wooden package
Product Name :
XY-1A Gold Mining Exploration ,OEM Hydraulic Borewell Machine
Guarantee Time :
1 Year
Weight :
600kg
Color :
Customized
Drill Depth :
Max. 150m
Drill Diameter :
300mm
Condition :
New
Application :
Water Well Drilling ,Soil Testing,Geological exploration
Material :
Steel
Warranty :
24 months
Description

XY-1A Gold Mining Exploration ,OEM Hydraulic Borewell Machine

XY-1A Hydraulic Borewell Machine Description

XY-1A Drilling Rig Machine was based on XY-1 100m Depth Hydraulic Drilling Rig Machine adding three drilling rig components parts of hydraulic swivel head, mobile oil cylinder and trailer underframe

XY-1A Hydraulic Borewell Machine Parameter

Drill rig technical information Swivel Head

Drilling depth

 Max.150m

Spindle speed

 1010,790,470,295,140(r/min)

Hole diameter

 Max.150m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1105
Hoisting drum revolution

121,76,36(r/min)

 Rated power 12.1KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm


XY-1A Hydraulic Borewell Machine Main Features:

1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.

2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.

3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy operation,free maintenance.

4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.

XY-1A Hydraulic Borewell Machine Operation Attentions

1.The drill shall be placed stably and firmly, and the tappet shall be adjusted by automatic fine adjustment or plumb hammer to keep it vertical.
2.Before startup, check and confirm that all parts of the drilling rig are firmly connected, the tightness of the transmission belt is appropriate, the oil level in the reduction box meets the regulations, and the drilling depth limit alarm device is effective.
3.Before starting, the control lever shall be placed in the neutral position. After starting, the idle operation test shall be carried out to check that the instruments, temperature, sound, braking and other works normally before operation
4.During operation, when the rotation direction of the drilling rig needs to be changed, it shall be carried out after the drilling rig stops completely.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
