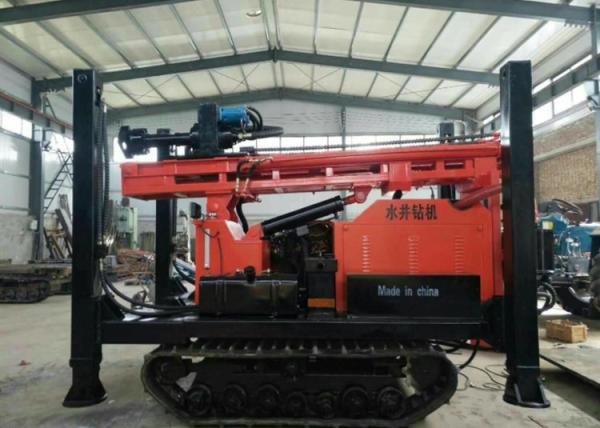

76mm Pipe Bore Well Drilling Machine 75kw Hp Hard Rock St 180
76mm Pipe Bore Well Drilling Machine 75kw Hp Hard Rock St 180
76mm Pipe Bore Well Drilling Machine 75kw Hp Hard Rock St 180
76mm Pipe Bore Well Drilling Machine 75kw Hp Hard Rock St 180
Specifications
Brand Name :
ST
Model Number :
ST-180
Certification :
ISO 9001
Place of Origin :
Hebei ,China
MOQ :
1set
Price :
15000-35000 USD
Payment Terms :
T/T, Western Union,
Supply Ability :
2000 sets/month
Delivery Time :
5 -10 days
Packaging Details :
Wooden Package
Product Name :
76mm Drilling Pipe 75kw HP Durable ST 180 Pneumatic Borewell Machine
Drilling Depth :
180 Meters
Drilling Hole Diameter :
105-180 mm
Weight :
4.5T
Dimension(L*W*H) :
3800*1500*2200mm
Walking speed :
2.5km/h
Climbing angles (Max.) :
30
Equipped capacitor :
55KW
Drill pipe diameter :
76/89mm
Condition :
New
OEM :
Acceptable
Warranty :
1 year
Description
76mm Pipe Bore Well Drilling Machine 75kw HP Hard Rock ST 180
Product Specifications
Attribute Value
Product Name 76mm Drilling Pipe 75kw HP Durable ST 180 Pneumatic Borewell Machine
Drilling Depth 180 Meters
Drilling Hole Diameter 105-180 mm
Weight 4.5T
Dimension (L×W×H) 3800×1500×2200mm
Walking speed 2.5km/h
Climbing angles (Max.) 30°
Equipped capacitor 55KW
Drill pipe diameter 76/89mm
Condition New
OEM Acceptable
Warranty 1 year
Product Overview

The ST 180 Pneumatic Borewell Machine is a lightweight, high-efficiency, multifunctional drilling equipment featuring advanced structure, easy operation, and durable construction. It is widely used for drilling wells, farming irrigation systems, geothermal air conditioning holes, and other applications, particularly suitable for water intake in mountainous areas and rock layers.

Technical Specifications
Drilling hole diameter 140-254mm
One-time advance length 3.3m
Using air pressure 1.7-2.5mpa
Air consumption 17-31m³/min
Drill pipe length 1.5m, 2.0m, 3.0m
Rig lifting force 12t
Swing speed 45-65rpm
Swing torque 3200-4600(N.m)
Key Features
  • Powered by 55KW Yuchai brand turbocharged engine for strong performance
  • Patented design compound boom with double cylinder lifting mechanism
  • Protective baffle on main arm to safeguard oil cylinder
  • Professional excavator chassis with wide chain plates and rubber tracks for durability and mobility
  • Parallel transmission design with independent oil pump for efficient power distribution
  • Simple operating system for ease of use
  • Easy truck loading/unloading capability
  • Optional dual systems: air power system with compressor or mud pump system
Packaging & Shipping
  • Water well drilling rig secured with steel wire ropes for safe transportation
  • Screw air compressor firmly fixed with steel wire ropes
  • Drilling tools packed in sturdy wooden cases for protection
  • Drill rods packed on pallets to ensure safety during transit
Troubleshooting: Sticking Issues

When drilling, sticking (inability to lift, lower or rotate pipe string) may occur. For minor cases, apply torque or use auxiliary tools to rotate the drilling tool while supplying air. For severe cases with broken components, use a seamless pipe filled with viscous materials to retrieve broken parts. Always clear rock powder before fishing operations.

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
