Highway ISO9001 150m Soil Sample Testing Equipment
Highway ISO9001 150m Soil Sample Testing Equipment
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-150
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
Neotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Soil Test Drilling Machine
Power Type :
Diesel
Usage :
Water Well drilling
Voltage :
380V
Power(W) :
11kw
Dimension(L*W*H) :
2750*950*1600mm
Weight :
500kg
Drilling Depth :
150m
Warranty :
1 Year
Description

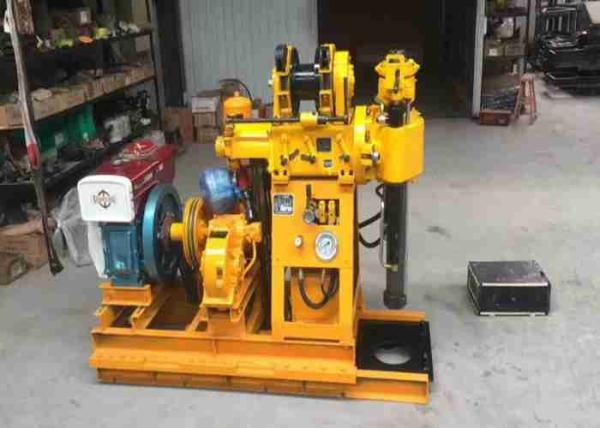

150 Meter Soil Test Drilling Machine Equipped for Soil Sampling

Product Description:

This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.

Brief introduction:

1.32 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.

Product Parameters:

Drilling depth(m)

150

Maximum opening diameter(mm)

219

The final hole diameter(mm)

73

Rod diameter(mm)

42/50

Spindle speed (r/min)

140/295/470/790/1010

Spindle stroke(mm)

450

Hoisting capacity (kn)

14

Steel wire diameter(mm)

9.3

Maximum pressure (mpa)

1.2

Working pressure (mpa)

0.7

displacement(l/min)

150

Hydraulic pump pressure (mpa)

1.2

Hydraulic pump rotation speed (r/min)

1800

Matched driving power (diesel engine and motor)

S1105 diesel engine and 11kw motor
