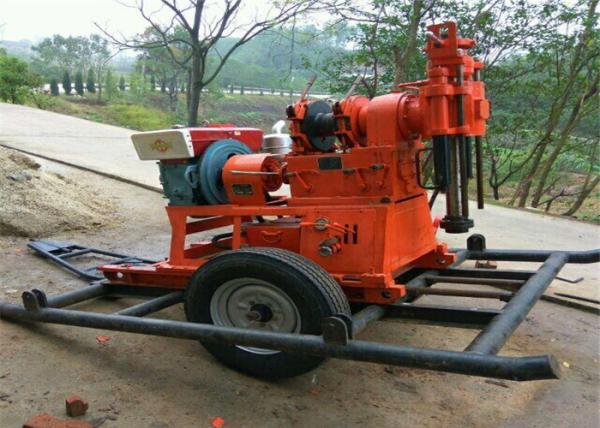

GK180 Drilling Rig Manufacturer Trailer Type
GK180 Drilling Rig Manufacturer Trailer Type
GK180 Drilling Rig Manufacturer Trailer Type
GK180 Drilling Rig Manufacturer Trailer Type
Specifications
Brand Name :
shitan
Model Number :
GK180
Place of Origin :
hebei
MOQ :
1P
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
5-7
Packaging Details :
Wooden box
Drilling depth :
180m
Drilling angle :
90°-75°
Dimensions :
2120*875*1480mm
Spindle speed :
71,182,310,790r/min
Power source :
diesel engine
Hole diameter :
75mm
Power type :
Diesel
Usage :
Water Well,geological prospecting
After-sales service provided :
Engineers available to service machinery overseas
Power(w) :
20HP
Name :
water well drilling rig
Description
GK180 Drilling Rig Manufacturer Trailer Type
Product Specifications
Attribute Value
Drilling depth 180m
Drilling angle 90°-75°
Dimensions 2120*875*1480mm
Spindle speed 71,182,310,790r/min
Power source Diesel engine
Hole diameter 75mm
Usage Water Well, geological prospecting
After-sales service Engineers available to service machinery overseas
Power 20HP
Product Description

GK180 Trailer Type Water Well Drilling Rig is a mobile drilling solution developed by synthesizing the advantages of various drilling rigs. This shallow hole drilling rig is primarily used for engineering geological surveys with secondary applications in core drilling.

Technical Parameters
Drilling depth 180m
Drill rod caliber 42mm
Hole diameter 75mm
Drilling angle 90°-75°
Dimensions 2120*875*1480mm
Weight (without power unit) 750kg
Swivel Head Specifications
Spindle speed 71,182,310,790r/min
Spindle stroke 450mm
Upward displacement speed of idling vertical spindle 0.05m/s
Downward displacement speed of idling vertical spindle 0.067m/s
Spindle pull-down max. 15KN
Spindle lifting capacity max. 25KN
Spindle max. torque 1.5KN.m
Brake diameter 278mm
Brake belt width 50mm
Hoist Specifications
Max. lifting capacity 20KN
Hoisting drum revolution 20,39,85,170r/min
Drum diameter 140mm
Wire rope diameter 9.3mm
Wire rope capability 40m
Oil Pump Specifications
Model YBC-20/125
Rated pressure 12.5Mpa
Displacement 20ml/r
Rated speed 800-2500r/min
Water Pump Specifications
Displacement max. 95(77)L/min
Working pressure max. 1.2Mpa
Rated pressure 0.7Mpa
Liner diameter 80mm
Piston stroke 100mm
Power Specifications
Rated power 16.2KW
Rated speed 2200r/min
Applications
  • Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings
  • Geological core drilling, physical prospecting
  • Small grout Confucius, drill hole drilling
  • Small well drilling

The drilling rig features a ball mounted card blessing mechanism with six side active drill rods, enabling no stopping and falling rod operations. It offers high work efficiency, convenient operation, safety and reliability. The compact design is small in size, light in weight, with strong decomposition capabilities for easy removal and transportation.

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order

GK180 Drilling Rig Manufacturer Trailer Type GK180 Drilling Rig Manufacturer Trailer Type GK180 Drilling Rig Manufacturer Trailer Type
