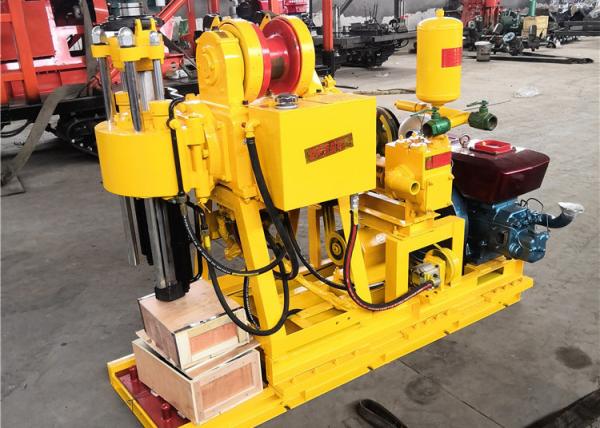

Diesel 150 Meter Hard Rock Diamond Drill Rig
Diesel 150 Meter Hard Rock Diamond Drill Rig
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
XY-1A
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Condition :
New
Power Type :
Diesel
Voltage :
220V/380V
Power(W) :
15KW
Weight :
500kg
Description
150m Hard Rock Drilling Available Used Diamond Core Drilling Machine
Product Description

XY-1A 150m hard rock drilling available used diamond core drilling machine

XY-150 diamond core drilling machine is a small drilling rig for 150m deep, widely applied for Geology general check exploration, Earth physics exploration, Road and hihg layer buiding ground survey, Water Bore Well, blast opening et cetera, drilling engineering, etc.

Main Specification
Unity machine parameter
Drilling depth
150m
Maximum open hole caliber
400mm
End hole caliber
75mm
Drill rod caliber
50mm
Drilling angle
90~75
Drill weight(No include power
760kg
Unity machine dimensions
2*1*1.4m
Spindle
Spindle speed
140.295.470.790.1010r/min
Spindle stroke
450mm
Hoist
Max.xingle line hoisting capacity
1600kg
Tightrope caliber
11mm
Tightrope cubic measure
35m
Hug floodgate caliber
245mm
Hug floodgate belt width
70mm
Mud pump
Type
Horizontal single urn twin-action
Displacement
95/77L/min
Maximum pressure
1.2Mpa
Work pressure
0.7Mpa
Water inlit caliber
50mm
Water to exit caliber
42mm
Power
Diesel engine
18HP
Speedlimit
2200r/min
Electric motor
11kw
Speedlimit

1460r/min
