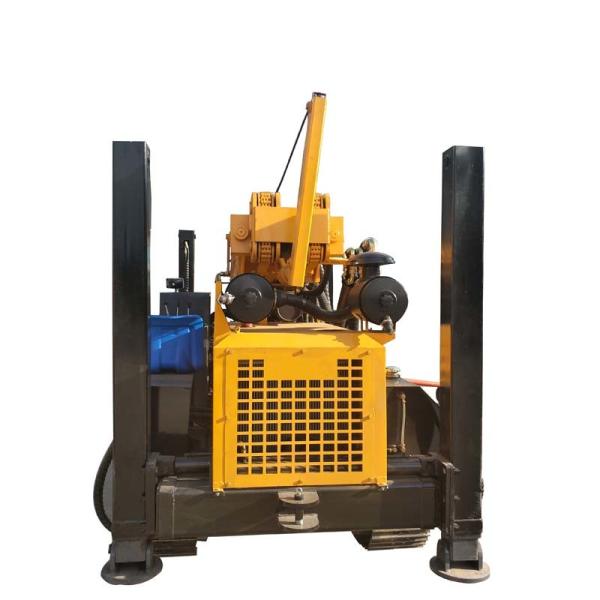

Portable Type Hydraulic Crawler Mounted Drill Rig Machine To Drill Water Well
Portable Type Hydraulic Crawler Mounted Drill Rig Machine To Drill Water Well
Specifications
Brand Name :
Shitan
Model Number :
30-800
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Soil Testing Drilling Rig Machine
Geological :
soil, rock, hard rock,
Drilling depth :
30-800
Type :
portable type
Usage :
Soil sample
Warranty :
1 Year
Description
Portable Type Hydraulic Crawler Mounted Drill Rig Machine To Drill Water Well
Product Specifications
Attribute Value
Product name Soil Testing Drilling Rig Machine
Geological compatibility soil, rock, hard rock
Drilling depth (m) 30-800
Type Portable type
Usage Soil sample
Warranty 1 Year
Product Overview
The ST200 crawler type water well drilling rig is a highly efficient and versatile drilling equipment designed for various well drilling applications including water wells, agricultural irrigation wells, and ground source heat pump wells. It is particularly effective for water intake projects in mountainous and rocky terrains.
Key Features
  • 200m drilling capacity for water wells
  • Advanced hydraulic technology with high-torque hydraulic motor rotation
  • Large-diameter hydraulic cylinder propulsion system
  • Modular design for easy truck mounting and enhanced mobility
  • Dual-speed swivel and propulsion for different soil and rock formations
  • Maximum drilling diameter of 350mm
Technical Specifications
Model ST100 ST200
Walking speed (km/h) 0-20 0-3
Power
YN33GB
Dynamic parameter 37kW/2400rpm 55kW/2400rpm
Ground clearance (mm) 250 250
Impactor DHD360 DHD360
Climbing capacity (°) 20 20
Drilling depth (m) 120 200
Operating air pressure (MPa) 1.05-2.46 1.05-2.46
Air consumption (m³/min) 16-30 16-35
Drilling rod diameter (mm) Ø76 / Ø89 / Ø102 Ø76 / Ø89 / Ø102
Drilling rod length (mm) 1500 3000
Drill bit diameter (mm) Ø115-Ø254 Ø115-Ø350
Propelling force (kN) 27 8
Lifting force (kN) 40 16
Rotary speed (rpm) Low speed: 38
High speed: 75		 Low speed: 40
High speed: 160
Rotary torque (N.m) 3500 4000
Portable Type Hydraulic Crawler Mounted Drill Rig Machine To Drill Water Well
Product tags

portable water drill rig

,

portable water drilling rig

,

rig water drilling machine
