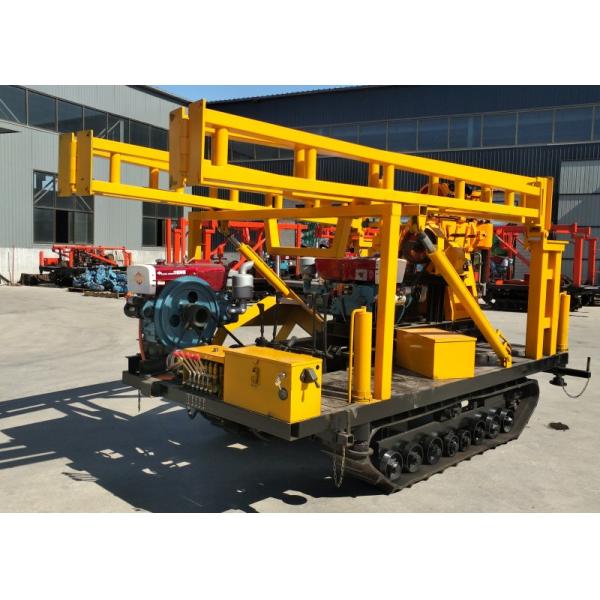

Diesel 200m BW-160 Portable Borewell Drilling Machine
Diesel 200m BW-160 Portable Borewell Drilling Machine
Diesel 200m BW-160 Portable Borewell Drilling Machine
Diesel 200m BW-160 Portable Borewell Drilling Machine
Specifications
Brand Name :
ShiTan
Model Number :
GK200
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Delivery Time :
Within 7-12 days
Packaging Details :
Wooden box
Type :
hydraulic crawler drilling rig
Color :
Red Yellow
Feature :
High Drilling Efficiency
Usage :
Water Well
Application :
Soil Sampling
Power Type :
Diesel
Description
Diesel 200m Crawler Mounted Drill Rig Portable High Efficiency Drilling
Product Description

Product Application

1. Drilling rig uses automatic telescopic drilling rig(Julong patent),it uses two high-strength cylinders to support.There is a group of hydraulic valves to control supination of drill tower so that it saves time and effort, safe and reliable when user operates, the maximum for the user to create benefits.

2. The chassis uses a rubber belt track so that the weight is light,the cost of life cycle is lower.It can reduce noise of the vehicle walking mechanism,reduce car body's shake,redue the oil consumption.It can walk on the pavement of city and don't hurt the pavement.

3. The chassis comes with four high-strength threaded legs(or Hydraulic high leg) the threaded legs installate and adjust is fast and convenient, can be used for work plane leveling.It can make loading and unloading reduce the cost of to improve efficiency.It also can be used as auxiliary support when the track drilling rig is working.

4. Using 48V electric starting diesel engine is reduced the operate's labour intensity greatly.Especially in cold season,when diesel engine start hardly,it will show superiority vastly.

5. The machine is equipped with BW-160 independent mud pump,the pump flow and pressuer are big,the maintenance is convenient,the parts of the machine are convenient to buy all over the country.

Specification
Drilling depth
200m
Maximum opening diameter
75-300mm
Final hole diameter
75mm
Kelly
53/59*4200mm
Drill pipe diameter
50,60mm
Drilling angle
90°~75°
Auxiliary power diesel engine
15/2200kW/r/min
Structural weight/Size
1150kg/2700*950*1770
