Reciprocating Water Well Drilling Rig Mud Pump For Heavy Drilling Equipment
Reciprocating Water Well Drilling Rig Mud Pump For Heavy Drilling Equipment
Reciprocating Water Well Drilling Rig Mud Pump For Heavy Drilling Equipment
Reciprocating Water Well Drilling Rig Mud Pump For Heavy Drilling Equipment
Specifications
Product Name :
Water Well Duplex 10Mpa /Mud Pump For Water Well drilling rig/Drilling Rig Mud Pump
Model Number :
BW250
Application :
Hole drilling
Power Type :
Diesel/Hydraulic/Electric
Material :
Metal / Coil
Flow :
400L/min
Pressure :
10Mpa
Dimension :
1905*1100*1200mm
Liner Diameter :
85mm 65mm
Weight :
720kgs
Structure :
Piston Pump, Single-stage Pump, pneumatic sump pump
Color :
any color, Blue or according to your special request, Black Or Customization, blue or as requirement, We Can Change
Brand Name :
ShiTan
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000Set/Year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard export transportation package
Description
Reciprocating Water Well Drilling Rig Mud Pump For Heavy Drilling Equipment
Product Specifications
Attribute Value
Product Name Water Well Duplex 10Mpa Mud Pump For Water Well drilling rig/Drilling Rig Mud Pump
Model Number BW250
Application Hole drilling
Power Type Diesel/Hydraulic/Electric
Material Metal / Coil
Flow 400L/min
Pressure 10Mpa
Dimension 1905*1100*1200mm
Liner Diameter 85mm 65mm
Weight 720kgs
Structure Piston Pump, Single-stage Pump, pneumatic sump pump
Color Customizable (Blue, Black, or as required)
Product Description
The BW-250 mud pump is a horizontal three cylinder reciprocating single acting piston pump with two cylinder diameters and four speeds. This versatile pump can be adjusted for different displacement and hole depth requirements, suitable for use with 1500 meter drilling rigs and cement slurry grouting applications.
Technical Specifications
Brand Shitan
Reciprocating unit Plunger pump
Driving mode Electric
Conveying medium Sewage pump, impurity pump
Suction diameter 50-90(mm)
Discharge diameter 32-60(mm)
Weight 780(kg)
Voltage 380/660/1140(V)
Power 7.5-45kw
Material Cast steel
Key Features
  • Four gear flow system with large flow regulation range for various drilling needs
  • Bowl shaped self-sealing S-type polyurethane rubber piston with nylon back for extended service life
  • Five dust-proof sealing rings on the pull rod for reliable performance
  • Steel ball inlet/outlet valves with sound reducing rubber pads
  • BY-1 seismic pressure gauge for durability
  • Compact, detachable design for easy maintenance and transportation
Frequently Asked Questions
Are you a manufacturer?
We are a 20-year factory specializing in drilling rigs and related parts.
What are your delivery terms?
EXW, FOB, CFR, CIF
What packaging do you use?
Standard export packaging, wooden cases or iron cases
What are your payment terms?
30% TT deposit, balance before shipment
How do you ship products?
By sea or by air from Tianjin, Qingdao, Shanghai or other required ports
What is your quality control process?
Experienced QC team conducts strict inspection and testing before every shipment

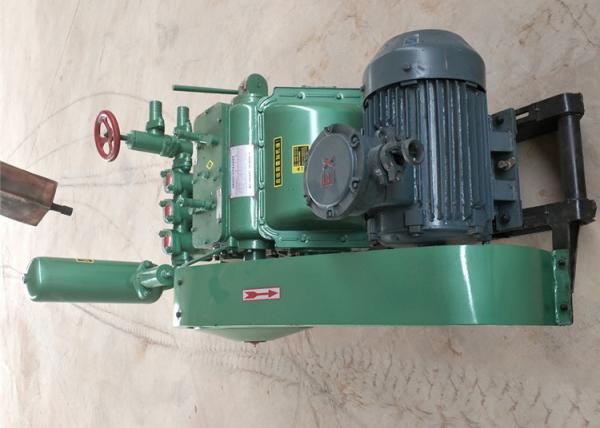

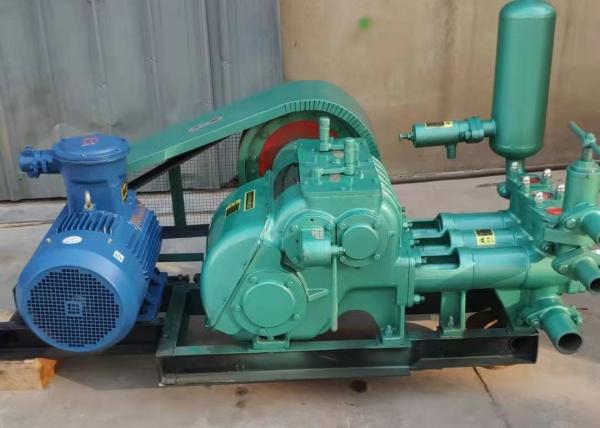

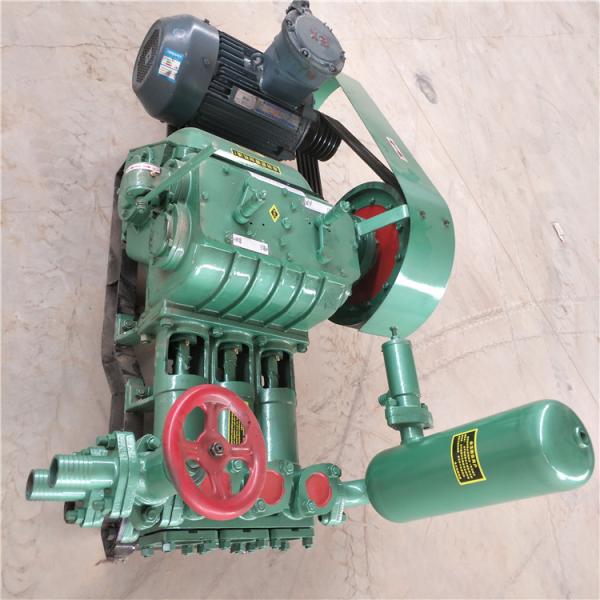

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
