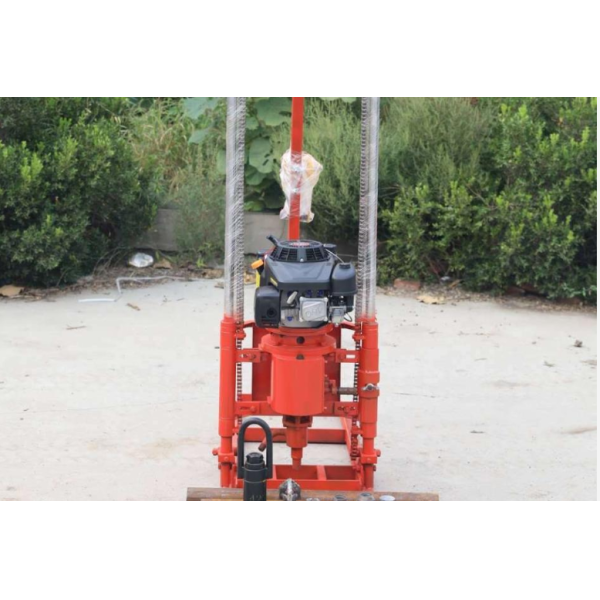

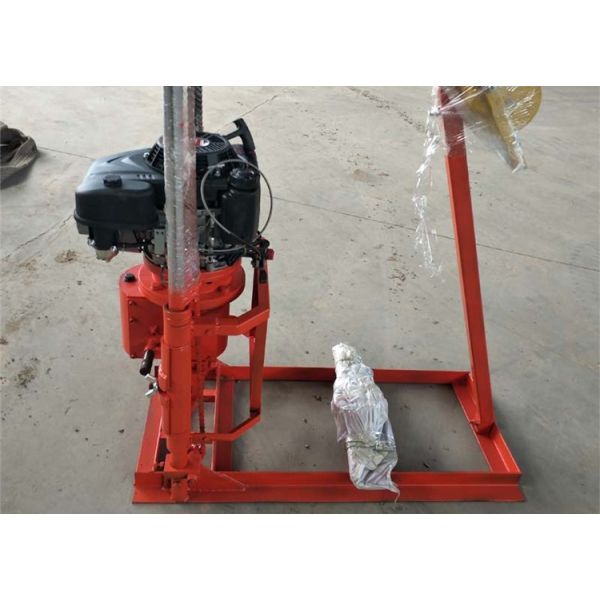

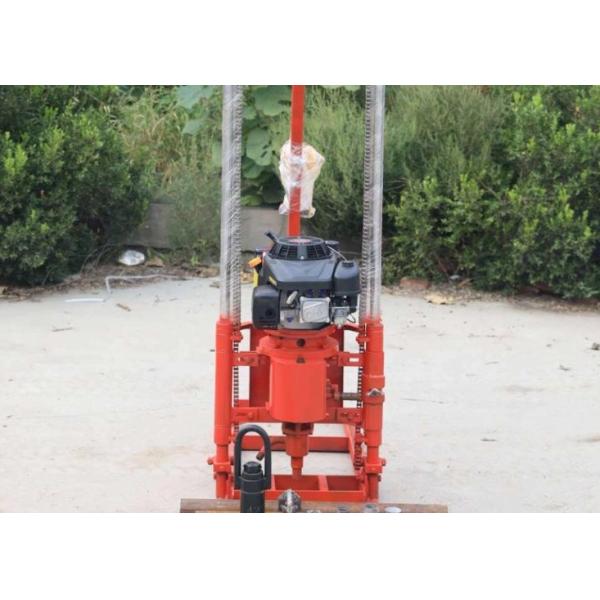

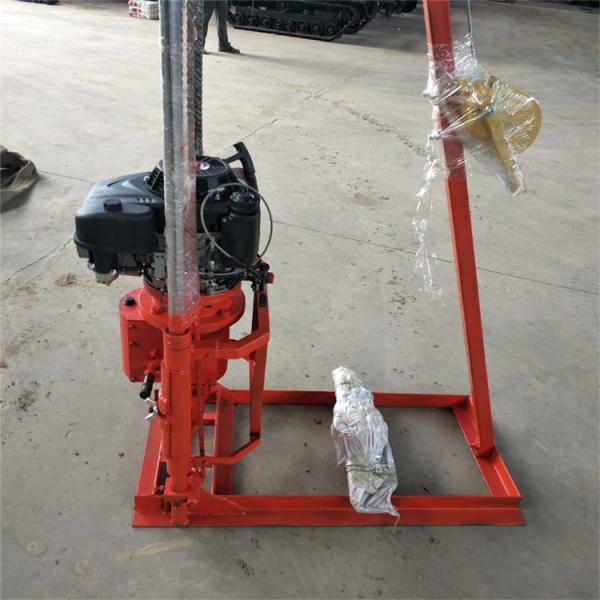

30m Small Well Drilling Rig Sampling ODM
30m Small Well Drilling Rig Sampling ODM
30m Small Well Drilling Rig Sampling ODM
30m Small Well Drilling Rig Sampling ODM
Specifications
Brand Name :
ShiTan
Model Number :
ST-30
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
2000 Sets Per Year
Delivery Time :
Within 7-12 days
Packaging Details :
Wooden Carton
Product Name :
Small Portable Water Well Drill Rig
Application :
Core Sampling,Water Well
Usage :
Water Well,civil construction
Power Type :
Diesel,electric
Dimension(L*W*H) :
customized
Maximum opening diameter :
30m
Borehole inclination :
90~75°
Type :
Rotary Drilling Rig, Core Drilling Rig, Air percussion, anchor drilling machine, anchoring drilling rig
Condition :
New
Color :
Yellow ,Customized
Place origin :
Hebei,China
Description
30m Small Well Drilling Rig Sampling ODM
Product Specifications
Attribute Value
Product Name Small Portable Water Well Drill Rig
Application Core Sampling, Water Well
Usage Water Well, civil construction
Power Type Diesel, electric
Dimension (L*W*H) Customized
Maximum opening diameter 30m
Borehole inclination 90~75°
Type Rotary Drilling Rig, Core Drilling Rig, Air percussion, anchor drilling machine, anchoring drilling rig
Condition New
Color Yellow, Customized
Place of origin Hebei, China
Technical Specifications
Parameter Value
Drilling depth 35m/15m
Open hole diameter 110mm
Drill pipe diameter 33.5mm
Weight 290kg
Dimensions 1510×600×1055mm
Maximum torque 350N*m
Power (Motor) 7.5KW
Power (Diesel) 6.47KW
Tower height 5.6 Meter
Product Advantages
  • Hydraulic feeding mechanism improves drilling efficiency and reduces labor intensity
  • Ball cassette holding mechanism with six side rod allows rod replacement without shutdown
  • Equipped with hole bottom pressure gauge for monitoring drilling status
  • Centered handle for convenient operation
  • Compact structure with small volume and light weight for easy transportation
  • Suitable for both plains and mountain areas
Key Features
Portable sampling drilling rig is a lightweight, multi-purpose mini engineering drilling rig designed for geological surveys in various industries including industrial and civil construction, bridges, railways, highways, and hydropower projects.
The machine can perform multiple functions including drilling guiding holes, advance boreholes, grouting holes, embedded parts, blasting holes, and water wells.
Company Advantages
  • High quality with low price: Direct factory pricing with over 20 years of professional experience in water filtration
  • Multiple delivery options: Strong logistics partnerships ensure fast and safe delivery
  • Customer-first service: 24/7 support with authentic and quick responses to all inquiries

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order

30m Small Well Drilling Rig Sampling ODM 30m Small Well Drilling Rig Sampling ODM 30m Small Well Drilling Rig Sampling ODM
