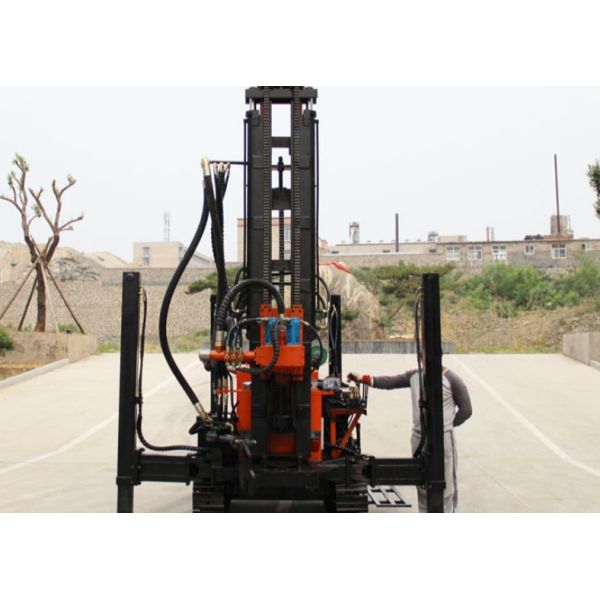

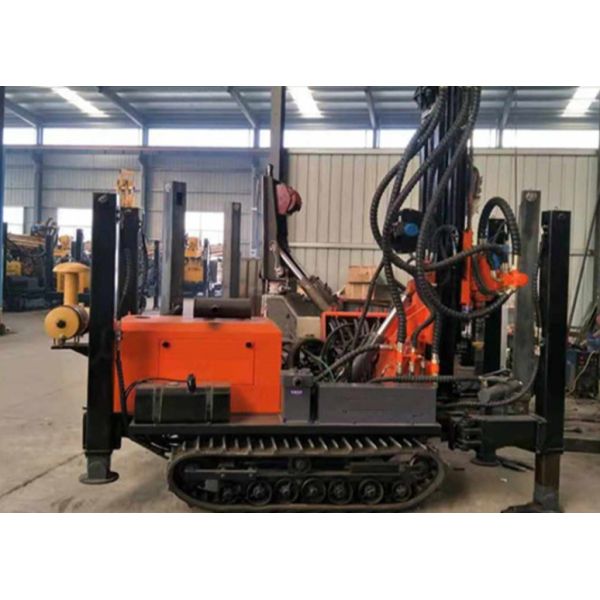

Water Well Rotary Drilling 180m Pneumatic Borewell Machine
Water Well Rotary Drilling 180m Pneumatic Borewell Machine
Water Well Rotary Drilling 180m Pneumatic Borewell Machine
Water Well Rotary Drilling 180m Pneumatic Borewell Machine
Specifications
Brand Name :
ST
Model Number :
ST-180
Certification :
ISO 9001
Place of Origin :
hebei china
MOQ :
1 set
Payment Terms :
Western Union, TT
Supply Ability :
2000sets/month
Delivery Time :
5days
Packaging Details :
Customized
Usage :
Pneumatic Borewell Machine
Weight :
4.5T
Drilling depth :
180 meters
Dimension(L*W*H) :
3800*1500*2200mm
Drilling hole diameter :
140-254mm
One-time advance length :
3m
Walking speed :
2.5km/h
Climbing angles (Max.) :
30
Equipped capacitor :
55KW
Drill pipe diameter :
76/89mm
Application :
Water well drilling rig
Colors :
red ,yelllow
Description
Borehole Drilling Rig Water Well Rotary Drilling Rig 180 Pneumatic Borewell Machine
180m Pneumatic Borewell Machine

ST180multi-function geothermal water well drilling rig machine is a lightweight, high efficiency, multifunctional drilling rig.

ST180 water well has the characteristics of advanced structure, easy to use, high efficiency, reliable, durable etc.It is widely used in drilling water wells, agricultural irrigation well and Geothermal air conditioning hole and other usages of geothermal well hole.

ST180 portable water well drilling rig machine with high efficiency is particularly applicable to mountain area and rock formation water engineering.


Pneumatic Borewell Machine Main Parameters

Model
ST180
Drilling hole diameter
140-254mm
Drilling depth
180m
One-time advance length
3.3m
Walking speed
2.5km/h
Climbing angles (Max.)
30
Equipped capacitor
55kw
Using air pressure
1.7-2.5mpa
Air consumption
17-31m³/min
Drill pipe length
1.5m, 2.0m, 3.0m
Drill pipe diameter
76mm, 89mm
Rig lifting force
12t
Swing speed
45-65rpm
Swing torque
3200-4600(N.m)
Dimension
3800*1500*2200mm
Weight
4500kg

FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.

Water Well Rotary Drilling 180m Pneumatic Borewell MachineWater Well Rotary Drilling 180m Pneumatic Borewell MachineWater Well Rotary Drilling 180m Pneumatic Borewell Machine

Water Well Rotary Drilling 180m Pneumatic Borewell Machine

Water Well Rotary Drilling 180m Pneumatic Borewell Machine
