MachineU > China Products > Machinery > Energy & Mineral Equipment > Mining Machinery > Mining Machine Parts
Coupling Sleeve,semi-bridge and full bridge couplings, rock drilling tools
Coupling Sleeve,semi-bridge and full bridge couplings, rock drilling tools
Coupling Sleeve,semi-bridge and full bridge couplings, rock drilling tools
Coupling Sleeve,semi-bridge and full bridge couplings, rock drilling tools
Coupling Sleeve,semi-bridge and full bridge couplings, rock drilling tools
Coupling Sleeve,semi-bridge and full bridge couplings, rock drilling tools
Specifications
Place of Origin :
China
Brand Name :
Jinke
Certification :
CE,ISO
Model Number :
N/A
MOQ :
N/A
Packaging Details :
Standard Export Delivery Package
Delivery Time :
In stock or 7days
Payment Terms :
T/T
Supply Ability :
Based on Detailed Order
Description

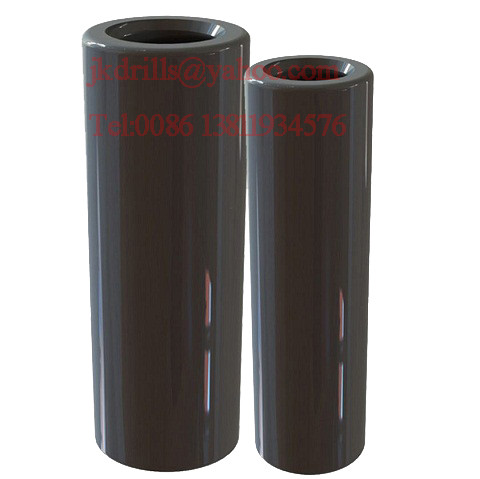

Coupling Sleeve,semi-bridge and full bridge couplings, rock drilling tools


Coupling sleeves, other name is Coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission. Couplings are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. We can manufacture semi-bridge couplings, full bridge coupling sleeves for the percussive tools. Semi-Bridge Coupling sleeve - Small non-threaded bridge in the center - Steel cannot thread past bridge area - Smaller diameter steel end portions fit together in the centre bridge area of the coupling - Semi-bridged couplings are most suited to high torque machines - Most rope and T threaded couplings are semi-bridged Full-Bridge Coupling sleeve - Eliminates the potential for the coupling to creep along the threaded joints - Typically used in surface applications - Better uncoupling characteristics and tend to maintain tighter joints - Less chance of jamming - Best suited to machines equipped with independent rotation.

After special heat treatment, Pro-drill’s Coupling sleeve ensuring the ends touch for efficient energy transmission, suitable for model powerful top hammers and drifter from Atlas Copco, Sandvik, Ingersoll Rand,Furukawa and Boat longyear etc.

Thread size: R22, R25, R28, R32, R38, T38,T45, T51; Coupling sleeve design: full bridge coupling sleeve, semi-bridge coupling sleeve.
