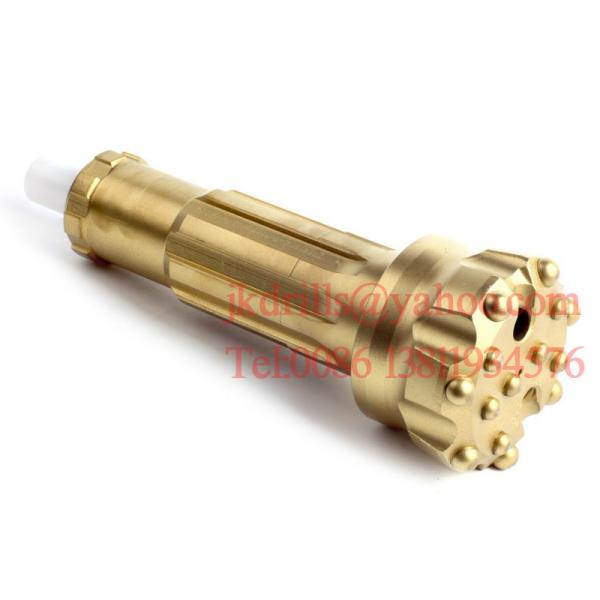

Downhole Drilling Tools / DTH Drill Button Hammer Bits
Downhole Drilling Tools / DTH Drill Button Hammer Bits
Downhole Drilling Tools / DTH Drill Button Hammer Bits
Downhole Drilling Tools / DTH Drill Button Hammer Bits
Downhole Drilling Tools / DTH Drill Button Hammer Bits
Downhole Drilling Tools / DTH Drill Button Hammer Bits
Specifications
Place of Origin :
China
Brand Name :
Jinke
Certification :
CE,ISO
Model Number :
N/A
MOQ :
N/A
Packaging Details :
Standard Export Delivery Package
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
Based on Detailed Order
Description

Downhole Drilling Tools / DTH Drill Button Hammer Bits

Product features:


DTH Drill Button Bits are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special “stress relief” processes ensure consistent performance.
DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.

We can design and manufacture according to customer's requirement of the down the hole bits Diameter,No. air holes,carbide button shape and the face shape.

Bit Shank

Bit Diameter.(mm)

CIR-Series Low Air pressure DTH Bits

CIR65,HR65

65,68,75mm

CIR80,HR80

83,85mm

CIR90,HR90

85,90,110mm

CIR110,HR110

110,115,120,135mm

HR150,

155,160,165,170,180,210,220mm

1''-2''Middle Air pressure DTH Bits

BR1,BR2,HD25

64,70,76,80,82,90mm

3'' High Air pressure DTH Bits

COP32,BR3,HD35,IR3.5,COP34,QL30,M30

85,90,95,100,105mm

4'' High Air pressure DTH Bits

HD45,DHD340A,COP44,SD4,QL40,M40,HM4

105,110,115,120,127,130,133mm

5'' High Air pressure DTH Bits

HD55,DHD350,COP54,SD5,QL50,M50,HM5

130,135,140,146,152,165mm

6'' High Air pressure DTH Bits

HD65,DHD360,COP64,SD6,QL60,M60,HM6

152,155,165,171,190,203mm

8'' High Air pressure DTH Bits

HD85,DHD380,COP84,SD8,QL80,M80,HM8

200,203,216,222,226,229,,241,254,270,305mm

10'' High Air pressure DTH Bits

SD10,NUMA100

254,305,311,318,330mm

12'' High Air pressure DTH Bits

DHD1120,SD12,NUMA120,NUMA125

305,311,330,356,381mm
