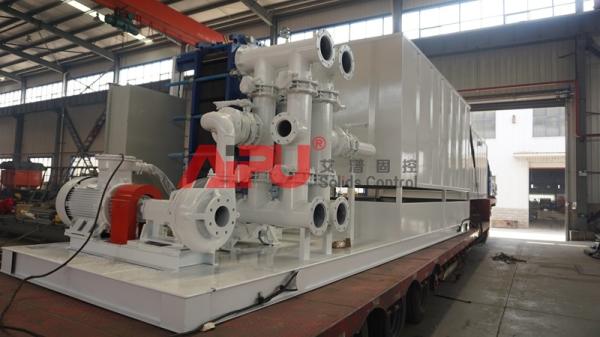

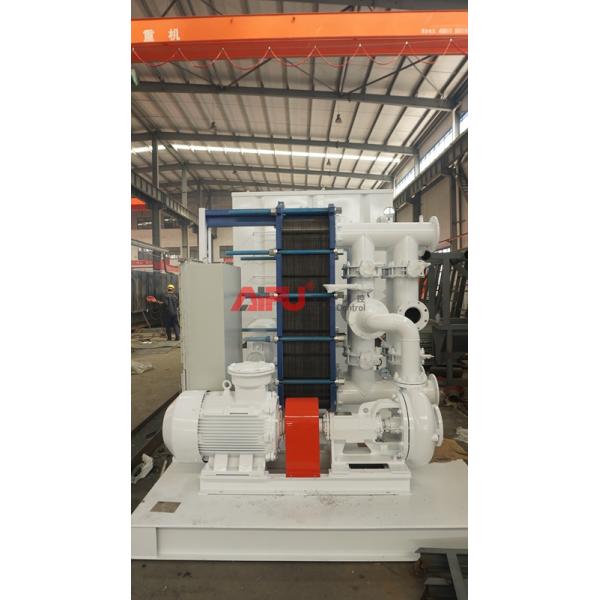

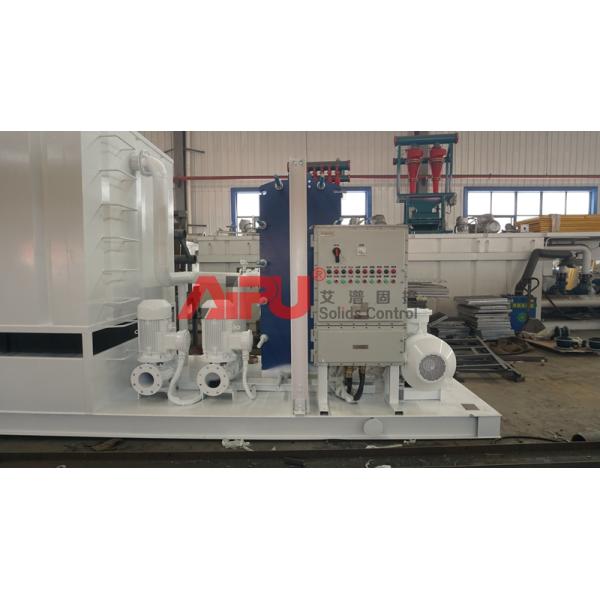

APMCS Mud Cooling System for all HPHT and geothermal drilling areas

The APMCS Mud Cooling System is the industry standard for mud cooling needs in all HPHT and geothermal drilling areas of the world – both onshore and offshore. This proprietary mud cooler design incorporates the power and efficiency of a closed circuit cooling tower with the robust versatility of offshore ISO container – thus enhancing the mobility and flexibility of the drilling fluid temperature control system. Many of our customers have realized significant savings by sharing their APMCS mud cooling system across onshore and offshore drilling programs within the same region.

Aipu solids control design and manufacture a complete solids control system/drilling mud system for oil & gas drilling, now we need a mud cooling system in our design, to make it more user-friendly. Usually, we call the mud cooling system as mud cooler.

The Aim of Drilling Mud Cooling System

• Crew safety
• Reduction of mud temperature in return lines especially important in Oil-based systems to be maintained below flashpoint.
• Reduction of mud temperature reduces the risk of fire, blowouts, and helps provide safer drilling operation/ environment.

The Benefit and Feature of Drilling Mud Cooling System

1. Reduction of temperature while circulating and drilling helps to maintain rheological properties of the mud and a reduction in the use of additives.
2. Rugged design for months of maintenance-free operation – even without a dedicated operator.
3. Increased wellbore stability, reduction of corrosion of the drill pipe and downhole tools, therefore a reduction of metal debris in the fluid.
4. Excellent heat transfer efficiencies over the widest flow rates.
5. Proven reliability over thousands of installations.
6. Engineered for all drilling fluids (> 20 ppg fluid & > 20 mm diameter solids).
7. Less impact on the performance of downhole motors, especially important when drilling near the reservoir in HP/HT wells.
8. Increased transportation of drilling cuttings back to the surface.

Specifications

The above Thermal Capacity can be increased or decreased to suit customers’ requirements

For any question or demand, please feel free to contact AIPU solids. You will get a free offer on an optimal solution, you will get a professional proposal very soon.
