2 Layers API RP 13C API 20 SS316L Shaker Screens
2 Layers API RP 13C API 20 SS316L Shaker Screens
2 Layers API RP 13C API 20 SS316L Shaker Screens
2 Layers API RP 13C API 20 SS316L Shaker Screens
2 Layers API RP 13C API 20 SS316L Shaker Screens
2 Layers API RP 13C API 20 SS316L Shaker Screens
Specifications
Brand Name :
TR Solids Control
Model Number :
TRHY
Certification :
API RP 13 C
Place of Origin :
Xi'an,China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
20000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Carton box and wooden case
Dimension :
1070 x 570 x 22 mm
Mesh :
API 20-API 325
Layers :
2-3 layers
Weight :
9 kg
Series :
DX, DF, HP optional
Material :
S.S316L
Description

Shaker Screens for HYP Series Shaker

Product Overview

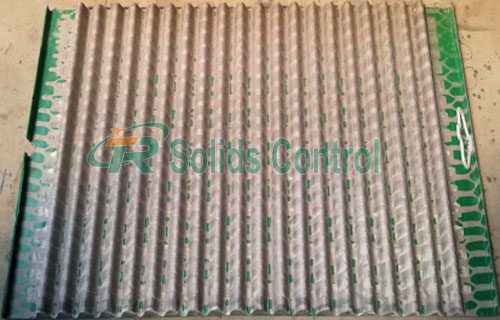

The screen surface of wave shaker screen is the unique wavy, installation type can be hookstrip or steel frame wedge pressuring device. The effective filter area of wave screen can be 125% to 150% of the same mode flat screen, the treating capacity is increased. Our manufacture can manufacture many variety of specifications wave screen according to customers requirements.

Competitive Advantges

  • Stainless steel 304/316 wire mesh for longevity.
  • Increase shaker capacity and reduce muds loss.
  • Non-blanked screening area increased by more than 20%.
  • Scientific & reasonable cost control system for competitive price.
  • API RP 13C (ISO 13501) compliant.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Warranty Period: 1 year.
  • Working Life: 400–450 hours.

Performance Parameters of Replacement HYP Shaker Screen

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns)

Layer No.

 Non-blank area (sq.ft)
DH-A325 DX API 325 0.39 44 2/3 5.66
DH-A270 DX API 270 0.67 57 2/3 5.66
DH-A230 DX API 230 0.71 68 2/3 5.66
DH-A200 DX API 200 1.32 73 2/3 5.66
DH-A170 DX API 170 1.34 83 2/3 5.66
DH-A140 DX API 140 1.89 101 2/3 5.66
DH-A120 DX API 120 1.89 134 2/3 5.66
DH-A100 DX API 100 2.66 164 2/3 5.66
DH-A80 DX API 80 2.76 193 2/3 5.66
DH-A70 DX API 70 3.33 203 2/3 5.66
DH-A60 DX API 60 4.1 268 2/3 5.66
DH-A50 DX API 50 5.17 285 2/3 5.66
DH-A40 DX API 40 8.64 439 2/3 5.66
DH-A35 DX API 35 9.69 538 2/3 5.66
DH-A20 DX API 20 10.88 809 2/3 5.66

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

2 Layers API RP 13C API 20 SS316L Shaker Screens

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
