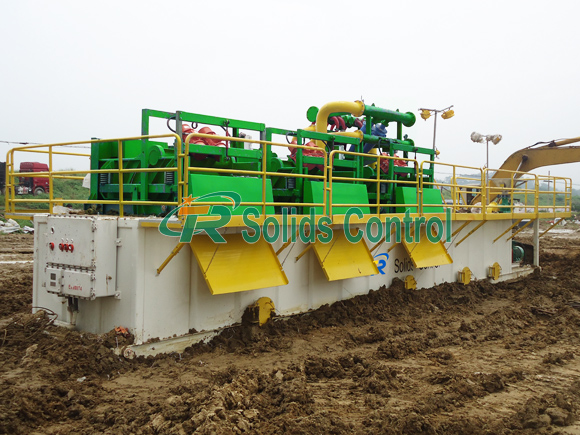

Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001
Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001
Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001
Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001
Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001
Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001
Specifications
Brand Name :
TR Solids Control
Model Number :
TRZJ70
Certification :
ISO9001:2008
Place of Origin :
Xi'an,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 Set / Month
Delivery Time :
30 days after receiving 30% deposit
Packaging Details :
Wooden case or by container
Mud Tank :
≥270m3/h
Vacuum Degasser :
≥360m3/h
Desilter :
≥320m3/h
High Speed Centrifuge :
≥40m3/h
Shear Pump :
≥120m3/h
Shale Shaker :
≥360m3/h
Desander :
≥320m3/h
Middle Speed :
≥50m3/h
Jet Mud Mixer :
≥300m3/h
Charging Pump :
≥240m3/h
Description

Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001

Brief Introduction:

TR Oil Drilling Mud System for Oil or HDD is developed, designed and manufactured to meet trenchless technology requirements at home and abroad and is applied in purification treatment of mud returned from underground during horizontal directional drilling process. Cuttings with big particle sizes are separated by shale shaker, mud cleanerand other solids control equipment. Mud materials required are added and evenly mixed for circulation via jet mud mixer to meet performance requirements for reuse.


TR can also design and manufacture of directional drilling purification system, shield mud purification system, gas layer exploration mud purification system, the mining mud purification system, channel dredging mud purification system, such as series of projects. Welcome your inquiry at any time!


Benefits of TR Oil Drilling Mud System:

  1. Trailer mounted mud system for flexible utilizing need.
  2. Harmonious and functional mud tank layout for practical application.
  3. Compact structure system for space limited area.
  4. The polyurethane screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance.
  5. Energy saving efficiency is significant since the power consumption of the vibrating motor is low.
  6. Winterization frame and heating manifold installed with mud system to keep mud performance in extremely cold area.

Technical Parameters of TR Oil Drilling Mud System:

Configure Equipment ZJ70 ZJ50 ZJ40 ZJ30 ZJ20 ZJ10
Mud Tank ≥270m³/h ≥200m³/h ≥180m³/h ≥160m³/h ≥160m³/h ≥80m³/h
Storing Tank ≥160m³/h ≥120m³/h ≥80m³/h ≥80m³/h × ×
Shale Shaker ≥360m³/h ≥280m³/h ≥240m³/h ≥180m³/h ≥140m³/h ≥80m³/h
Vacuum Degasser 360m³/h 300m³/h 240m³/h √ √ ×
Desander ≥320m³/h ≥240m³/h ≥200m³/h ≥180m³/h ≥120m³/h √
Desilter ≥320m³/h ≥240m³/h ≥200m³/h √ × ×
Middle Speed Centrifuge 50m³/h 50m³/h 40m³/h √ √ ×
High Speed Centrifuge 40m³/h 40m³/h √ × × ×
Jet Mud Mixer ≥300m³/h ≥240m³/h ≥200m³/h ≥180m³/h ≥120m³/h ≥80m³/h
Shear Pump ≥120m³/h ≥120m³/h ≥120m³/h ≥120m³/h ≥100m³/h ×
Charging Pump ≥240m³/h ≥200m³/h ≥180m³/h ≥150m³/h ≥100m³/h ×












Compact Structure Drilling Mud System Energy Saving Easy Operation ISO9001

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet:
Customer's satisfaction is the highest pursuit of TR Solids Control.
