Specifications
Brand Name :
TR Solids Control
Model Number :
TRSLH150-50
Certification :
API Certificate, ISO Certificate
Place of Origin :
Xi'an,China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
5000 Sets Per Month
Delivery Time :
15 days after deposit
Packaging Details :
Iron or wooden case
Capacity :
240m3/h
Matching Pump :
TRSB8*6-13J
Motor Power :
55kw
Work Pressure :
0.25 to 0.4Mpa
Inlet Diameter :
150mm
Nozzle Diameter :
50mm
Hopper Dimension :
750*750mm
Burden Speed :
<100kg/min
Weight :
1600kg
Dimension :
2200*1700*1200mm
Description

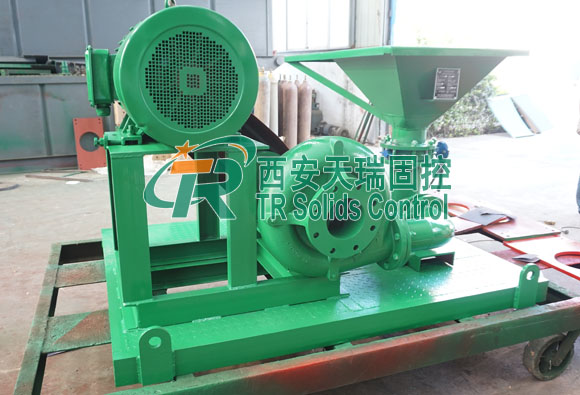

55KW Oil Drilling Rig Equipment Jet Mud Mixer with Short Delivery

Main Introduction

Jet Mud Mixer is a kind of equipment for adding and mixing drilling fluids. Its effect is obvious to use along with shear pump. As an necessary equipment in solids control system, its main function is to change the viscosity, density, and dehydration of drilling fluids. Jet mud mixer is needed on the condition that making bentonite, chemical products and barite with clear water into drilling fluids which has specific property, or adding some additive in existing drilling fluids to change its property.

TRSLH series Jet Mud Mixer is used to concoct the drilling fluids and to change its density and viscosity. This device can satisfy the fluid weighting & mixing of solids control system used for 1500m-9000m drilling. TR Solids Control is a top manufacturer in China specialized in mud solids control equipment and systems design, manufacture, and sales.

Main Strengths of TRSLH Jet Mud Mixer

  1. It is safe and stable and can be moved conveniently.
  2. The unit includes one sand pump, one jet mixing hopper.
  3. It can be made Twin Jet Mud Mixers according to the user requirements.
  4. The effect is more prominent matching with Shear Pump.
  5. It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
Technical Parameters of TRSLH Jet Mud Mixer

Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm

55KW Oil Drilling Rig Equipment Solids Control Equipment 1600kg Weight

TR Solids Control has a complete line of mud mixing equipment designed to assist operators with the greatest available efficiency in blending. Bentonite, polymers and other powder additives have traditionally been added to assist in achieving the properties needed from drilling mud such as viscosity for hole cleaning, water loss control and filter cake build up. On weighted mud applications, the ability to handle Barite during potential blow-out applications is even more important. If you want to know more about our product, welcome to contact TR sales team.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
