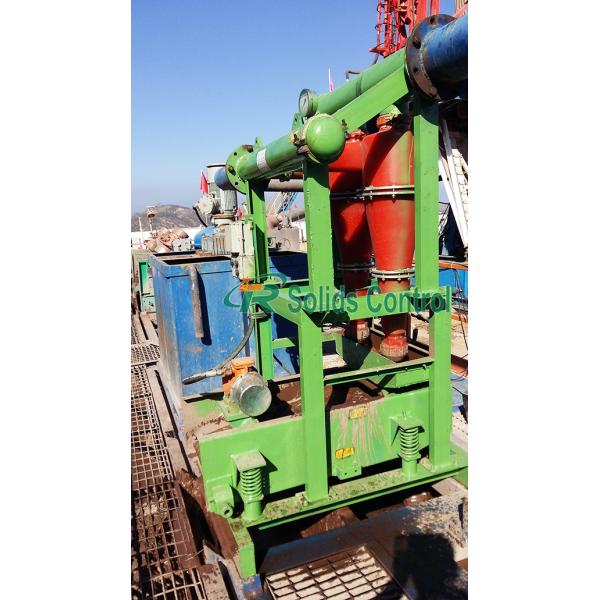

High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate
High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate
High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate
High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate
High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate
High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate
Specifications
Brand Name :
TR Solids Control
Model Number :
TRCS250-2S
Certification :
API certificate, ISO9001 certificate
Place of Origin :
Xi'an,China
MOQ :
1 Pc
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200 Pcs / Month
Delivery Time :
Within 20 days after deposit
Packaging Details :
Pallet or wooden case
Capacity :
200 m3/h
Hydrocyclone Specs :
10"
Hydrocyclone Qty :
2pcs
Working pressure :
0.25-0.4Mpa
Inlet diameter :
DN150mm
Outlet diameter :
DN200mm
Separation point :
45um-75um
Bottom shaker :
TRZS60
Weight :
760kg
Dimension :
1510*1360*2250mm
Description

High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate

Main Profile

Mud Desander is the secondary solids control device for drilling fluids,it is mainly used to remove harmful solid particles with a particle size of 47-74μm in the drilling fluid.Using the principle of centrifugal sedimentation,the suspended particles can be separated from the liquid by centrifugal acceleration. As a solids control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74µm in drilling liquid. Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.

Mud desander is important equipment for drilling liquid solid control. It is mainly used for the second phase purification of drilling liquid. It removes nocuous solid, stabilizes drilling liquid properties and improves drilling efficiency. The hydrodynamic cyclone of the desander is made of wear resistant cast iron. It is reliable, effective and serves long. The content of sand after the desander is controlled below 0.15%.

Main Benefits of Our Mud Desander

  1. Internation brand vibrating motor, Martin or Oli Motor.
  2. Compact design with small footprint.
  3. Pure polyurethane or high-chromium for hydrocyclones.
  4. Replaceable hydrocyclones.
  5. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.
  6. Flexible fast connection are available for user assembly.
  7. Clamp connection for hydrocyclones installation, easy to dismantle and replace.

Technical Data of TRCS Series mud desander

Model TRCS200-1S/2S TRCS250-1S/2S TRCS250-3S TRCS300-1S/2S
Capacity 60m3/120m3/h 100m3/200m3/h 300m3/h 120m3/240m3/h
Cyclone Specs 8” 10” 10” 12”
Cyclone Qty 1nos/2nos 1nos/2nos 3nos 1nos/2nos
Working Pressure 0.25-0.4Mpa
Inlet Size DN125mm DN150mm DN150mm DN150mm
Outlet Size DN150mm DN200mm DN200mm DN200mm
Separation Point 45μm -75μm
Bottom Shaker TRTS60 TRTS60 TRZS752 TRZS752
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 1835*1230*1810mm
Weight 570kg/620kg 670kg/760kg 1300kg 1380kg
Remark All desander could be customized without bottom shaker.

High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate

Main Applications

Our TR Mud Desander is currently used in Drilling Waste Management, oil & gas drilling, trenchless HDD, city bored piling, tunneling construction, mining, Oil Mud Seperation, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, environment protection, Water Drilling etc. If you have any inquiry of mud desander, welcome to contact with us. Thanks.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
