SK666 Micro Pile Drilling Rig with 115-500mm Hole Diameter 76/89/102/114 Drilling Rod Specification and 4/5/6/8/10/12 Hammer for High-Precision Engineering Drilling
SK666 Micro Pile Drilling Rig with 115-500mm Hole Diameter 76/89/102/114 Drilling Rod Specification and 4/5/6/8/10/12 Hammer for High-Precision Engineering Drilling
Specifications
Description

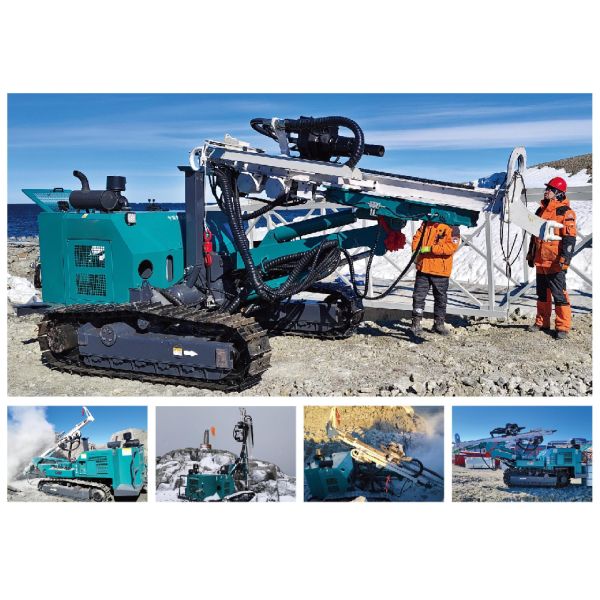

The SK666 Micro Pile Driling Rig is a versatile engineering drilling machine
that combines high efficiency, flexibility, and stability. lt is specifically
designed for large-diameter, high-precision drilling operations.Widely used
in micro pile, photovoltaic hole, anchor bolt hole, casing hole, and blasting
hole construction, it offers excellent geological adaptability and operational
convenience. significantly enhancing construction efficiency and hole quality.
SK666 Micro Pile Drilling Rig with 115-500mm Hole Diameter 76/89/102/114 Drilling Rod Specification and 4/5/6/8/10/12 Hammer for High-Precision Engineering Drilling


Hole Diameter: 115-500mm
Drilling Rod Specification: 76/89/102/114
Hammer: 4"/5"/6"/8"/10"/12"
Crawler Outer Width: 2300mm
Chassis Levelling Angle: ±13°
Climbing Ability: <25°
Travel Speed: 3km/h
Standard Equipment: Upper operation, foot pedal and drill pipe holder
Propulsion Length: 4100mm
Advancing Compensation: 1260mm
Propulsion Speed: 0.5m/s
Propulsion: 1.2T
Maximum Lifting Force: 4T
Propulsion Beam Front Swing Angle: ± 30°
Power Head Rated Speed: 40/80r/min two-stage
Maximum Rotation Torque: 4000/8500Nm
Engine: Yuchai national stage lll emission standards
Rated Power: 73.5kw @2200r/min
Recommended Operating Speed: 1500r/min
Transport dimensions (LxWxH): 7000×2300×2760mm
Weight: 8100kg (Excluding drilling tools)
