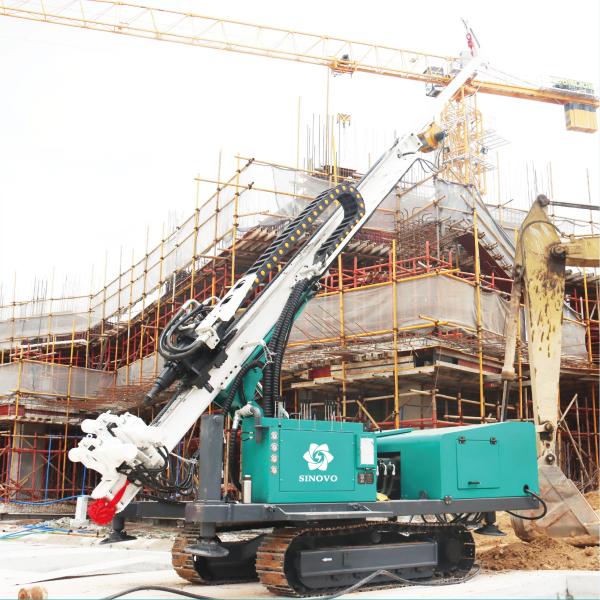

SK800 Multi-functional Anchor Driling Rig
SK800 Multi-functional Anchor Driling Rig
Specifications
Description

SK800 Multi-functional Anchor Driling Rig: water and gas are dual-use, one machine is multi-purpose.It is suitable for anti-floating anchor, anchor cable anchoring, slope support, high-pressure rotary spraying,tunnel grouting, submerged hole into the rock, pit casing, core driing, miniature piles, steel pipe piles and so on.

SK800 Multi-functional Anchor Driling Rig

Main specification as following:
Hole Diameter 90-500 mm
Hole Depth 200 m
Rod Diameter Ф76/89/102/114 mm
Hammer 3''-20''
Pipe Casing 101-219 mm
High-pressure Rotary Spray single/double tube
Single Propulsion Length 3600 mm
Horizontal Drilling Height 2750 mm
Gripper Diameter 200 mm
Advancing Compensation 1260 mm
Maximum Lifting Force 6 T
Maximum Propulsion 3.3 T
Maximum Lifting Speed 29 m/min
Maximum Propulsion Speed 53 m/min
Rotary Motor Left And Right 180°
Electric Motor Power 55+18.5 kw
Input Voltage 380 v
Ground Clearance 335 mm
Weight 7.9 T
Transport dimensions (LxWxH) 6.3x2.2x2.6 m
Power Head Output Speed 0-170 r/min
Power Head Output Torque 9000 N.m
