Specifications
Brand Name :
KonDaSin
Model Number :
KDD155
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
Contact us
Supply Ability :
20 Set/Sets per Month
Delivery Time :
15 days
Packaging Details :
Wooden box packing
Name :

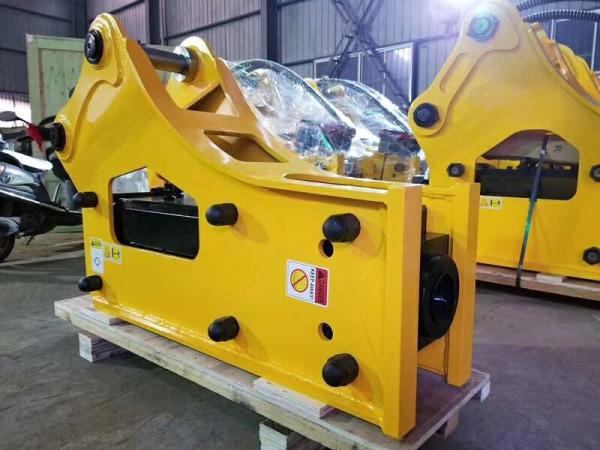

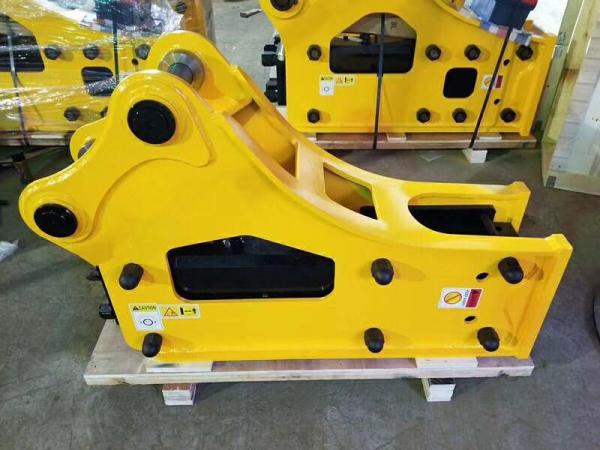

Excavator hydraulic hammer breaker
Application :
Excavator engineering tools
Weight of chisel :
182 kg
Length of chisel :
1500 mm
Diameter of chisel :
155 mm
Part name :
Chisel, Piston, Bush, Seal kits, Charging kit
Description

Rock Drill Excavator Attachment Super Crush Performance High Work Efficiency
Compact Excavator Attachments High Performance 1500 Mm Chisel Length

Hydraulic breaker adopts scientific structural design, selects special high quality steel, assembles world-class production and processing equipment, exquisite heat treatment and grinding technology, strict quality management,longer service life, more powerful blow.

The power source of the hydraulic breaker is the pressure oil provided by the excavator or the pumping station of the loader and the rock breaker can hit stones and rocks more effectively during construction efficiency.

With superior crushing performance, excellent durability is the best gurantee of all-weather operation capability.

The innovative low-noise design meets the environmental protection requirements of various countries in the world and is applicable to road construction, house demolition subway and tunnel construction in cities.

This mechanism can effectively regulate the flow from excavators or power sources, so that the required impact force and frequency can be adjusted according to the rock conditions. It can be directly adjusted on the crushing hammer. It is simple, easy, convenient and fast, and can be directly completed by the operator. Many other brands need to be regulated on excavators or loaders.

It has the best matching effect with the main engine, makes rational use of the highest output energy, saves energy and achieves the highest work efficiency.

Moil Point Chisel

Blunt Chisel

Flat Chisel

Conical Chisel

1. General use with

demolition work and in

quarriers

2. Breaking up stag in

steel mills

3. Demolishing founda-tions

4.Roadway drivage and

roadway

shots in mining

1. Crushing large rock piec-esin quarries

2. Crushing slag

3. Group compression

1. General use with additional cutting cation

2. Drawing pits in rocky subsoil

3. Separating rock slabs

1. General demolition work where penetrative breaking is reuired

Compact Excavator Attachments High Performance 1500 Mm Chisel Length

Model

silenced

Operating Weight

(kg/lbs)

Max Oil(bar/lbs) Drive Oil(L/min)

Working

Oil Pressure

(Bar/psi)

Weight of chisel(kg) Length of chisel(mm) Diameter of chisel(mm

Impact Rate

(bpm)

Impact power(kg.m)

Excavator Weight

(ton)

KDD68 320/705 170/2465 30-60 90-130 1377-1885 18 700 68 550-950 74 4-6
KDD75 430/950 170/2465 40-70 100-130 1422-1885 23 710 75 550-950 100 6-9
KDD100 870/1920 190/2755 80-110 150-170 2175-2465 54 1000 100 450-700 149 9-16
KDD135 1560/3037 210/3045 120-150 160-180 2320-2610 115 1300 135 400-700 238 18-25
KDD140 1830/4038 210/3045 120-180 160-180 2320-2610 126 1300 140 350-600 459 18-25
KDD155 2650/5840 240/3480 190-250 170-190 2465-2755 182 1500 155 300-400 704 28-35
KDD165 2790/6155 240/3480 200-260 170-190 2465-2755 205 1600 165 280-370 746 33-45
KDD175 2995/6589 240/3480 200-260 160-180 2465-2755 247 1600 175 200-320 846 45-55

Compact Excavator Attachments High Performance 1500 Mm Chisel Length

1. Good quality excavator parts.
2. Higher working efficiency.
3. Reduce the maintenance costs of other engine parts.
4. Longer equipment life.
5. Higher returns.

6.Suitable excavator:DOOSAN, SANY, KOBELCO, CAT, KOMATSU, HITACH, VOLVO, HYUNDAI etc.

Compact Excavator Attachments High Performance 1500 Mm Chisel Length

Applications in cleaning the floating stones and the soil in the rock gaps in the role of excavating the foundation of the building.

Compact Excavator Attachments High Performance 1500 Mm Chisel Length
