Double Cut Conical 16Mn Rock Auger Bjtuff Drilling Tools
Double Cut Conical 16Mn Rock Auger Bjtuff Drilling Tools
Specifications
Brand Name :
BJTUFF
Model Number :
300-3000mm or as required
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Piece
Price :
Prices are determined by quantity and model of product
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300 Unit/Units per Month
Delivery Time :
3-5 days after payment
Packaging Details :
Standard export package -Wood case outside, plastic cases inside.
Material :
16Mn or GB-Q355B
Kelly Box size :
200*200mm as usual or as your required
Product name :
Conical Rock Auger
Type :
Rotary Drilling
After-sales service provided :
Video technical support,Online support
Color :
any color
Description

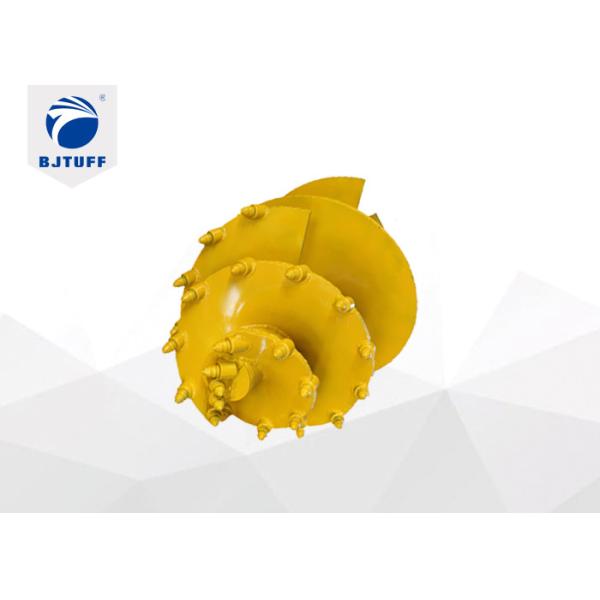

BJTUFF Drilling Tools Double Cut Conical Rock Auger

Feature:

1. Location by pilot,conical structure drilling into rock ;

2. Double cutter bearing uniform force, can avoid inclined hole ;

3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;

Model List
Cutting Dia. Spiral HIT. Spiral Pitch Shell THK Spiral OD. Weight
φ600 1100 600+400 20+30 550 535
φ800 1500 600+400 20+30 750 750
φ900 1500 600+500 20+30 850 820
φ1000 1500 600 20+30 950 950
φ1200 1500 600 30+30 1150 1050
φ1500 1500 600 30+30 1450 1450
φ1600 1500 600 30+30 1550 1650
φ1800 1500 600 30+30 1750 1950
φ2000 1500 600 40+40 1950 2300
Remark:all measurements in millimeters (mm); weight in kilograms(kg);

Auger types and appliaction:

1. Single cut / double cut concial rock auger :

Main Application:

Medium to strong rock (15-60Mpa);

Features:

Sturdy and wearable forging pilot for accurate positioning;
Hard facipsstrips on flights for wear protection.

2. Single cut / double cut straight rock auger:

Main Application:

Very dense sand and gravel,weak rock (<5Mpa)

Features:

Sturdy and wearable forging pilot for accurate positioning;
Hard facipsstrips on flights for wear protection.

Customizable Items:

1. Spiral HIT. Custom : design as demand, prolonging the spiral height can increase of efficiency by drilling more.

2. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;

3. Teeth Custom : Equipped bullet teeth or flat teeth according to different working condition;

4. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;

Package:

Packaging details for BJTUFF drilling auger :
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.

Company advantage:

Beijing Tuff Equipment and Technology CO.,LTD. ,research construction method and ability of kelly bar and driling tools ,offer one step solution for customers in foudations constrction field.

1- We purchase top quality raw materials from leading raw-steel factory.

2- Our drilling tools can be customized depending on kinds of rigs and site conditions.

3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
