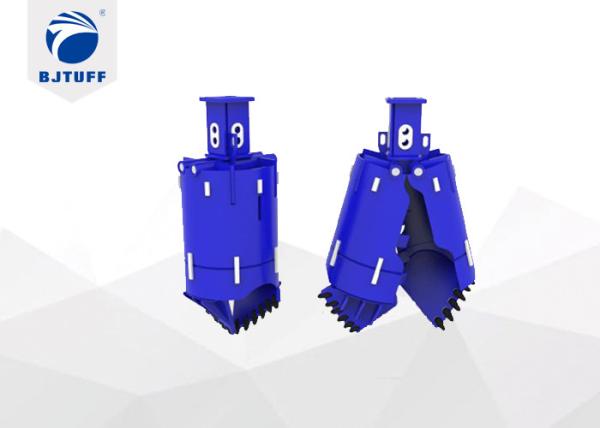

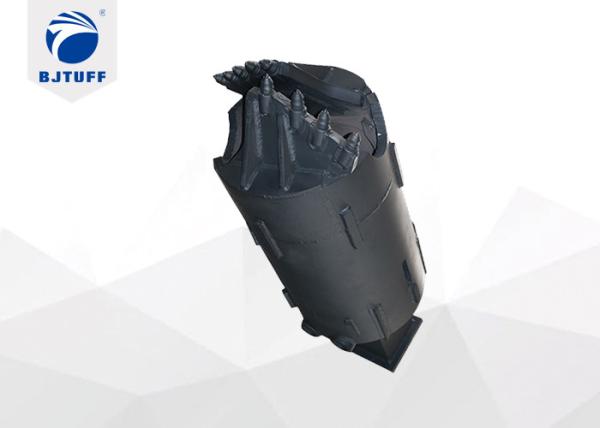

1200mm Open Type Rock Boring Bucket 130*130 150*150 200*200 Kelly Box
1200mm Open Type Rock Boring Bucket 130*130 150*150 200*200 Kelly Box
1200mm Open Type Rock Boring Bucket 130*130 150*150 200*200 Kelly Box
1200mm Open Type Rock Boring Bucket 130*130 150*150 200*200 Kelly Box
Specifications
Brand Name :
BJTUFF
Model Number :
1200mm
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiated
Supply Ability :
200 Pieces/30 days
Delivery Time :
5-8 work days
Packaging Details :
Plastic cases .
Teeth Type :
Bullet Teeth
Kelly Box :
130*130, 150*150,200*200 etc
Application :
Rotary Drilling Rig
Process :
Coated Sand Casting
Condition :
New
Product Name :
Drilling Bucxlet
Color :
Black Or As Required
Material :
MN-Q345B
Description

High Quality Boring Tools Rock Drilling Bucket With Open Type Body

Feature

1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；

2. Super strength structure for shell,guide plate etc, increase the life cycle of bucket; Guide strips 3.arranged on the surface of bucket can avoid drilling tool sucked by the pressure；

4. Applicable layers: clay , silt , highly weathered rock；

Customizable Items

1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.

2. Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;

3. Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150,200*200 etc;

Cutting Dia. Shell HIT. Shell OD. Shell THK.

Stiffening

Ring THK.

Stiffening

Ring HIT.

 Teeth No. Weight
φ600 1000 520 30 40 300 7 805
φ800 1200 720 30 40 300 9 1238
φ900 1200 820 30 40 300 10 1500
φ1000 1200 920 30 40 300 11 1700
φ1200 1200 1120 30 40 300 13 2140
Remark : All measurements are in millimeters, weight in kilograms.
