Y26 Hand Held Rock Drill Wear Resistant For Mining Rock Drilling
Y26 Hand Held Rock Drill Wear Resistant For Mining Rock Drilling
Y26 Hand Held Rock Drill Wear Resistant For Mining Rock Drilling
Y26 Hand Held Rock Drill Wear Resistant For Mining Rock Drilling
Y26 Hand Held Rock Drill Wear Resistant For Mining Rock Drilling
Y26 Hand Held Rock Drill Wear Resistant For Mining Rock Drilling
Specifications
Brand Name :
HLDRILL
Place of Origin :
CHINA
Certification :
ISO9001
MOQ :
10PCS
Price :
Please contact us
Payment Terms :
T/T
Supply Ability :
3000 per month
Delivery Time :
7-15 days
Packaging Details :
Wooden Boxes, Cardboard Boxes
Product Name :
Y26 Handheld Rock Drill
Product Model :
Y26
Product Type :
Handheld Rock Drill
Power Source :
Pneumatic (Wind-driven)
Structural Features :
Handheld operation, compact structure, moderate weight
Application Scenarios :
Mining rock drilling, rock excavation, tunnel boring, rock drilling
Performance Characteristics :
Powerful impact, stable speed, durable and reliable
Product Advantages :
High efficiency, easy maintenance, strong adaptability
Description
Y26 Hand Held Rock Drill
Y26 hand held rock drill is specifically designed for rock drilling applications, offering superior drilling capabilities and versatility. Equipped with a pneumatic mechanism, this jack hammer harnesses compressed air to deliver powerful blows that effectively break through solid rock surfaces.
Key Features
  • Reduces downtime and maintenance costs
  • Exceptional resistance to wear and tear
  • Portable design for ease of use
  • Advanced vibration control technology minimizes operator fatigue
  • Proven market leader with outstanding reliability
Performance
  • Reduces downtime and maintenance costs
  • Exceptional resistance to wear and tear
  • Portable design for ease of use
  • Advanced vibration control technology minimizes operator fatigue
Applications
The Y26 hand held rock drill is mainly used for drilling, secondary blasting and other work in mines, railway and water conservancy projects. It is designed for both dry and wet rock drilling on hard and medium hard rock, vertically downwards or inclined blast hole. For wet drilling, the water pipe nut must be replaced with the air pipe nut and the water pipe.
Specifications
Parameter Value Unit
Weight 26 kg
Dimension (L x W x H) 650 x 534 x 125 mm
Cylinder diameter 65 mm
Piston stroke 70 mm
Working pressure 4-5 bar(e)
Impact energy (at 5.0 bar (e)) ≥48 J
Impact energy (at 4.0 bar (e)) ≥30 J
Air consumption (at 5.0 bar (e)) ≤50 l/s
Air consumption (at 4.0 bar (e)) ≤47 l/s
Impact frequency (at 5.0 bar (e)) ≥27 Hz
Impact frequency (at 4.0 bar (e)) ≥23 Hz
Torque (at 5.0 bar (e)) ≥14 Nm
Torque (at 4.0 bar (e)) ≥11 Nm
Noise level ≤125 dB(A)
Water pressure working pressure -1 bar(e)
Air hose inner diameter 19 mm
Water hose inner diameter 13 mm
Drilling diameter 34-42 mm
Max drilling depth 5 m
Working temperature -30 to +50 ºC
Shank size H22x108±1/H25x108 mm

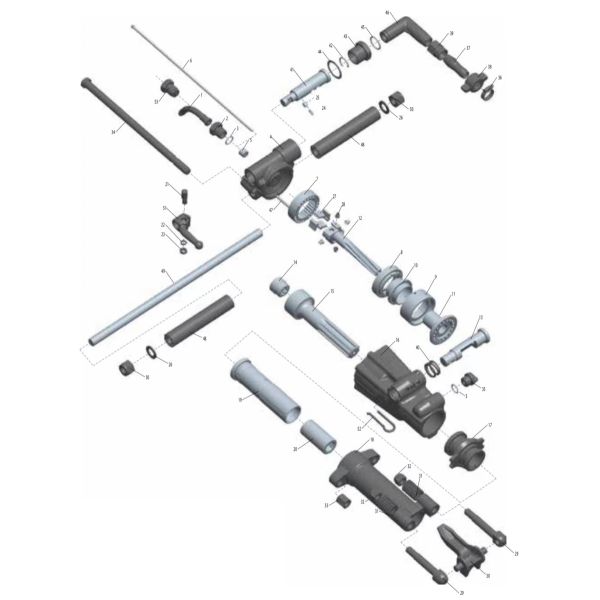

Product Structure Drawings and Parts Lists
Y26 Rock Drill
Y26 Hand Held Rock Drill Wear Resistant For Mining Rock Drilling
No. Description Product no. Product code Chinese Code Chinese name
1 Water pipe 96000216 964H-1-3312310211 Y26-303 进水弯管
2 Water pipe nut 96000215 964H-1-3312310210 Y26-320S 水管螺母
3 O-ring 96000502 9605-1-3312310671 24×2.4GB1235-79 O型密封圈
4 Back head 96000213 964H-1-3312310208 Y26-301 柄体
5 Water tube bush 96000822 9600-1-3312310019 7655-304 水针套
