HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining
Specifications
Brand Name :
HLDRILL
Place of Origin :
China
Supply Ability :
2000 PCS Per month
Delivery Time :
15 Days
Packaging Details :
Wooden Box
Certification :
ISO9001
MOQ :
10 PCS
Price :
Please contact us
Payment Terms :
T/T
Product Name :
HEX22/25 Solid Rock Drill Rod
Product Specifications :
Hexagonal 22/25mm
Product Type :
Solid Rock Drill Rod
Connection Form :
One-piece drill bit structure
Body Material :
High-quality alloy steel
Applicable Equipment :
Handheld rock drills, pneumatic drills
Applicable Scenarios :
Quarries, mining, tunnel drilling
Performance Characteristics :
High strength, bending resistance, durable and wear-resistant
Description
HEX22/25 Integral Drill Steel for Quarry and Mining
Integral Drill Rods (Integral Drill Steels)

Designed for handheld rock drills, our integral drill rods excel in granite and marble quarries, underground mining, and small blasting hole drilling.

Key Advantages
  • Reduces impact energy consumption while boosting drilling speed and efficiency
  • Versatile borehole diameter range: 30mm to 41mm (bit diameters 20-42mm)
  • Crafted from premium alloy steel and high-grade tungsten carbide for exceptional durability
HEX22 HEX25 Integral Drill Steel , Solid Rock Drill Rod For Quarry / Mining

Custom options available: We can tailor carbide size and rod length to your specific requirements.

Tapered Drill Rods (Taper Drill Steels)

Engineered for precision, our tapered drill rods feature a hexagonal chuck section for enhanced rotational leverage and a forged collar to maintain optimal shank position in rock drills.

Applications

Ideal for medium-hard to hard, abrasive rock formations. Compatible with modern drill rigs (PD-Y58 crawler hydraulic rock drill) and classic models (Y6, Y10, Y24, YT24), as well as mobile pneumatic/hydraulic drills.

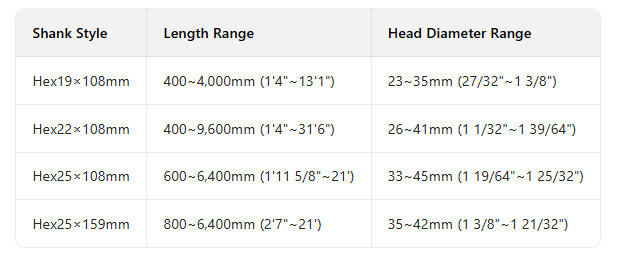

Specifications
  • Taper Angles: 4°, 6°, 7°, 11°, 12° (11° and 12° recommended for modern rigs)
  • Length: 400mm to 8,000mm (measured from collar to bit end)
  • Shank Options: Hex19×108mm, Hex22×108mm, Hex25×108mm, Hex25×159mm
Additional Drilling Solutions

Plug Hole Rods: Chisel bit diameters 17mm, 20mm, 22mm; lengths 150mm to 710mm.

Our Main Product Range
  • 1-12 inch low/middle/high air pressure DTH hammers bits
  • Large-hole high-pressure DTH hammers (for water wells, oil, gas, and construction)
  • Eccentric overburden drilling equipment
  • Hole opener bits
  • Rock thread bits (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
  • Extension rods, M/F rods, M/M rods, drift rods
  • Shank adapters, coupling sleeves, and various adapters

All our drilling tools are built to withstand extreme conditions, ensuring long service life and reliable performance. Whether you need standard sizes or custom solutions, we've got you covered. Contact us to find the perfect drill rod for your project!
