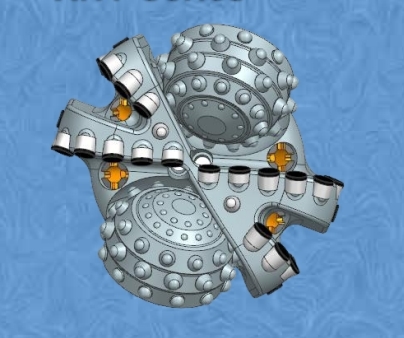

216mm Diamond PDC Bit for Hard Strata Directional Drilling with Double Cone and 4 Blades Design
216mm Diamond PDC Bit for Hard Strata Directional Drilling with Double Cone and 4 Blades Design
216mm Diamond PDC Bit for Hard Strata Directional Drilling with Double Cone and 4 Blades Design
216mm Diamond PDC Bit for Hard Strata Directional Drilling with Double Cone and 4 Blades Design
Specifications
PDC Main teeth :
1613
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
78kg
Place of Origin :
CHINA
Nozzle type & count :
L*4
API Connection :
4-1/2 REG.pin
Price :
Negotiable
IADC code :
S537
Payment Terms :
L/C,D/P,T/T,
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Cutting structure :
Double cone with 4 blades
Junk slot area (sq mm) :
9238
Bearing :
Wear-resistant alloys
Gauge Length :
140mm
Make-Up length :
362mm
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XHY
Certification :
API 、ISO 9001
Cutter Type :
GI
MOQ :
1 Piece（MOQ）
Body type :
STEEL
Cone / palm / tooth material :
15MnNi4Mo/20CrNiMo
Normalized Face Volume :
48.41%
Description
8 1/2in 216mm Oil Drill Bit Hard Strata Directional Diamond PDC Bit
Made in China 8-1/2″ (216mm) XHY Diamond PDC Bit for Hard Strata Directional Drilling and Hard Strata Speed-Up
XHY Series Features
  • Suitable for improving directional drilling efficiency and overall drilling efficiency in hard formation
  • Using double cone and four blades design, and selecting premium cone assembly make the bit performance at the top of the industry
  • The optimized under exposure of cone and PDC cutter improve the steer ability and overall drilling efficiency
  • PDC reinforced arm make the bit more durable in conglomerate or hard abrasive sandstone
Product Features
  • Up-Drill Cutters on Gauge Pads
  • Double-cutting structure
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
The pictures are for reference only
Please contact Skycom engineers for detailed technical parameters
