High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
High Pressure Hose Loop for Oilfield Applications Made from Alloy Steel with 42MPa Operation Pressure
Specifications
Supply Ability :
Stable supply and support for bulk customization.
Material :
Alloy
Machinery Test Report :
Provided
Certification :
API 、ISO 9001
Video Outgoing-Inspection :
Provided
Place of Origin :
CHINA
Applicable Medium :
Mud, Natural Gas, Crude Oil
Packaging Details :
Standard Exported Package
Cross-Section Shape :
Round
Brand Name :
XINGTONG
Model Number :
Hose loops
Payment Terms :
L/C,D/P,T/T,
Price :
Negotiable
Surface Treatment :
Sand Blast
Manufacturing Process :
Forging
MOQ :
1 Piece（MOQ）
Operation Pressure :
High Pressure
Delivery Time :
15-45 Days
Description
Premium High Pressure Hoses for Reliable Oilfield Pipeline Applications
Product Description

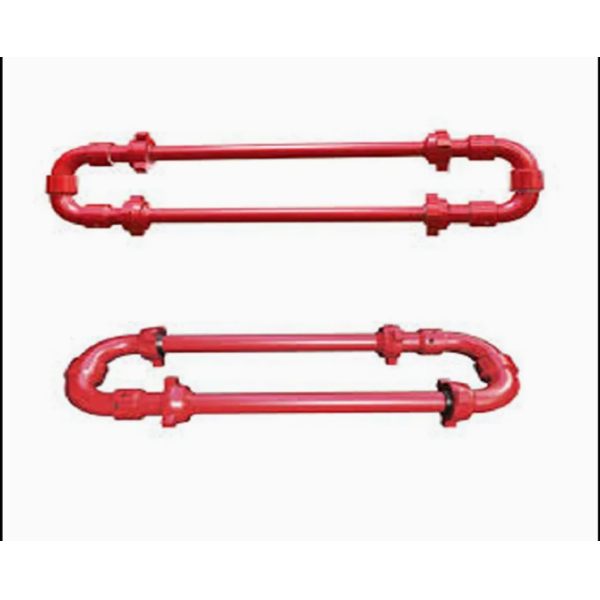

Our hose loops, designed for cementing and circulating applications, are available in two primary construction models: integral construction and threaded construction.

The typical integral hose loops feature two straight pipelines and two Style 10 swivel joints with elbows, connected by tri-race ball bearings at three joints and secured with threaded wing nuts. The threaded construction model utilizes two straight pipelines and two Style 50 swivel joints with elbows, joined by threaded wing nuts.

Manufactured from high-quality alloy steel and MPI inspected, all materials meet ASTM or AISI standards. Available in sizes from 2" to 3", with standard lengths of 8ft, 10ft, 12ft, and custom lengths for specialized field service requirements.

Key Features & Applications
  • Ideal for oil field cementing, acid fracturing, and similar applications
  • Assembled with swivel joints, hammer unions, and pup joints for three-directional flexibility
  • Suitable for discharge, transportation, well testing, and well cementing pup joints
  • Compatible with various swivel joint types
  • Hammer unions enable quick connection and disconnection for both low and high pressure applications
Technical Specifications
Size Range 2", 3", 4"
Pressure Ratings 42MPa (6000psi), 70MPa (10000psi), 105MPa (15000psi)
Standard Lengths 8ft, 10ft, 12ft
Material Standards ASTM or AISI compliant alloy steel
Quality Assurance MPI inspected
Custom Solutions

We provide customized hose loops in any specification, pressure rating, and length according to expanded size requirements, tailored to meet specific user needs and field service conditions.
