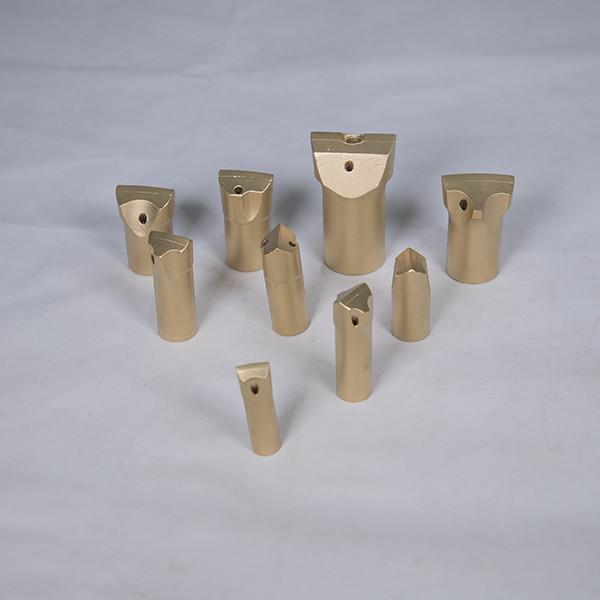

Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits
Specifications
Brand Name :
Kinglong
Model Number :
Tapered Button Bits
Certification :
IS9001
Place of Origin :
Wuhan
MOQ :
1PC
Price :
USD5-10pc
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
5-8 days
Packaging Details :
wooden package
Material :
Tungstern Carbide Threaded Drill Bit
Use :
Rock Drilling
Type :
tapered button bits
Machine type :
Drilling Tool
Processing type :
Forging
Color :
Customized,Red,BLUE,yellow.black,Gold
Application: :
Hard Rock Drilling, Stone Quarry, Coal Mining, Blast Hole
Suitable Brand: :
Atlas copco,Boart longyear,Halco,Fantini,Furukawa...
Diameter :
33~152mm
Threaded :
R25 R28 R32 R38 T38 T45 T51 AT60 ST58 ST68 etc
Description

tapered drill bits consist of mining and tunneling two series, with higher drilling efficiency, longer service life, better powder-discharge, better wear-resistance and impact-resistance, easier bit-back performance etc., widely used in metal mine, quarry, tunneling, hydro-electrical engineering and so on.

The features

1. Raw material: alloy steel and tungsten carbides by heat forging treatment

2. Buttons/tipe & size : 4,5,6,7,8;0711/0710mm

3. Skirt length: 50-55mm, 60-70mm.

4. Angle: 7 /11/12 degree.

5. Package: wooden case or plastic box with 50 pieces or 100 pieces.

6. Design: We can design according to customers' requirement and drawing, including buttons number, button type, and flushing holes.

Name of Product Bit Diameter(mm)
Chisel Bit 20,26,28,32,34,36,38,40,43
Cross Bit 32,34,36,38,40,42,45
Button Bit 28,32,35,38,40,42,43,45

6°,7°,11°,12° taper

Other taper degrees and bit diameters are available upon request.
Tapered button bits
  1. Type: Tapered button bits
  2. Size: Hex.19mm, 22mm, 25mm
  3. Diameter: 30-45mm.
  4. Taper: degree 4°46′ 6°, 7°, 11°, 12°
  5. Package: in wooden case or in carton.
  6. Productivity: 10000pcs/ month

Our tapered bits include both cross and button designs.
11°, 12° Taper button bit with hot zinc-coating

Tapered drill rod
  1. Steel grade: Sandbar 64 or Sandbar 20 or C253, 55SiMnMo
  2. Size: Hex.22mm, Hex.25mm
  3. Taper: 4°46′, 6°, 7°, 11°, 12°.
  4. Length: 0.4m-10m
  5. Package: in wooden case or in bundles.
  6. Productivity: 20000MT / month

Drill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button BitsDrill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button BitsDrill Tool 32mm 34mm 36mm 38mm 43mm 46mm 60mm Tungsten Carbide Tipped Hard Rock Bits Taper Drill Button Bits

1.Pre-sale service:

Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments . 1.Select equipment model. 2.Design and manufacture products according to client's special requirement ; 3.Train technical personnel for clients .

2.Services during the sale:

1.Pre-check and accept products ahead of delivery .
2. Help clients to draft solving plans .

3.After-sale services:

Provide considerate services to minimize clients' worries.
1.Complete After-sales service,professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service.
