Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining
Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining
Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining
Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining
Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining
Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining
Specifications
Brand Name :
Kinglong
Model Number :
Hex22
Certification :
IS9001
Place of Origin :
Wuhan
MOQ :
1PC
Price :
USD11-50pc
Payment Terms :
T/T, Western Union
Delivery Time :
50000PCS per month
Packaging Details :
wooden package
Material :
8Cr
Use :
Ore Mining
Type :
Drill Rod
Machine type :
Drilling Tool
Processing type :
Forging
Shank Type: :
H19*108/H22*108
Head Diameter :
28mm
Head Design: :
Chisel Head
Machine :
Jack Hammer Rock Drill
Description

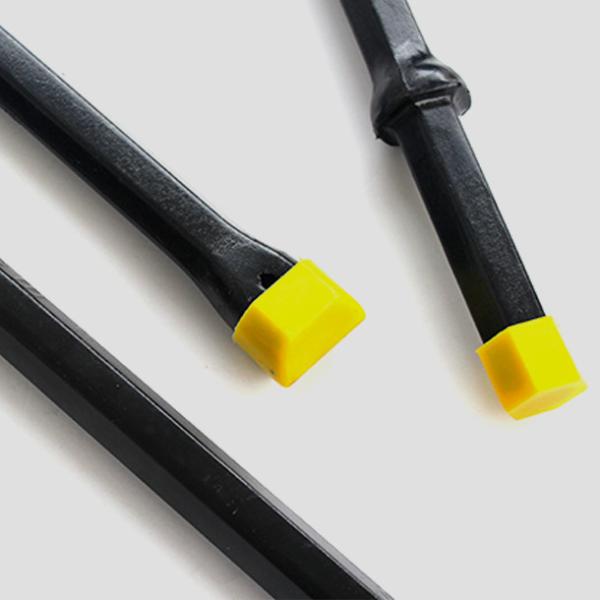

Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining

Integral drill steel rod is used by a hand held drill machine in underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. According to different application, different lengths are available from 600mm to 9600mm usually.

  • Product Name: Tophammer Integral Drill Steels

  • Other Names:H19 Integral Drill Steels, H22 Integral Drill Steels, Integral Drill Steel Bars, tapered tools. Plug hole drill steels , plug hole drill rods.

  • Drill Rods Dimension: 600mm-2400mm.

  • Steels Grade: Imported from Sweden and USA.

Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining

Steel Basic Chemical Composition:

55SiMnMo, 35CrNi3Mo, 40CrNiMo.
Drill Rods Head Diameters:
21mm-41mm.

Shank:

108mm 159mm.

Matching Rock Drills:
Hand-held Jackhammer Drills, Air-leg Jackhammer Drills. YT26 YT28 etc.

Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining

Integral Drill Steel

Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground MiningHand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground MiningHand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining


KING-LONG Integral Drill Steels are manufactured from premium, high-strength, alloy steel and are available with length from 600mm to 2400mm and head diameter from 21mm to 41mm. KING-LONG Integral Drill Steel rods are developed and designed to give you straighter holes with less deviation and longer service life.

On request, we can supply integral and plug hole rods to custom lengths and gauges. At KING-LONG, we use the finest raw materials available, including premium steel and top quality carbide.
Basic Information Nitoce

Material

55SiMnMo,8Cr,95CrMo

Production Lead time

Normally 7-20 days

Transit time

Normally 7-15 days

Packaging

As customer required or standard packaging

Protection

Antirust oil

Quality assurance

Formally Contract Paper

Technical support

For all user we have technical engineer support


Integral Drill Steels: Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, and equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.
Hand Held Rock Tools H22 tapered drill rod/integral drill steel For Underground Mining

Main Parameter

Model Taper Degree Drilling Road Length Shank Size
Hex.19mm 7°,4.8°,12° 0.4m-4.0m 83mm,108mm
Hex.22mm 7°,4.8°,12° 0.8m-6.0m 83mm,108mm
Hex.25mm 7° 0.8m-6.0m 108mm,159mm

Specifications:

(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo

(2)Shank size: hex19mm hex.22mm, hex.25mm including Plug Hole Rod

(3)Head Diameter: 24mm-44mm

(4)Length: 0.4m-6.4m

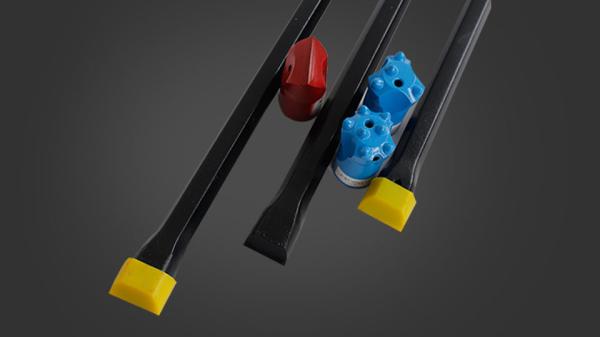

Rock Drilling Steel Taper Rods for Drill Bit
Rock Drilling Steel Taper Rods for Drill Bit can be connected with button bits,taper bits,and cross-type bits.
Application:Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling.
