Specifications
Brand Name :
Kinglong drilling
Model Number :
Tapered Button Bits
Certification :
ISO9001
Place of Origin :
China
MOQ :
5pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
5 work days
Packaging Details :
wooden package
material :
Tungsten Carbide
Tapered Button Bits dia. :
28mm to 45mm
Taper Degree :
6°, 7°, 11°, 12°
Matched Hex Rods Size :
Hex22-108mm Drill Rods, Hex25-159mm Drill Rods
Use :
Mining or Quarry or well drilling
Type :
Drill Bit,Button bit
Machine type :
Drilling Tool
Processing type :
Forging,Casting
Color :
Customized,Gold
Description

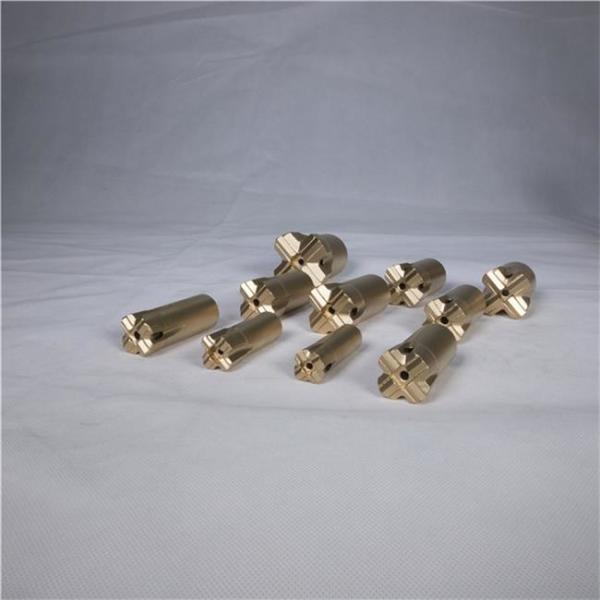

Small Hole Tapered Button Bits

A:Small Hole Drilling Hex Drilling Button Bits: 32mm, 33mm, 35mm, 36mm, 38mm, 40mm, 41mm, Head Diameters Available.

B:Small Hole Tapered Button Bits Taper Degrees: 6, 7, 11, 12.

C:Numbers of Tungsten Carbide Tips:4, 7, 8.

D: Available Diameters of Each Button Tips:Gauge Buttons:7mm,8mm,9mm,Front Buttons:6mm,7mm,8mm.

Product Name:

30-40mm 7 degree taper rock drill bit
Types Tapered chisel bits, Tapered cross bits, Tapered button bits
Application:: Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Feature: Tapered drill bits connect tapered drill steel of rock drill for drilling holes
Material: High quality carbide and high quality 42CrMo cold forging steel body
MOQ: No requirement for testing and trial order
We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.
Types of drill bits Diameter (mm) Taper Angle (Degree) Length (mm) Weight (kg)
Tapered chisel bits 20/22/28/30/32/34/36/38/40 4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree 50/55/60/71/80 0.15 - 0.45
Tapered cross bits 24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 50/55/60/71/80 0.18 - 0.7
Tapered button bits 28/29/30/32/33/34/35/36/37/38/40/41/42/45 50/55/60/71/80 0.2 - 0.5

Rock Drill Parts Manufacturer Small Hole Tapered Button Bits for Granite drilling

Rock Drill Parts Manufacturer Small Hole Tapered Button Bits for Granite drillingRock Drill Parts Manufacturer Small Hole Tapered Button Bits for Granite drilling

All-round bit with six gauge buttons for medium hard to hard rock forma- tions. Front and side flushing. Inclined front buttons.

All-round bit for soft to hard rock formations.Two front flush- ing holes for optimal speed and less hole deviation. Inclined front buttons.

All-round drill bit for soft, medium and hard rock with excellent flushing capacity. Front and side flushing.

All-round drill bit for soft, medium and hard rock with excellent flushing capacity. Front and side flushing.

All-round drill bit for medium hard to hard rock forma- tions. Front and side flushing.

For hard and abrasive rock. Front and side flushing.

Please observe that all button bits are manufactured over-sized 0,5–1,0 mm, meaning that for example a 36,0 mm bit is at least 36,5 mm as new.This is done because of the fast initial wear on button bits.

It is important to consider that the drilled hole could vary in size due to drilling conditions, drilling practices and ground formation.
