Drilling Dia. Range: holes from 90mm to 800mm

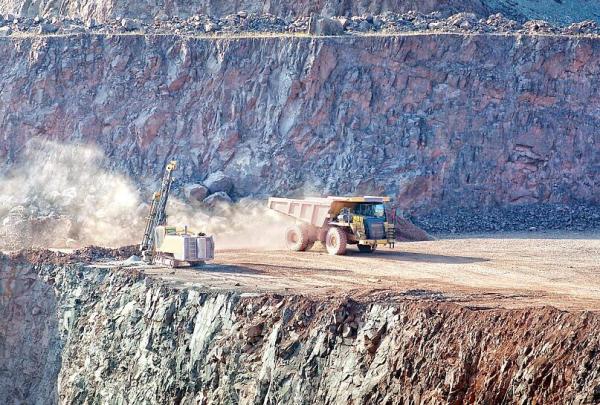

Application Fields: Widely used in open pit and underground mining,Water well drilling.,Deep well,Foundaion,Anchor drilling

Outstanding Advantage:

Piston with swivel grooves to distribute air ensures high drilling rate

With bush drive sub to distribute air and have a high location to the bit

Outer Cylinder:Heavy duty cylinder for extended hammer life

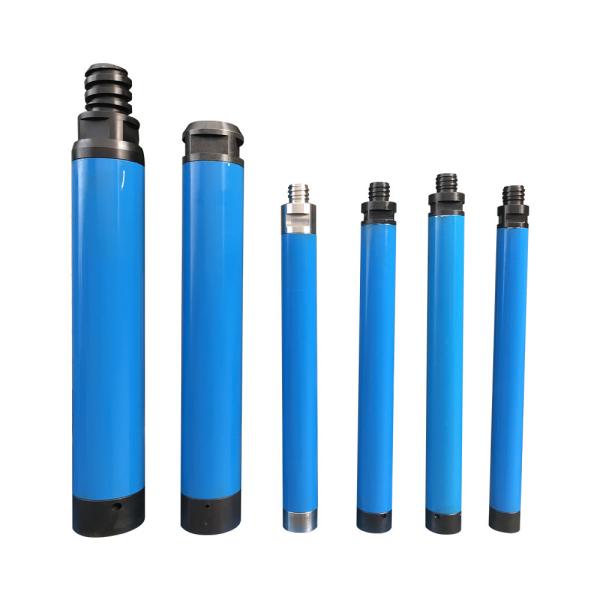

High air pressure DTH hammer:
1.High air pressure DTH hammer size from 3" to 12"(76mm-304mm)
2.Shank types including COP, QL,DHD, MISSION,HD,IR, SD,TD, etc.
3.Connect Thread : API 2 3/8" , API 3 1/2 , Reg-6 5/8"Reg etc.

Low Air Pressure DTH hammers:

1.CIR series Low air pressure DTH hammer includes: CIR55, CIR65, CIR70, CIR80, CIR 90, CIR110, CIR110W, CIR150, CIR170, CIR200W etc.

2.J series Low air pressure DTH hammer includes: J60C, J70C, J80B, J100B, J150B, J170B, J200B

R.C.(Reverse Circulation) hammmers

1.R.C. hammers includes:RC45,RC55,RC65,PR52 etc.

We Offer three types of Medium Pressure DTH Hammers that operating air pressure is between 0.7 Mpa to 1.75 Mpa. And all of the BR Medium Pressure DTH Hammers are valveless. Easy to disassemble and assemble., Ideal faster drilling speed and higher impact frequency. Drilling Diameter: 90mm-130mm Hammer Length: 700mm-800mm, External Diameter: 82mm, Impact Frequency: 25Hz. Air Consumption: 4 M3/min(0.7Mpa); 6M3/min(1.0Mpa); 8M3/min(1.4Mpa).

We supply high pressure DTH hammers model SD, COP, DHD, BR, QL M series, N series, VKP from 2.5 inch to 12 inch with high efficiency.

Northern Europe: foundation, piling

Western Europe: water well and geothermal drilling

Russia: Oil, infrastructure and mining.

South east asia: mining and geothermal

South Africa: mining and water well drilling

Middle east: water well drilling

Oceania: mining, exploration and water well drilling

South America: water well drilling and mining
