Product Description:

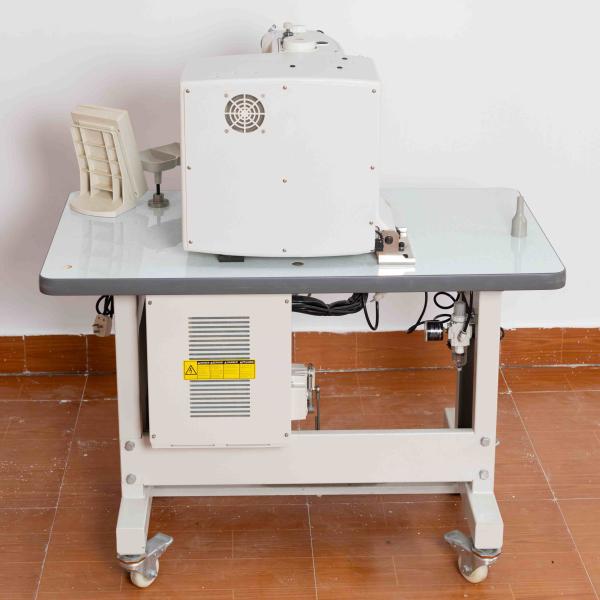

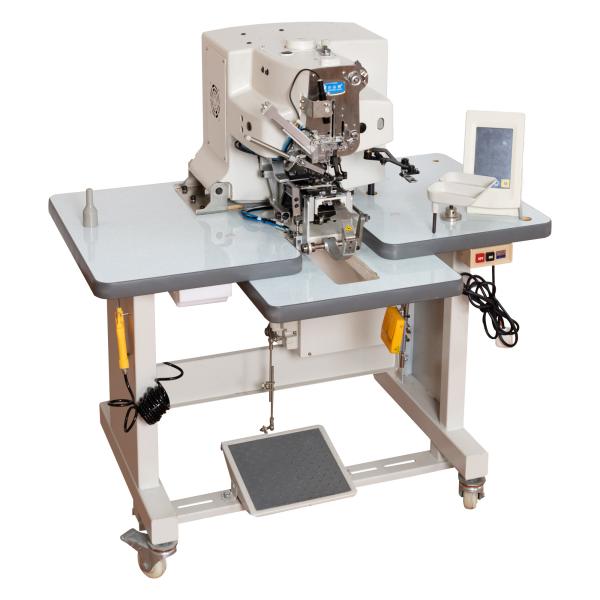

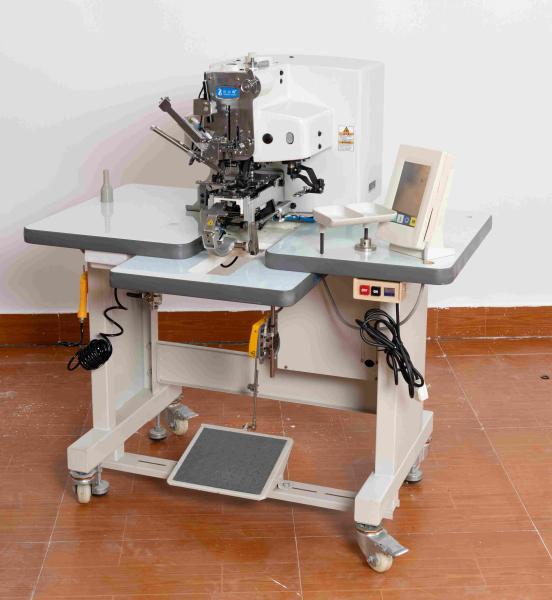

This high-speed electronic single-thread shank button sewing machine is a multi-functional, high-precision intelligent sewing equipment, specially designed for various button sewing processes. Integrating electronic control, cycle sewing editing and diversified button attaching functions, it can efficiently complete complex sewing tasks such as flat buttons, shank buttons, covered buttons and snap buttons.

Equipped with an advanced electronic thread clamping system and a color touch operation panel, it supports fine parameter adjustment and easy management of sewing data, significantly improving production efficiency and sewing quality. It is suitable for high-end clothing and diversified production scenarios.

Features:

Versatile Button Sewing Capability: A single machine can sew a variety of button types, including flat buttons, shank buttons, covered buttons, and large and small buttons (a type of snap-on button), offering high adaptability.

Electronic Thread Clamping System: Utilizing a new electronic thread tensioner, the system offers rapid response and allows for fine-tuning of thread tension for different fabrics, resulting in more stable stitch performance.

Independent Tension Settings: Thread tension for button sewing and thread wrapping can be set separately on the panel, providing precise control over each sewing step.

Pattern Sewing Storage and Recall: Sewing conditions for various patterns can be stored and recalled at any time, facilitating mass production and process reproducibility.

Cycle Sewing Function: Supports continuous sewing of multiple steps, particularly suitable for garments requiring a mix of buttons, such as double-breasted suits.

Graphical Data Editing: The operation panel displays a graphical representation of the sewing project and supports the setting and editing of cycle sewing data, including button quantity, placement, and sewing order.

Automatic Dual-Button Feeding: The button feeder automatically switches between two different button types according to cycle sewing requirements, enabling fully automated production.

Color Touchscreen Operation Panel: Equipped with an intuitive color LCD touchscreen, users can easily set and modify sewing parameters using a graphical interface.

Sewing Data Sharing: Supports data storage and transfer via memory card, facilitating standardized sewing standards across multiple machines or factories, improving collaborative efficiency.

High-Efficiency Production: High-speed sewing combined with automated button feeding significantly improves button sewing efficiency.

Easy Operation: The user-friendly touchscreen interface and graphical operation reduce reliance on skilled labor.

Precise and Stable: Electronic tension control and independent parameter settings ensure the quality of each button.

Flexible Adaptability: Compatible with a wide range of fabrics and button types, easily meeting complex production needs.

Data Management: Supports pattern storage and external data transfer, facilitating production standardization and process control.

Technical Parameters:

Applications:

The Button Sewing Machine is ideal for a wide range of applications, including garment button attachment, press stud sewing, and working with leather materials. Its dual button feeding feature allows for automatic supply of two different types of buttons, making the sewing process more efficient and versatile.

One of the standout features of this machine is the independent tension setting, which enables you to set the tension separately for the button attaching stage and the thread wrapping stage. This ensures precise and consistent results for each sewing project.

Additionally, the Button Sewing Machine offers fine tension adjustment, allowing you to make detailed adjustments to the thread tension based on the fabric type you are working with. This feature is especially useful when working with different materials that require varying levels of tension.

Moreover, the machine has pattern storage capabilities, allowing you to store sewing parameters for each individual pattern. This feature streamlines the sewing process, making it easier to switch between different patterns without having to readjust settings each time.
