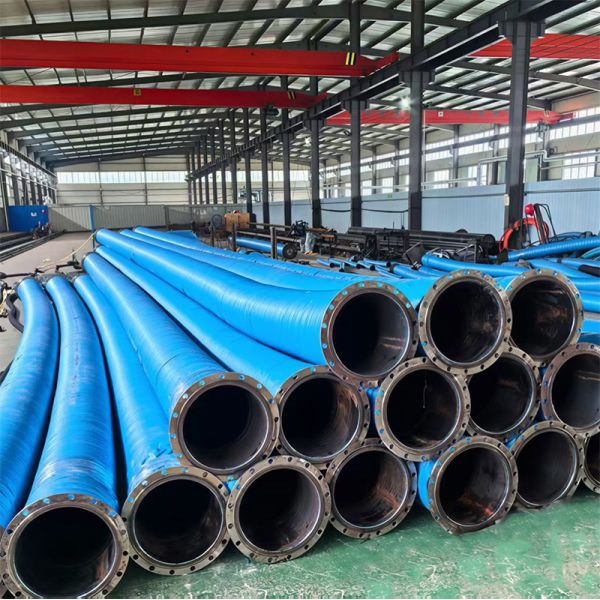

Customized Thickness Rubber 6 inch Dredge Hose for Mining and Dredging Industry
Dredge Hose Product Introduction
Armored dredge hoses are heavy-duty hoses designed for highly abrasive dredging applications where extreme durability is required. These hoses feature embedded steel rings or wear-resistant ceramic layers to withstand high-impact loads and extend lifespan. They are widely used in mining, large-scale dredging, and gravel pumping projects, where conventional dredge hoses may wear out quickly. The reinforced structure provides excellent resistance to internal and external pressure, ensuring safe and efficient operation in demanding environments. Armored dredge hoses offer high flexibility, superior abrasion resistance, and long service life, making them ideal for handling large volumes of coarse materials. Available in custom diameters, lengths, and pressure ratings, they are a perfect solution for high-performance dredging systems.
Product Specifications
| Material of Rubber | NR, NBR, SR, CR and etc |
| Material of Flange | Q235B carbon steel paint |
| Reinforcement Layer | Steel Wire Spiral |
| Size | 1/2" to 32" |
| Working Pressure | 5-22 Bar or As Requested |
| Brand | Hongruntong Marine |
| Application | Water irrigation, mud dredging, water suction etc |
| Packing | Plastic Belt Packing |
| Working Temperature | -40 ℃ ~ +120 ℃ |
| Warranty | 36 Months |
| MOQ | 1 |
Model Specifications
| Model | I.D. | W.P. | B.P. | Min Bending Radius | Wear Layer Thickness | Length |
|---|
| | inch | mm | bar | bar | mm | mm | m |
|---|
| HM-F150 | 6 | 150 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-F200 | 8 | 200 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-F250 | 10 | 250 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-F300 | 12 | 300 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F350 | 14 | 350 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F400 | 16 | 400 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F450 | 18 | 450 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F500 | 20 | 500 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F600 | 24 | 600 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-F650 | 26 | 650 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-F700 | 28 | 700 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F750 | 30 | 750 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F800 | 32 | 800 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F850 | 34 | 850 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F900 | 36 | 900 | 25-30 | 75-90 | 15D | 30-50 | 11.8 |
| HM-F1000 | 40 | 1000 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
| HM-F1100 | 44 | 1100 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
Key Features
- High Abrasion Resistance: Designed with a wear-resistant inner lining to handle highly abrasive materials like sand, gravel, and slurry, ensuring a longer service life.
- Superior Flexibility: Engineered for maximum bending capability, allowing smooth operation even in dynamic dredging environments.
- Reinforced Structure: Built with high-strength synthetic fabric and steel rings, providing excellent durability and resistance to high pressure and vacuum conditions.
- Corrosion Seawater Resistance: Manufactured with marine grade rubber, ensuring superior resistance to seawater, chemicals, and corrosive environments.
Applications
- River Dredging: Dredge hoses are used to remove sediment and debris from riverbeds, enhancing navigation and flood control. They allow for the efficient transfer of material from the river to processing sites.
- Port and Harbor Maintenance: Used extensively in ports and harbors to maintain shipping channels. Dredge hoses facilitate the removal of silt and mud that accumulates over time, ensuring safe vessel access and improving marine infrastructure.
- Beach Nourishment: Dredge hoses are crucial in beach nourishment projects, where sediment is pumped from offshore sources to replenish eroded beaches. This helps protect coastlines and supports tourism.
Why Choose Hongruntong Marine
- Competitive Pricing: Competitive pricing strategy without compromising on quality, making our hoses a cost-effective solution.
- After Sales Service: Dedicated after-sales support to assist customers with any issues or inquiries post-purchase.
- Industry Certifications: Compliance with relevant industry standards and certifications, ensuring safety and reliability in our products.
- Reduced Lead Time: Efficient production processes allow for quicker turnaround times on orders, helping customers meet their project deadlines.
Frequently Asked Questions
How should dredge hoses be stored?
Store them in a cool, dry, and shaded area, away from direct sunlight, extreme temperatures, and chemicals.
What factors affect the price of a dredge hose?
Hose diameter and length, reinforcement materials (standard rubber vs. armored designs), working pressure rating, floating or non-floating design, and customization requirements.
Do dredge hoses comply with international standards?
Yes, they are typically manufactured according to standards like ISO 28017, EN 13482, and OCIMF.
Where can I purchase high quality dredge hoses?
We provide customized, high performance dredge hoses for various applications. Contact us for product details, specifications, and quotations.
