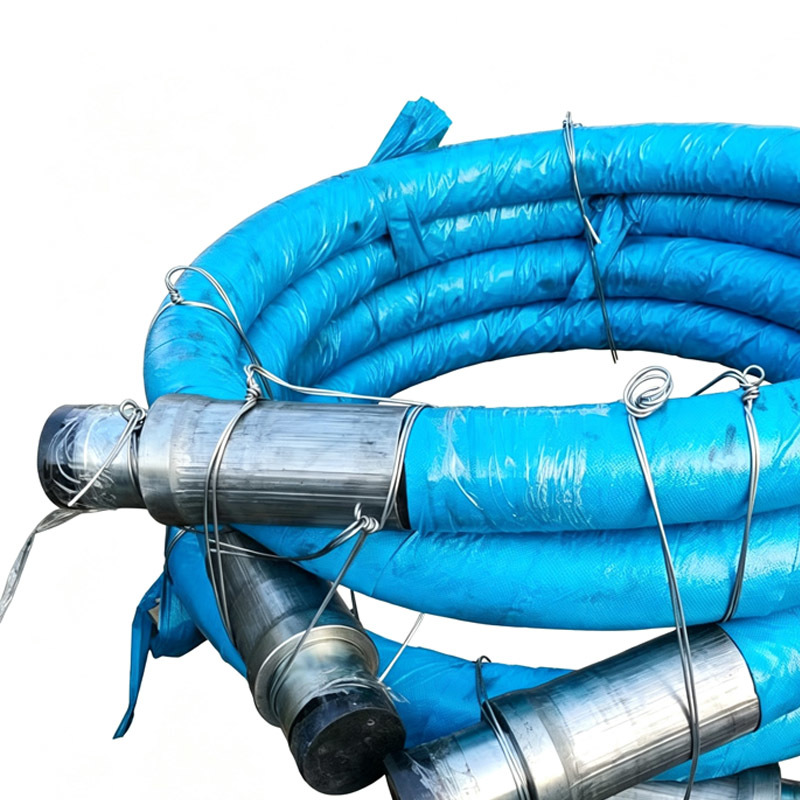

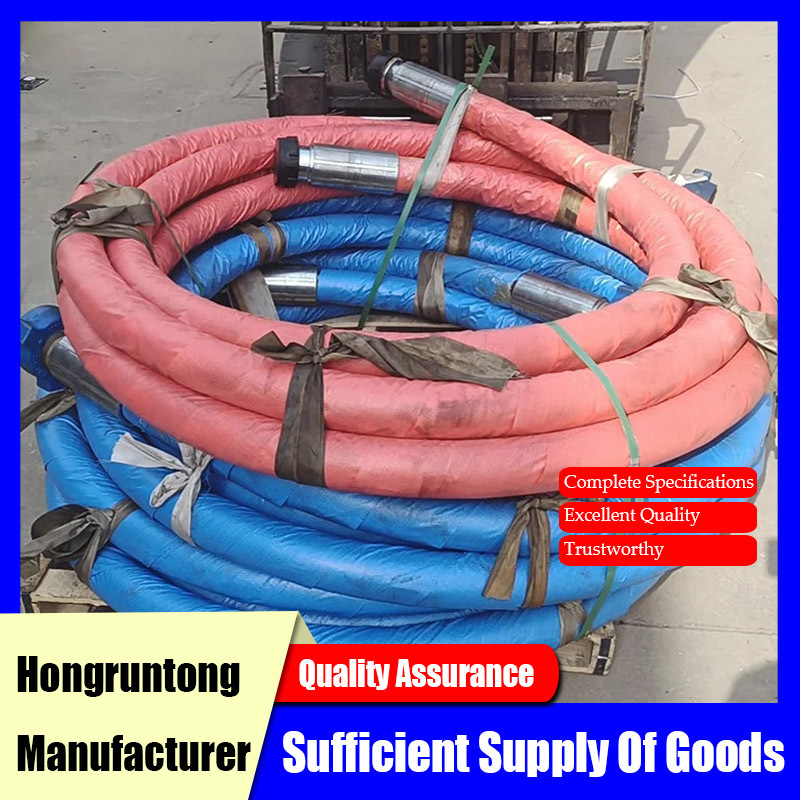

Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Specifications
Certification :
ABS, DNV, RMRS, CCS, LR, BV, SGS, V-Trust
Reinforcement :
High Tensile Steel Wire
Model Number :
HM-RDH63
Place of Origin :
China
Supply Ability :
1546 Pcs Per Month
Material :
Natural Rubber
Brand Name :
Hongruntong Marine
MOQ :
1
Delivery Time :
5-7 Work Days
Cover :
High Quality Synthetic Rubber
Connnection type :
Hammer Union / Flange
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Application :
Petroleum Base Hydraulic Fluids
Product Name :
Rotary Drilling Hose
Price :
$15-$877
Color :
Black
Working Pressure :
35 Mpa - 75 Mpa
Packaging Details :
Wooden Pallets, Wooden Box
Warranty :
3 Years
Machine Type :
Drilling Equipment
Description
Drilling Rotary Hose - Abrasion Resistance, High Pressure Stability, Easy Installation
Product Overview

Rotary Drilling Hose is a flexible high-pressure hose developed for drilling fluid transfer systems where the connection must accommodate equipment movement, vibration, pressure fluctuation, and demanding environmental conditions. It is commonly incorporated into drilling rigs, offshore drilling units, well-servicing equipment, and associated fluid circulation systems where a flexible pressure connection is required between equipment components.

The hose consists of an inner rubber tube, multiple reinforcement layers, and an external protective cover. The inner tube provides the fluid-transfer passage and is selected according to the characteristics of the conveyed medium. Reinforcement layers provide the required mechanical and pressure resistance, while the outer cover protects the hose structure against abrasion, weather exposure, oil contamination, moisture, and general mechanical contact.

Case Study: Dynamic Hose Application on a Semi-Submersible Offshore Drilling Unit

An offshore drilling contractor operating a semi-submersible drilling unit required replacement high-pressure flexible hose assemblies for a drilling fluid circulation system. The drilling unit had an approximate displacement of 42,000 tonnes and was operating in a deep-water field where continuous drilling operations were being conducted.

Hongruntong Marine reviewed the customer's technical parameters and manufactured replacement assemblies with reinforced construction and a durable external cover suitable for the specified environment. The assemblies were pressure-tested and delivered with protective packaging to ensure safe transportation and offshore handling.

Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation Rotary Drilling Hose with Abrasion Resistance High Pressure Stability and Easy Installation
Technical Specifications
Name Rotary Drilling Hose
Tube Modified nitrile, black, specifically engineered for the effective handling of abrasive, corrosive substances, and oil drilling mud
Reinforcement Composite construction featuring multiple layers of textile fabric and steel cable, with a layer of rubber positioned between the cable layers for enhanced performance
Cover Black modified nitrile with a specially engineered ultra-abrasion cover, designed to provide exceptional resistance to abrasion, corrosion, cutting, gouging, oil, and weather conditions
Coupling Swaged couplings, full range of couplings available including hammer union, flanges, hubs, male thread etc
Certification API 7K-0376/ISO14693
Temperature -40°C to +82°C (-104°F to +180°F)
Options Accessories such as safety clamps and hose lift eyes are available upon request
Test Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose
Model Specifications
Model I.D. (inch/mm) O.D. (mm) W.P. mpa(psi) T.P. mpa(psi) Weight (kg/m) B.R. (mm)
HMRDH-Grade A 1 1/2 38 51 11(1500) 22(3000) 2.19 560
HMRDH-Grade A 2 51 65 11(1500) 22(3000) 3.03 900
HMRDH-Grade A 2 1/2 64 78 11(1500) 22(3000) 3.95 1200
HMRDH-Grade B 1 1/2 38 52 14(2000) 28(4000) 2.39 560
HMRDH-Grade B 2 51 66 14(2000) 28(4000) 3.25 900
HMRDH-Grade B 2 1/2 64 79 14(2000) 28(4000) 4.37 1200
HMRDH-Grade B 3 76 98 14(2000) 28(4000) 7.76 1200
HMRDH-Grade B 3 1/2 89 113 14(2000) 28(4000) 9.95 1300
HMRDH-Grade B 4 102 127 14(2000) 28(4000) 12.43 1400
HMRDH-Grade B 5 127 153 14(2000) 28(4000) 15.25 1500
HMRDH-Grade B 6 152 178 14(2000) 28(4000) 18.71 1600
Key Features
Dynamic Movement Accommodation

Rotary Drilling Hose accommodates controlled displacement while maintaining continuous fluid transfer, making it ideal for systems experiencing vibration and equipment movement. The flexible hose body acts as a controlled movement section, reducing stress on pipe supports, flanges, valves, and equipment connections.

Marine Environmental Resistance

Designed for offshore conditions with durable rubber compounds and protective fittings that resist moisture, salt-containing air, sunlight, temperature variation, mud, oil, and continuous outdoor exposure. Proper material selection and installation practices ensure durable performance in demanding marine environments.

Fatigue Resistant Reinforcement System

Multiple reinforcement layers distribute internal pressure and mechanical forces throughout the hose wall, providing structural strength to manage pressure pulsation, bending, vibration, and tensile loading changes. Suitable reinforcement configuration ensures reliable long-term service performance.

Fluid Compatibility and Abrasion Protection

Inner tube materials selected for compatibility with various drilling fluids including water-based mud, oil-based mud, and synthetic drilling fluids. External cover provides abrasion protection against equipment contact and environmental exposure, ensuring both internal and external durability.

Applications
  • Semi-Submersible Drilling Units: Flexible high-pressure connections accommodating equipment vibration and relative movement in drilling fluid circulation systems
  • Offshore Jack-Up Drilling Rigs: Controlled flexibility connections between pumps, manifolds, pipework, and other components where rigid piping is unsuitable
  • Well Service and Offshore Support Equipment: Flexible high-pressure fluid connections for temporary or semi-permanent equipment arrangements requiring mobilization and relocation
Why Choose Hongruntong Marine
Extensive Rubber Product Manufacturing Background

Over 30 years of manufacturing experience in marine and industrial rubber products, covering various product structures, reinforcement technologies, rubber compounds, and marine application requirements.

Engineering Support for Complex Installation Conditions

Comprehensive technical support for confirming hose dimensions, connection configurations, and construction requirements before production, ensuring effective integration with customer equipment.

Flexible Material and Reinforcement Options

Configurable hose construction tailored to specific operating conditions, including reinforcement options and rubber compounds selected according to pressure requirements, flexibility needs, and environmental exposure.

Quality Management and International Project Supply

Structured approach to production, inspection, packaging, and documentation supporting reliable supply for international drilling projects with consistent quality and specification adherence.

Frequently Asked Questions
Is Rotary Drilling Hose suitable for offshore drilling applications?

Yes. Rotary Drilling Hose can be configured for offshore drilling applications where high-pressure flexible fluid transfer is required. The hose construction, rubber materials, reinforcement, outer cover, and metal fittings are selected according to the offshore operating environment, fluid medium, pressure, temperature, movement, and installation requirements.

How does equipment vibration affect the hose?

Continuous vibration creates repeated mechanical loading in the hose body and connection areas. A correctly specified flexible hose can accommodate controlled movement and vibration, but proper installation is crucial. The hose should have sufficient length, avoid torsion, maintain its specified bend radius, and be supported appropriately to prevent uncontrolled movement.

What information is needed to manufacture a customized Rotary Drilling Hose?

The most useful information includes hose nominal bore, overall length, working pressure, maximum temperature, conveyed fluid, end-fitting type, connection dimensions, fitting orientation, and installation environment. Existing hose drawings or equipment interface drawings can also be provided to help confirm the required assembly specifications.

How should offshore Rotary Drilling Hose be inspected?

Inspection should include the outer cover, hose body, connection areas, and visible fitting surfaces. Operators should look for deep abrasion, cuts, cracking, exposed reinforcement, abnormal deformation, leakage, fitting movement, or other unusual conditions. Inspection frequency should be determined according to operating severity and the customer's maintenance procedures.

Can the same Rotary Drilling Hose specification be repeatedly supplied for multiple drilling units?

Yes. Once the required technical parameters have been established and approved, the same specification can be used as a reference for repeat production. This includes hose bore, pressure rating, length, reinforcement construction, rubber material, fitting configuration, and testing requirements. Repeatable specifications simplify spare-parts management and planned maintenance for drilling contractors operating similar equipment.
