Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Specifications
Brand Name :
JIN MENG
Model Number :
JMD250
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$100000-$200000
Payment Terms :
T/T
Supply Ability :
20sets/year
Delivery Time :
60days
Packaging Details :
Containers
Name :
Small suction dredger ship with cutter head
Type :
Small cutter suction dredger
Discharge Pipe Length :
50-100 meters
Cabin Accommodation :
10 people
Main Engine Brand :
Caterpillar, Cummins, WEICHAI, etc.
Cutter Diameter :
0.8 meters
Pump Capacity :
100 cubic meters per hour
Hull Material :
Marine steel
Discharge Pipe Diameter :
250mm
Dredging Pump Type :
Shijiazhuang
Description

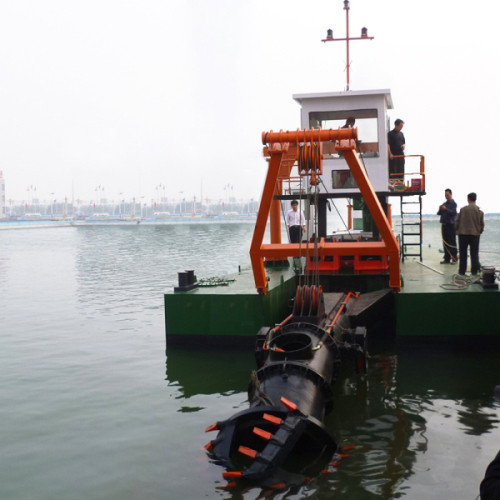

Small Suction Dredger Ship With Cutter Head For Lake Cleaning & Dredging
Product Specifications
Attribute Value
Name Small suction dredger ship with cutter head
Type Small cutter suction dredger
Discharge Pipe Length 50-100 meters
Cabin Accommodation 10 people
Main Engine Brand Caterpillar, Cummins, WEICHAI, etc.
Cutter Diameter 0.8 meters
Pump Capacity 100 cubic meters per hour
Hull Material Marine steel
Discharge Pipe Diameter 250mm
Dredging Pump Type Shijiazhuang
Product Overview

Our small suction dredger ship with cutter head is designed for efficient lake cleaning and dredging operations. Manufactured by Weifang Jin Meng Dredger Co., Ltd., a specialized dredger manufacturer with extensive experience in research, design, and production.

Key Features
  • Designed for dredging operation of soil types II~IV (fine sand, clay, silt, coarse sand)
  • Modular design with five pontoons for easy assembly and transportation
  • Equipped with diesel engine driving dredge pump and harbor generator
  • Hydraulic controlled operation with centralized control system
  • Dismountable operator cabin for bridge clearance during transport
Technical Specifications
Component Specification
Dredging Pump Shijiazhuang
Discharge Pipe Diameter 250mm
Head 35m
Max. Working Capacity 120m³/h
Discharge Distance 800m
Dredging Depth 6m
Diesel Engine 150KW (YUCHAI)
Generator 10KW (WEICHAI)
Total Power 160KW
Oil Consumption 24L/H
Hull Dimensions (LOA×W×D) 16m × 4.72m × 1.26m
Cutter Head Crown-like Φ900mm, 30KW power
Applications

Ideal for various dredging operations including:

  • River channel dredging
  • Canal maintenance
  • Water storage area dredging
  • Coastal area sediment removal
Customization Options
  • Anchor booms installation
  • Spud carriage installation
  • 5-anchor system for improved balance
  • Hydraulic driving for spud flat down
  • Additional dredging pump for increased depth (20-30m)
  • Booster station for extended discharge distance
Product Gallery
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Modular Design Cutting Suction Dredger Lake Cleaning Dredging Vessel
Contact Us

For more information about our small suction dredger ship with cutter head, please contact our sales team.
