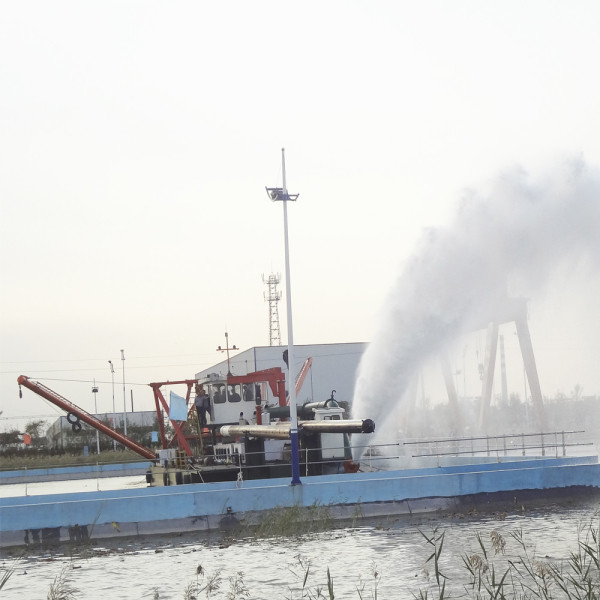

22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length
22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length
22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length
22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length
Specifications
Brand Name :
JIN MENG
Model Number :
JMD550
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$500000-$800000
Payment Terms :
T/T
Supply Ability :
10sets/year
Delivery Time :
30
Packaging Details :
Bulk
Name :
River Desilting Suction Dredger Ship
Type :
Cutter suction dredger
Suction Pipe Diameter :
500-1000 mm
Dredging Capacity :
5001000 cubic meters per hour
Power Type :
Diesel
Length :
50 meters
Hull Material :
Marine Steel
Cutter Head Diameter :
1.3meters
Spud Length :
30 meters
Cutter Head Power :
200 kW
Description
22inch 3500m³ River Desilting Suction Dredger Boat
Product Specifications
Attribute Value
Name River Desilting Suction Dredger Ship
Type Cutter suction dredger
Suction Pipe Diameter 500-1000 mm
Dredging Capacity 500-1000 cubic meters per hour
Power Type Diesel
Length 50 meters
Hull Material Marine Steel
Cutter Head Diameter 1.3 meters
Spud Length 30 meters
Cutter Head Power 200 kW
Product Overview

Weifang Jin Meng Dredger Co., Ltd. is a leading Chinese manufacturer specializing in river desilting suction dredger ships. Located in Qingzhou, Shandong Province, we combine research, design, production, and sales to deliver high-quality dredging solutions worldwide.

Key Features
  • Available in self-propelled or non-self-propelled configurations
  • Modular design with dismantle-and-box structure for easy transportation
  • Can be transported by road, railway, or container
  • Power options: electric system or diesel engine driving system
  • Effective for dredging fine sand, clay, silt, and coarse sand
  • Hull composed of five pontoons (one main + four side) with full steel welding
  • Equipped with diesel engine driving dredge pump and harbor generator
Technical Specifications (JMD550 Model)
Component Specification
Dredging Pump Discharge Pipe 550mm
Head 65m
Max. Working Capacity 900m³/h
Discharge Distance 3000m
Dredging Depth 14m
Diesel Engine 1306KW Cummins
Hydraulic Auxiliary Engine 336KW Cummins
Emergency Generator 20KW WEICHAI
Total Power 1662KW
Oil Consumption 250L/H
Applications

Ideal for river dredging, desilting, reclamation projects, and sand dredging in rivers, salty water, or calm sea conditions.

Frequently Asked Questions
Do your dredgers undergo testing before delivery?
Yes, each dredger undergoes comprehensive testing before leaving our factory. We invite clients to inspect performance personally before shipment to ensure quality and save time/costs at the worksite.
Product Gallery
22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length 22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length
Factory and Workshop
22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length
Road Transportation
22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length 22inch 3500m3 River Desilting Suction Dredger Ship 50 Meters Length
Assembly and Training
