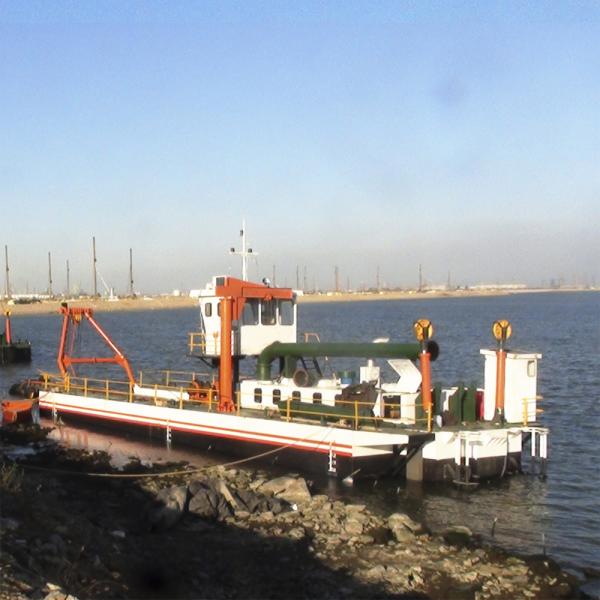

Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Specifications
Brand Name :
JIN MENG
Model Number :
JMD250
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$90000-$200000
Payment Terms :
T/T
Supply Ability :
20sets/year
Delivery Time :
60days
Packaging Details :
Containers
Name :
Water cleaning small cutter head sand dredging ship
Type :
Small cutter suction dredger
Engineer Overseas Service :
Assembly and training
Material :
Marine Using steel Plate
Diesel Engine Brand :
WEICHAI
Cutter Head Diameter :
0.5-2 meters
Customize :
Accepted
Style :
Dismountable type
Plc :
SIEMENS
Generator Set Voltage :
30kw
Description
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging
Product Specifications
Attribute Value
Name Water cleaning small cutter head sand dredging ship
Type Small cutter suction dredger
Engineer Overseas Service Assembly and training
Material Marine Using steel Plate
Diesel Engine Brand WEICHAI
Cutter Head Diameter 0.5-2 meters
Customize Accepted
Style Dismountable type
Plc SIEMENS
Generator Set Voltage 30kw
Company Overview

Weifang Jin Meng factory covers an area of 40,000 sqm with capacity to produce 8 cutter head sand dredging ships simultaneously. Our technology originates from Holland IHC cutter head sand dredging ships, with Chief Engineer Gan having participated in government-organized cutter suction dredger technology research since 2000.

With over 20 years of experience in production and sales, our cutter head sand dredging ships serve clients in Africa, Middle East, Asia, and South America across more than 20 countries. Our professional technology and reliable service have earned customer trust and approval.

Product Description

Our water cleaning small cutter head sand dredging ships are designed, constructed, and quality inspected according to CCS standards:

  • Constructed with CCSB steel plates meeting CCS requirements
  • Skilled, experienced, and CCS-certified welders
  • Marine-grade anti-corrosion paints compliant with CCS standards
  • Diesel engine installation concentricity < 0.05mm
Premium Components
  • Diesel Engine: Cummins or Mitsubishi (American/German technology)
  • Dredging Pump: Kinda (Shijiazhuang industry technology)
  • Gearbox: Hangzhou Qianjin Advance Gearbox
  • Hydraulic System: Rexroth (German technology)
  • PLC System: SIEMENS (Germany)
  • Bearings: Japan NSK
  • Sealings: Parker (America)
Technical Specifications: JMD250 10inch Model
Component Specification
Dredging Pump Dia. Discharge pipe: 250mm
Head: 35m
Max. Working capacity: 120m³/h
Discharge distance: 800m
Dredging depth: 6m
Diesel Engine 150KW YUCHAI
Generator 10KW WEICHAI
Total power 160KW
Oil Consumption 24L/H
Hull Dimensions 16m × 4.72m × 1.26m (LOA × W × D)
Hydraulic System VICKERS America (Joint-venture) pump
Italy SAI technology (Joint-venture) motor
REXROTH Germany (Joint-venture) valves
Operating System SIEMENS PLC (Imported from Germany)
Cutter Head Crown-like Φ900mm, 30KW power
Features & Applications

This hydraulic-controlled, modular dredging ship is ideal for:

  • River channel and canal dredging
  • Water storage area maintenance
  • Projects requiring modular transport

The three-pontoon design allows for easy assembly/disassembly, with a collapsible operator cabin for bridge clearance. The entire unit can be transported by truck or train when needed.

Product Gallery
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Small Cutter Head Sand Dredging Ship For Water Cleaning And Dredging 30kw
Contact Information

Welcome to visit our factory for more details about our Water Cleaning Small Cutter Head Sand Dredging Ships.
