Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
Specifications
Brand Name :
JIN MENG
Model Number :
JMD450
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$300000-$500000
Payment Terms :
T/T
Supply Ability :
20sets/year
Delivery Time :
30days
Packaging Details :
Bulk
Name :
Sand extraction cutter head river dredger
Type :
River dredger
Application :
River Dredging
Working Capacity :
500m3/h
Power Type :
Diesel Engine Cummins
Discharge Pipe Diameter :
450mm
Cutter Head Diameter :
1.5m
Control System :
SIEMENS PLC
Suction Pipe Diameter :
500mm
Pump Type :
Shijiazhuang Pump
Description
500m³ Sand Extraction Capacity River Cutter Head Dredger / Sand Dredging Boat
Product Specifications
Attribute Value
Name Sand extraction cutter head river dredger
Type River dredger
Application River Dredging
Working Capacity 500m³/h
Power Type Diesel Engine Cummins
Discharge Pipe Diameter 450mm
Cutter Head Diameter 1.5m
Control System SIEMENS PLC
Suction Pipe Diameter 500mm
Pump Type Shijiazhuang Pump
Manufacturer Profile

Weifang Jin Meng Dredger Co., Ltd., located in Qingzhou, Weifang City, China, has specialized in sand extraction cutter head river dredgers since 2000. Our products are competitively priced and serve markets across Africa, the Middle East, Southeast Asia, South America, and the United States.

Our company is recognized for:

  • Strong technical expertise and high-quality dredgers
  • Comprehensive after-sales service network
  • Professional R&D department with CAD design center
  • Over 200 employees including senior engineers and designers
  • Quality control and dedicated service teams
Product Description

Our sand extraction cutter head river dredger is available in self-propelled or non-self-propelled configurations with portable sea sand cutter suction capabilities. The modular hull design allows for easy transportation and assembly at worksites.

Key components include:

  • Traversing device and cutter ladder lifting system
  • Spuds and deck crane
  • Optional electric or diesel power systems

Operation process: The cutter head cuts underwater sediment, creating a slurry mixture that is pumped through pipelines to designated discharge locations.

Technical Specifications (Model JMD450)
Component Specification
Dredging Pump Shijiazhuang
Discharge Pipe Diameter 450mm
Head 55m
Max. Working Capacity 500m³/h
Discharge Distance 1500m
Dredging Depth 12m
Diesel Engine 746KW Cummins
Emergency Generator 16KW WEICHAI
Total Power 762KW
Oil Consumption 115L/H
Hull Dimensions (LOA×W×D) 37m × 6.9m × 1.8m
Hydraulic System Components VICKERS, SAI, REXROTH
Operating System SIEMENS PLC (Germany)
Cutter Head Φ1500mm crown-like, 100KW power
Features & Applications

Key advantages of our dredger include:

  • Low bridge clearance capability
  • Modular, dismountable control and rest rooms
  • Three-pontoon construction with high-strength connections

Ideal for working in:

  • Seas, ports, lakes, and rivers
  • Various soil conditions including hard sand, sludge, clay, and mud
Customization Options

We offer tailored solutions including:

  • Anchor boom installations
  • Spud carriage systems
  • Hydraulic spud systems for low clearance
  • Additional underwater dredging pumps (20-30m depth)
  • Booster stations for extended discharge distances
Product Gallery
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
JMD450 Sand Extraction Cutter Head River Dredger
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H

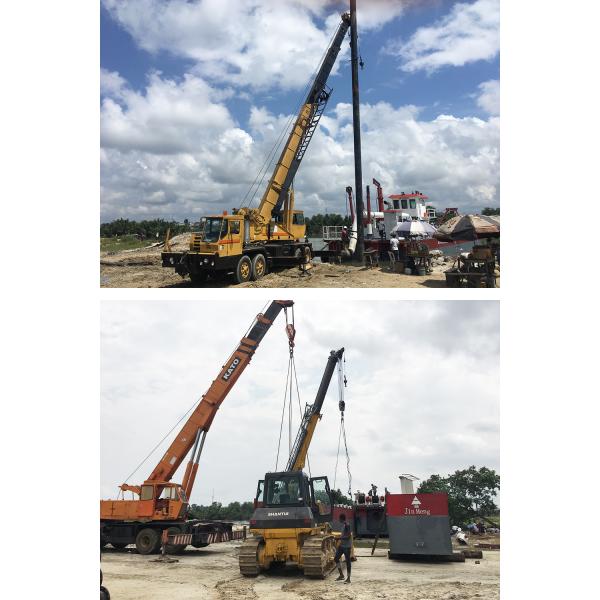

Installation & Training
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
Sand Extraction River Cutter Head Dredger / Sand Dredging Boat 500m3/H
