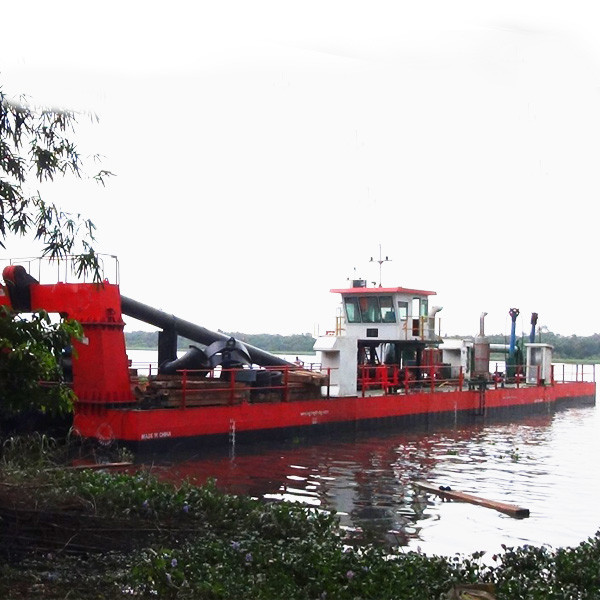

22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
Specifications
Brand Name :
JIN MENG
Model Number :
JMD550D
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$800000-$1300000
Payment Terms :
T/T
Supply Ability :
10sets/year
Delivery Time :
120days
Packaging Details :
Bulk
Name :
River dredger ship cutter head suction dredger
Type :
River cutter suction dredger with submersible pump
Application :
Dredging and Reclamation of Rivers and Waterways
Discharge Pipe Diameter :
550mm
Power :
Diesel Engine or Electric Motor
Dredging Depth :
Up to 25m
Cutter Power :
Up to 300kW
Max. Working Temperature :
55°C
Spud Diameter :
300mm - 800mm
Discharge Distance :
Up to 2000m
Description
22 inch River Dredger Ship Cutter Head Suction Dredger with Submersible Pump up to 25m
Product Specifications
Attribute Value
Name River dredger ship cutter head suction dredger
Type River cutter suction dredger with submersible pump
Application Dredging and Reclamation of Rivers and Waterways
Discharge Pipe Diameter 550mm
Power Diesel Engine or Electric Motor
Dredging Depth Up to 25m
Cutter Power Up to 300kW
Max. Working Temperature 55°C
Spud Diameter 300mm - 800mm
Discharge Distance Up to 2000m
Manufacturer Overview

Weifang Jin Meng factory covers an area of 40,000 sqm with capacity for 8 simultaneous river dredger productions. Our technology originates from Holland IHC, with Chief Engineer Gan participating in government-organized cutter suction dredger technology research since 2000.

Key Products:
  • Cutter Suction River Dredgers: JMD350 (14"), JMD450 (18"), JMD500 (20"), JMD550 (22"), JMD650 (26")
  • Work Boats: 220HP, 300HP, 440HP models
  • HDPE Pipelines: HDPE pipes, Rubber hose, Floaters
Technical Specifications
Component Specification
Dredging Pump 550mm discharge pipe, 80m head, 800m³/h capacity
Power System 1306KW Cummins diesel engine, 336KW hydraulic auxiliary
Hull Dimensions 56m × 8.5m × 2.5m (L×W×D)
Hydraulic System VICKERS pumps, SAI motors, REXROTH valves
Control System SIEMENS PLC (Imported from Germany)
Cutter Head Φ1800mm crown-like, 200KW power
Key Features
  • Modular design with dismountable control room and rest cabin
  • Three-pontoon construction (main + two side) connected with high-intensity bolts
  • Suitable for various soil conditions: hard soil, sand, sludge, clay, etc.
  • Self-propelled or non-self-propelled options available
  • Dismantle-type hull for easy transport and assembly
Operation Process

The cutter head cuts underwater material into slurry, which is pumped through pipelines to designated discharge locations. Ideal for river dredging, desilting, and land reclamation projects in rivers, lakes, and coastal areas.

Product Gallery
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
22 Inch River Dredging Machine Cutter Head Suction Dredger Modular Design
Contact Us

For more information about our river dredger solutions, please contact our sales team.
