4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging
4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging
Specifications
Brand Name :
Jin Meng
Model Number :
JMD550
Place Of Origin :
China
Certification :
ISO
MOQ :
1 Set
Price :
$800000-$1300000
Packaging Details :
Bulk
Delivery Time :
100days
Payment Terms :
TT
Supply Ability :
10sets/year
Total Installed Power :
Up To 1662kW
Diesel Power :
Cummins/Mitsubishi
Discharge Pipe Diameter :
Up To 550mm
Water Flow :
4000m3/h
Working Capacity :
800m3/h
Cutter Head Diameter :
1800mm
Hydraulic System :
Rexroth
Application :
River Dredging
Description
4000m³/h Water Flow Mitsubishi River Dredger
Key Specifications
Attribute Value
Total Installed Power Up To 1662kW
Diesel Power Cummins/Mitsubishi
Discharge Pipe Diameter Up To 550mm
Water Flow 4000m³/h
Working Capacity 800m³/h
Cutter Head Diameter 1800mm
Hydraulic System Rexroth
Application River Dredging
Product Overview

Our 4000m³/h River Dredger features a state-of-the-art Rexroth Hydraulic System, renowned for reliable and precise control during dredging operations. This dismantle-type, non-self-propelled cutter suction dredger is engineered for optimal performance in inland waters and coastal areas.

Key Features:
  • Flexible pump options: Single-walled or Double-walled Dredging Pumps
  • Modular hull design with five pontoons for easy transport and assembly
  • Diesel engine or electric motor power options
  • Harbor generator included
  • Designed for soil types II-IV including fine sand, clay, silt, and coarse sand
Technical Specifications
Dredging Pump Discharge Pipe Diameter 550mm
Head 65m
Max. Working Capacity 900m³/h
Discharge Distance 3000m
Dredging Depth 14m
Diesel Engine 1306KW Cummins
Hydraulic Auxiliary Engine 336KW Cummins
Total Power 1662KW
Hull Dimensions (LOA×W×D) 42m × 7.5m × 2.0m
Applications

This versatile dredger is ideal for:

  • River channel maintenance and dredging
  • Canal and water storage area dredging
  • Sediment removal in lakes and reservoirs
  • Waterway construction projects
Customization Options
Model: JMD550
Price Range: $800,000 - $1,300,000
Delivery Time: 100 days

Custom configurations available:

  • Anchor boom or spud carriage installation
  • Hydraulic spud flat down system
  • Additional underwater dredging pump (20-30m depth)
  • Booster station for extended discharge distance
Overseas Services
On-site installation guidance by experienced engineers
Comprehensive operator training programs
Technical support and maintenance services
Performance testing and system debugging
Product Gallery
4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging
Manufacturing Facility
4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging
Production Workshop
4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging
Operation in Bangladesh
4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging

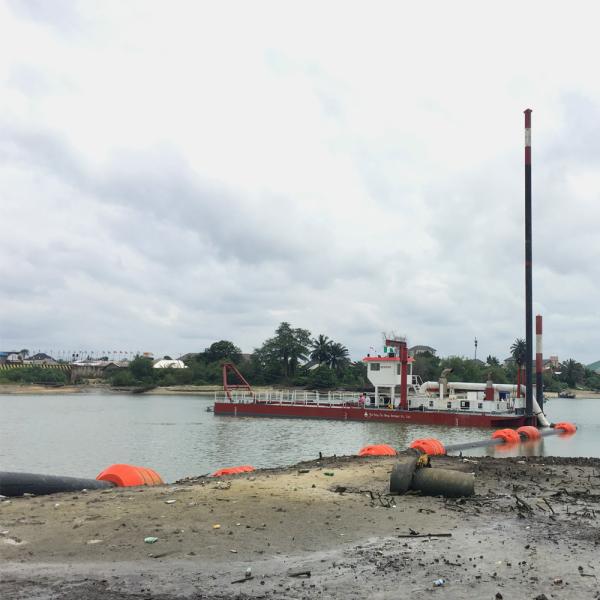

River Dredging Operation
4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging
Installation Process
4000m3/H Water Flow Mitsubishi River Dredger For River Cleaning And Dredging
Operator Training
