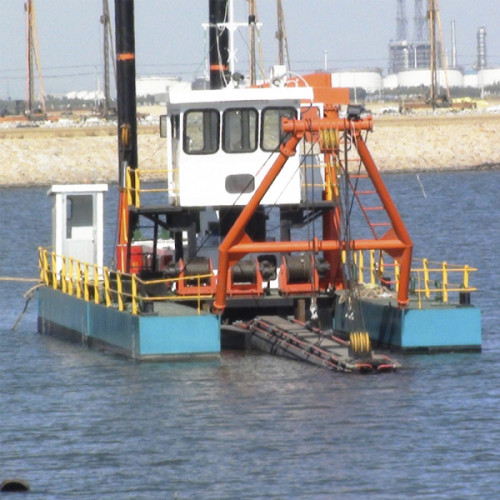

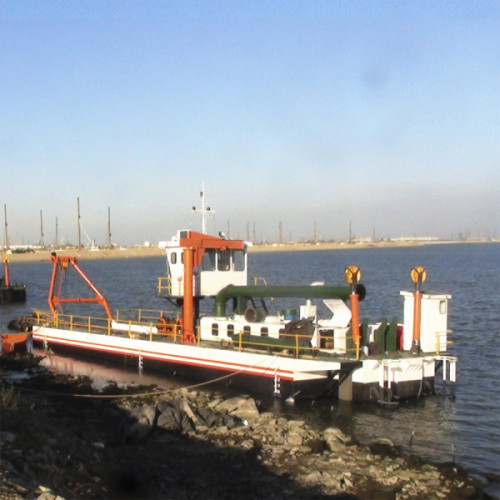

Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Specifications
Brand Name :
JIN MENG
Model Number :
JMD250
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$100000-$200000
Payment Terms :
T/T
Supply Ability :
20sets/year
Delivery Time :
60days
Packaging Details :
Containers
Name :
River small cleaning dredger equipment with cutter head
Type :
Small cutter suction dredger
Power Source :
WEICAHI Engine
Dredging Capacity :
50-100 cubic meters per hour
Dredging Depth :
6 meters
Application :
Shallow river dredging
Size :
Portable
Operating Weight :
5-10 tons
Power :
100-500 HP
Cutter Head Diameter :
500-1000 mm
Description
Shallow River Small Dredger Machine With Cutter Head Small Sand Dredge
Product Specifications
Attribute Value
Name River small cleaning dredger equipment with cutter head
Type Small cutter suction dredger
Power Source WEICAHI Engine
Dredging Capacity 50-100 cubic meters per hour
Dredging Depth 6 meters
Application Shallow river dredging
Size Portable
Operating Weight 5-10 tons
Power 100-500 HP
Cutter Head Diameter 500-1000 mm
Product Overview
The River Small Cleaning Dredger Equipment with Cutter Head is designed and constructed as a dismantle type non-self-propelled cutter suction river dredger, suitable for dredging operation of soil type II~IV, including fine sand, clay, silt, and coarse sand in inland water and coastal areas.
Key Features
  • Modular design with five pontoons (one main and four side) for easy transportation and assembly
  • Full steel welding construction with specially designed connecting pieces
  • Diesel engine driven dredge pump with harbor generator on deck
  • Manufactured according to CCS standards and regulations
  • Precision installation with concentricity less than 0.05mm
  • Marine-grade anti-corrosion paint for durability
Technical Specifications
Component Specification
Dredging Pump Dia. Discharge pipe: 250mm
Head: 35m
Max. Working capacity: 120m³/h
Discharge distance: 800m
Dredging depth: 6m
Diesel Engine 150KW YUCHAI
Generator 10KW WEICHAI
Total Power 160KW
Oil Consumption 24L/H
Hull Dimensions 16m × 4.72m × 1.26m (LOA × W × D)
Hydraulic System VICKERS America hydraulic pump
Italy SAI technology hydraulic motor
REXROTH Germany valves
Operating System SIEMENS PLC (Imported from Germany)
Cutter Head Crown-like Φ900mm
Power: 30KW
Applications
This portable cutter suction dredger features a dismantle and box-like structure that can be easily assembled at working sites and transported by road, railway, or container. The power system can be customized as electric or diesel engine driven according to customer requirements.
Customization Options
  • Anchor booms installation
  • Spud carriage installation
  • 5-anchor system for better balance
  • Hydraulic driving for spud flat down
  • Extra dredging pump for increased depth (20-30m underwater)
  • Booster station for extended discharge distance
Product Gallery
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Shallow River Small Dredger Machine With Cutter Head WEICAHI Engine
Contact Us
Weifang Jin Meng Dredger Co., Ltd. specializes in researching, designing, producing, and selling river small cleaning dredger equipment with cutter head. Contact us for more information or customization requests.
