Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Specifications
Brand Name :
JIN MENG
Model Number :
JMD650
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$800000-$1400000
Payment Terms :
T/T
Supply Ability :
10sets/year
Delivery Time :
120days
Packaging Details :
Bulk
Name :
Cutter head river suction equipment
Type :
Cutter suction dredger
Dredging Capacity :
1000 cubic meters per hour
Suction Pipe Diameter :
700 mm
Engine :
Cummins/BITSUBISHI
Condition :
Brand new
Cutter Head Diameter :
2200 mm
Shipping Terms :
FOB, CFR, CIF, DAF, CIP
Operating System :
Remote Control
Material :
Alloy steel
Description
26inch River Dredging Equipment With Cutter Head For Sand Dredging 1000M3/H
Product Specifications
Attribute Value
Name Cutter head river suction equipment
Type Cutter suction dredger
Dredging Capacity 1000 cubic meters per hour
Suction Pipe Diameter 700 mm
Engine Cummins/BITSUBISHI
Condition Brand new
Cutter Head Diameter 2200 mm
Shipping Terms FOB, CFR, CIF, DAF, CIP
Operating System Remote Control
Material Alloy steel
Product Overview

The 26-inch River Suction Equipment with Cutter Head is designed for efficient sand dredging operations with a capacity of 1000m³/h. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this equipment combines robust construction with advanced technology for optimal performance in various dredging applications.

Manufacturer Profile

Weifang Jin Meng Dredger Co., Ltd. is a leading Chinese manufacturer specializing in cutter head river suction equipment. Located in Qingzhou, Shandong Province, the company maintains strategic partnerships with renowned dredger design institutes and operates multiple domestic and international offices to provide comprehensive after-sales support.

Our equipment has been successfully deployed across dozens of Chinese provinces and exported to numerous countries including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, Bangladesh, Egypt, Nigeria, Mongolia, and Russia.

Equipment Features
  • Available in self-propelled or non-self-propelled configurations
  • Modular, box-like hull structure for easy transportation and assembly
  • Flexible power options: electric system or diesel engine
  • Comprehensive onboard equipment including traversing device, cutter ladder lifting device, spuds, and deck crane
  • Efficient working process: cutter head creates slurry mixture pumped through pipeline to designated discharge location
Technical Specifications
Component Specification
Dredging Pump Dia. Discharge pipe: 650mm
Head 65m
Max. Working capacity 1100m³/h
Discharge distance 4000m
Dredging depth 18m
Diesel Engine 1885KW Mitsubishi
Hydraulic Auxiliary engine 522KW Cummins
Emergency Generator 30KW WEICHAI
Total power 2437KW
Oil Consumption 365L/H
Hull Dimensions 50m × 8.8m × 2.5m
Hydraulic System Components VICKERS pumps (USA), SAI motors (Italy), REXROTH valves (Germany)
Operating system SIEMENS PLC (Germany)
Cutter Head Φ2200mm crown-like, 400KW power
Customization Options
  • Anchor booms installation
  • Spud carriage installation
  • 5-anchor configuration for improved balance
  • Hydraulic spud flat down system for safe water transport
  • Additional underwater dredging pump for increased depth (20-30m) and slurry concentration (30%)
  • Booster station for extended discharge distance

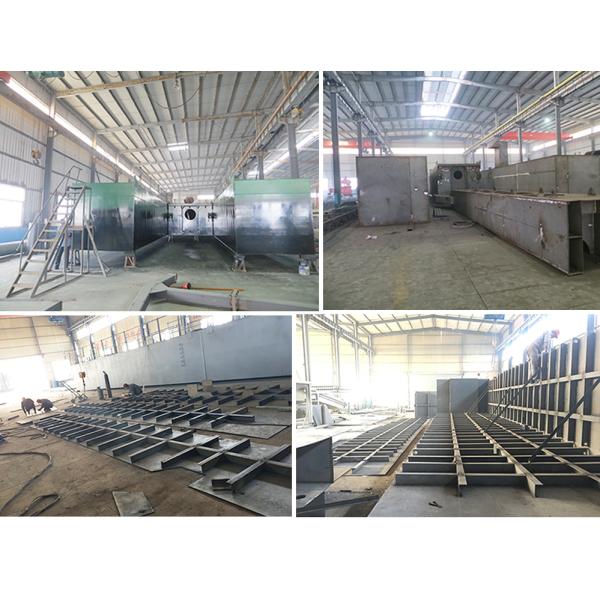

Equipment Gallery
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Alloy Steel 26 Inch Cutter Suction Dredger Sand Dredging Machine 1000M3/H
Contact Us

For more information about our 26-inch Cutter Head River Suction Equipment or to discuss your specific dredging requirements, please contact our sales team.
