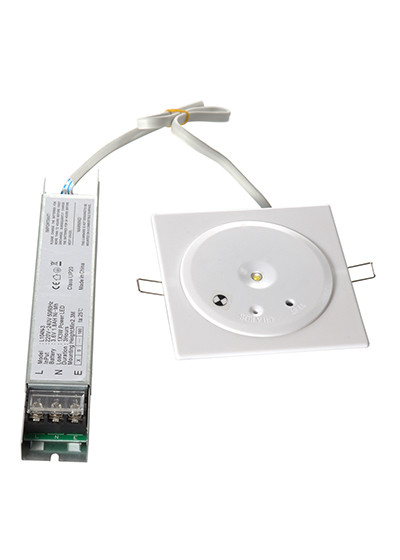

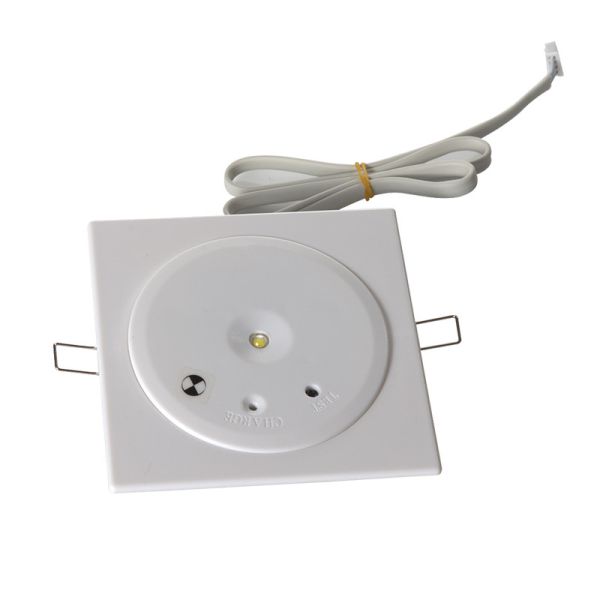

IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
Specifications
Lamp Used :
1*3W SMD White LED
IP Rating :
IP20
Input Voltage :
110-127V,220-240V 50/60Hz
Duration time :
>3hrs
Battery :
Ni-Cd 3.6V 1.0Ah
Operation :
Non-maintained
Warranty :
3years
Usage :
Fire Fighting Safety Emergency
Construction :
Electro-galvanized Steel Casing,PC plate
Package :
20PCS/45*37*25CM/11.7KG/CTN
Brand Name :
Zhui Ming
Model Number :
EL1X3AN
Certification :
CE
Place of Origin :
China
MOQ :
300PCS
Supply Ability :
3000PCS/DAY
Delivery Time :
45 Days after Deposit
Packaging Details :
1 Set in 1 Inner Carton,20 sets in 1 Master Carton
Description
IP20 Ceiling Emergency Light Permanent / Non-Permanent LED Lamp High Brightness
IP20 3 Hours Operation LED Emergency Light, Permanent / Non-permanent LED Lamp
Product Specification
Operation Non-maintained
Input Voltage 110V-127V 50/60Hz; 220V-240V 50/60Hz
Charging Current 40mA (Nominal)
Lamp type 1 watt SMD White LED
Battery Ni Cd Battery 3.6V 1.0AH
Indicator Red LED Indicates Charging
Duration Time More than 3 hours
Construction Electro-galvanized Steel Casing with Corrosion Resistant Epoxy Spray Coating; PC Plate
IP Rate IP20
Installation Ceiling Recessed Mounted
Weight 0.5 kg
Working Temperature -10℃ to 60℃
Size 350mm×110mm×38mm Tolerance ±0.03mm
Customization Battery, Duration Time, Package, Wire length
Technical Parameters
  • Input Power: AC 220V-240V 50Hz / 60Hz
  • Light source: 3W high power LED
  • Emergency time ≥180 minutes
  • Emergency conversion time ≤1S
  • Emergency switching voltage: AC 144V-204V 50Hz / 60Hz
  • Battery: Ni-MH 3.6V / 1600mA
  • Installing hole size: Ф75mm
Operating Manual
  • Disconnect the AC power during installation.
  • This product should not be installed in places such as outdoors, humid and corrosive gas environments.
  • This product should use a separate loop-powered circuit. It should not share circuit with lighting or other electrical equipment (with a switch), to ensure this LED emergency ceiling light can be recharged normally.
  • To ensure the product operates normally, it should be checked regularly.
  • The products have been discharged before leaving the factory. So it needs to be charged 24 hours when used.
  • If the product is in storage or not used for a long time, it should be charged and discharged once every three months to protect the battery performance.
  • Please keep this manual.
Product Show
IP20 Rated Ceiling Emergency Light with 3 Hours Operation Non-maintained LED Emergency Lamp
