3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E
3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E
3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E
3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E
Specifications
Brand Name :
Zhuiming
Model Number :
L116N-E
Certification :
CE
Place of Origin :
China (Mainland)
MOQ :
300 sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 sets per day
Delivery Time :
40-45 days after payment
Packaging Details :
1 set in 1 box, 10 sets in 1 carton
Operation :
Maintained
Lamp type :
6pcs SMD 5730 LED
Battery :
Ni-Cd 3.6V1.8Ah
Emergency Time :
>3 hours
Installation :
Ceiling Recessed
Construction :
ABS Casing, Acrylic Plate
Input Voltage :
220-240V 50/60Hz
Charging Current :
120mA
Size :
220x30x30mm
IP Rate :
IP20
Description

3W LED Ceiling Recessed Double-side Emergency Commerical Exit Sign

Product feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.

Product Specification

  • Operation: Maintained
  • Input Voltage: 220-240V 50/60Hz
  • Lamp Type: 6pcs SMD 5730 LED
  • Battery: Ni-Cd Battery 3.6V1.8Ah
  • Indicator: Red LED--Charging, Green LED--AC power on
  • Duration Time: 3 Hours
  • Construction: Aluminum Masterial End Cap, Acylic Plate
  • IP Rate: IP20
  • Installation: Ceiling Recessed
  • Working Temperature: -10℃ to 55℃
  • Size:265mmx30mmx30mm

Operation wire:

You can choose installing Emergency lighting in No-Maintained Lighting modality and in Maintained Lighting modality.

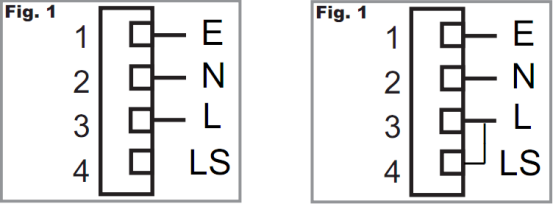

1)In Fig.1 is shown connection to be made to have No-Maintained lighting modality. LED emergency light will be switched ON, if there is a blackout.

2)In Fig.2 is shown connection to be made to have Maintained lighting modality. Differerence is represented by a jumper that will drive input voltage to PIN 4 .LED emergency light will be always switched ON.

3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E

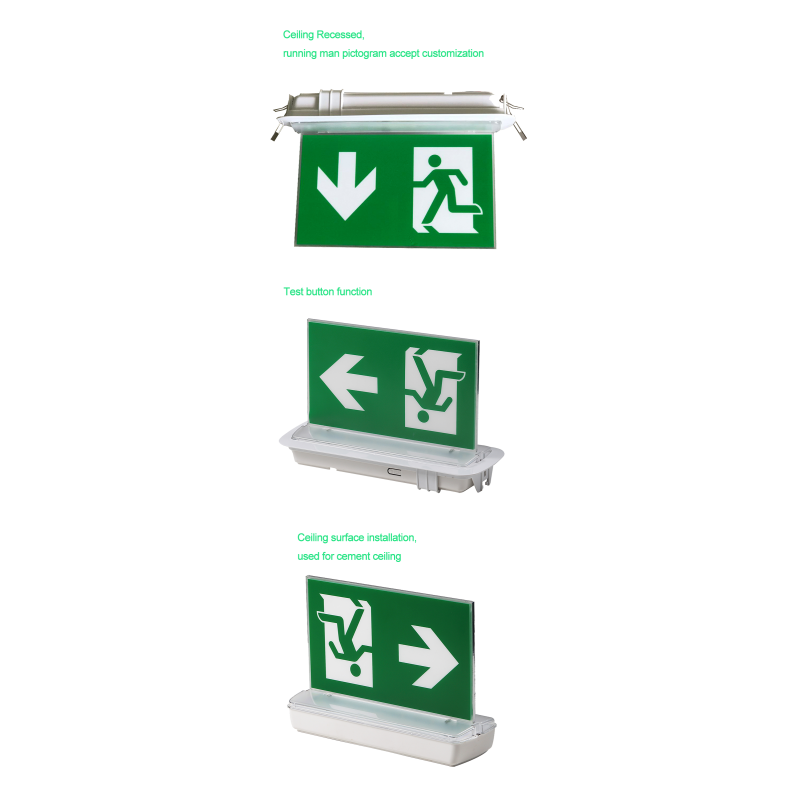

Product Show:

3W LED Ceiling Recessed Double Side Emergency Exit Sign Commercial L116N-E
