CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
Specifications
Battery Type :
Ni-Cd
Bulb Type :
LED
Certification :
CE
Installation :
Ceiling Recessed Mounted
Specifications :
1 W SMD White LED
Material :
Electro-galvanized Steel Casing,PC Plate
Usage :
Emergency Lighting for various Buildings
Input Voltage :
110V-127V 50/60Hz; 220V-240V 50/60Hz
Brand Name :
Zhuiming
Model Number :
EL1*1AN
Place of Origin :
Zhejiang
MOQ :
300
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs/month
Delivery Time :
35days after deposit
Packaging Details :
1Piece in 1 Inner Carton,20 Pieces In 1Master Carton
Charging Current :
40mA(Nominal)
Description
CE Approved Recessed LED Downlights / Fire Emergency Lights 1 Watt SMD White LED
Product Overview

CE Approved Zhuiming LED Downlight Fire Emergency Light with advanced safety features and reliable performance.

Technical Specifications
Parameter Specification
Operation Non-maintained
Input Voltage 110V-127V 50/60Hz; 220V-240V 50/60Hz
Charging Current 40mA (Nominal)
Lamp Type 1 watt SMD White LED
Battery Nickel-Cadmium Battery 3.6V 1.0AH
Indicator Red LED Indicates Charging
Duration Time More than 3 hours
Construction Electro-galvanized Steel Casing with Corrosion Resistant Epoxy Spray Coating; PC Plate
IP Rate IP20
Installation Ceiling Recessed Mounted
Weight 0.5 kg
Working Temperature -10℃ to 55℃
Size 350mm×110mm×38mm Tolerance ±0.03mm
Customization Battery, Duration Time, Package, Wire length
Package Information
Package Details Specification
Package 1 Set in 1 Inner Carton, 20 Sets In 1 Master Carton
Master Carton Size 405mm×370mm×235mm
Gross Weight 11.7kg
Net Weight 9.85kg

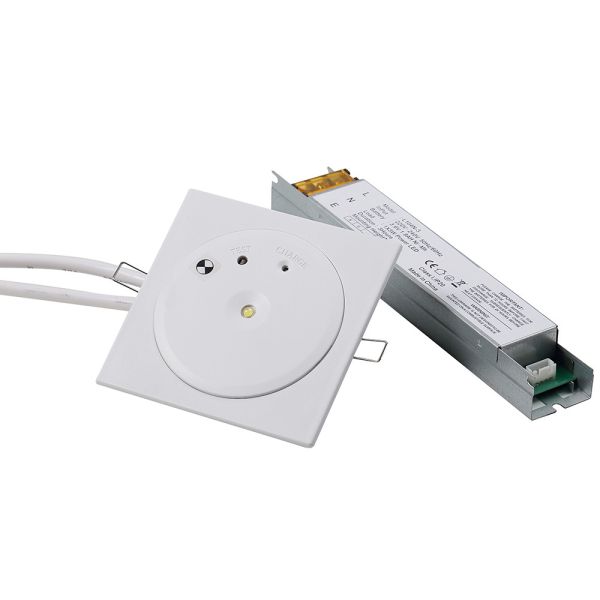

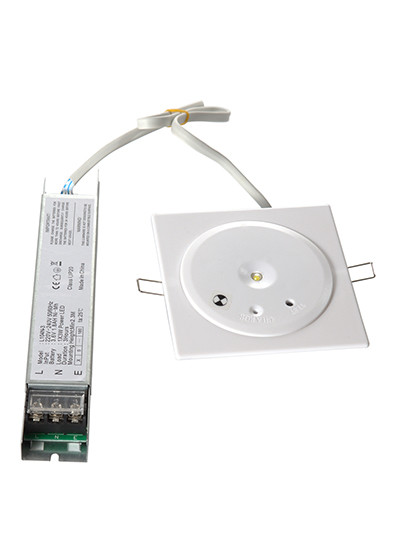

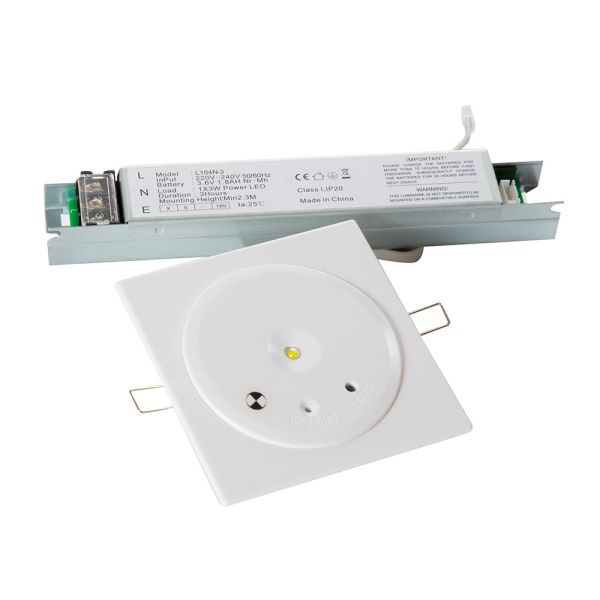

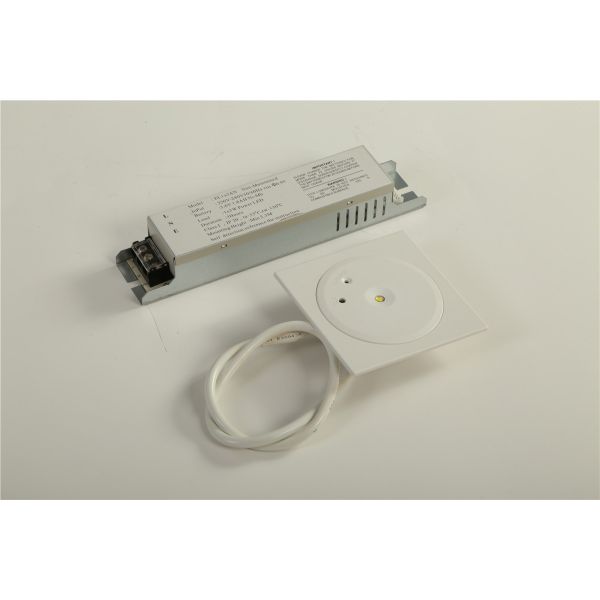

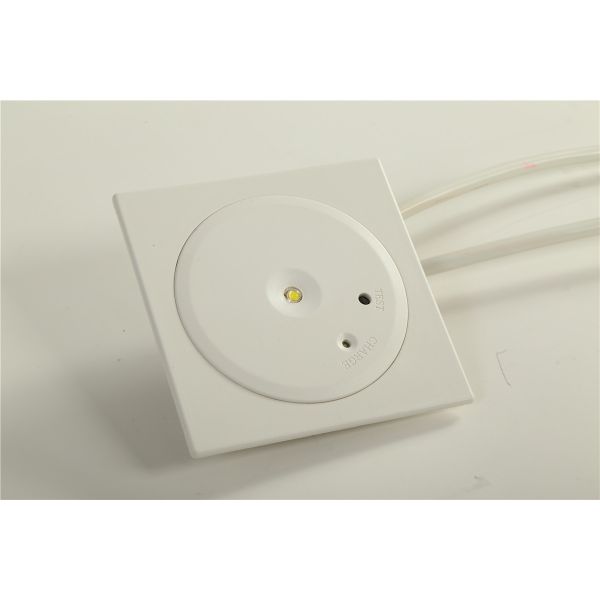

Product Images
CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery CE Approved Recessed LED Downlight Fire Emergency Light with 1 Watt SMD White LED and Ni-Cd Battery
Indicator Status Guide
Indicator Performance Status Meaning
Red Lit Charging
Green Lit Fully charged
Green Slow blink (1Hz) Manual check mode
Green Blink (3Hz) Automatic monthly self-check mode
Green Quick blink (5Hz) Automatic annual self-check mode
Yellow Lit Battery aging, or too short emergency time
Yellow Slow blink (1Hz) Battery is in short circuit or open circuit
Yellow Blink (3Hz) Wrong connection with lamps or not matchable lamps
Off Emergency or stop working condition
Test Button Operation Guide
Pressed Time Indicator Status Check Mode
<1s No reaction None. To avoid mistakenly operating
1~3s Slow blink (1Hz) in green Check mode and discharge for 5 seconds
3~5s Blink (3Hz) in green Monthly self-check mode and discharge for 2 mins
5~7s Quick blink (5Hz) in green Annual self-check mode and discharge for 1 hour
>7s Stop discharging to recharge again
Key Features

Over 3 hours emergency lighting after sudden blackout

Applications

For shopping malls, office buildings, government buildings, teaching buildings, residential buildings, hospitals, dormitories and similar facilities.

Certifications

Our products are guaranteed by CE and RoHS certifications.

Delivery Information
  • 35 days on receipt of your payment
