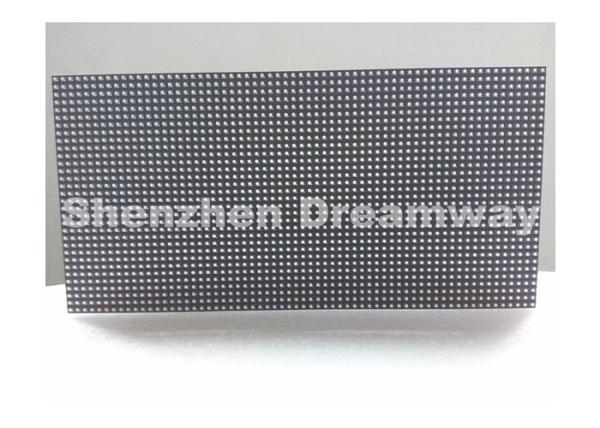

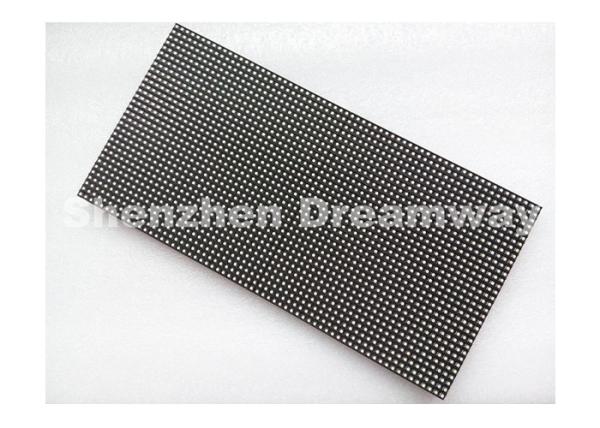

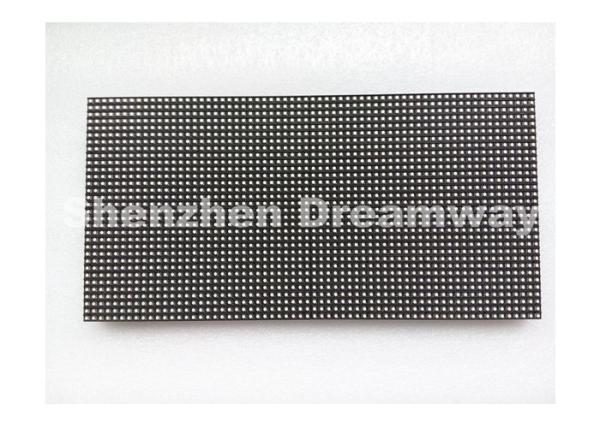

64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
Specifications
Brand Name :
Dreamway
Model Number :
P5
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10,000PCS/Month
Delivery Time :
5 days after receiving the deposit
Packaging Details :
Carton case
Pixel Pitch :
5 mm
Pixel :
64 × 32 dots
Size :
320 × 160 mm
Depth :
1.5 cm
Max. Current :
4.1 Amp
Driving Mode :
1/16 scan
LED Type :
SMD3528
Drive IC :
JXI5020
Description

64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness

Quick Detail:

1. 40,000 pixels per square meter;

2. 64 by 32 dots per LED module;

3. 320 by 160 mm size;

4. SMD3528 LED type;

5. About 4.1 Amp/pc;

6. About 0.38 kg/pc.

Detail Description:

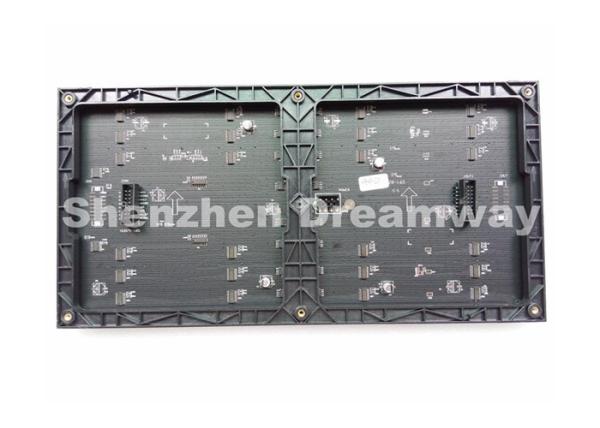

This type LED module is composed of 2,048 dots;

It is 1/16 scan constant current, with 24 pcs 5020 driving IC;

Packed with carton case or plywood case, EPE foam inside for protection.

Specifications:

Type

P5

Resolution

40,000 pixels/sq.m

LED Type

SMD3528

LED Module Pixel

W 64 × H 32

LED Module Dimension

W 320 × H 160 mm

Driving IC

JXI5020

Driving Method

1/16 scan constant current

Current

4.1 Amp

Thickness

1.5 cm

Weight

0.38 kg

64 x 32 dots LED Screen Module PH 5 RGB with 1500 CD Brightness
