640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Flight case
Description

640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR

Quick Detail:

1. 16 × 16 dots LED module;
2. 160 × 160 mm module size;
3. 640 × 640 mm cabinet dimension;
4. 120° viewing angle;
5. MBI5224 driving IC;
6. More than 8,000 nits.

Detail Description:

The LED chip is EPISTAR brand, high luminance reaches to 8,000 nits;

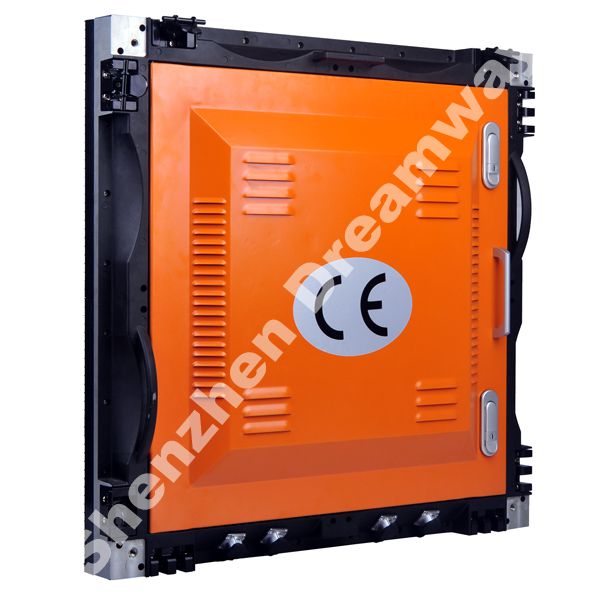

Each cabinet is composed with 4×4 pcs LED module, 640×640 mm size;
Novastar controller is used for synchronization control with high refresh rate and stability.

Application:

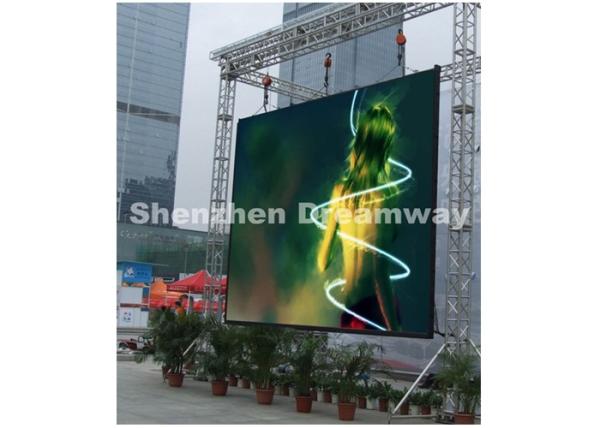

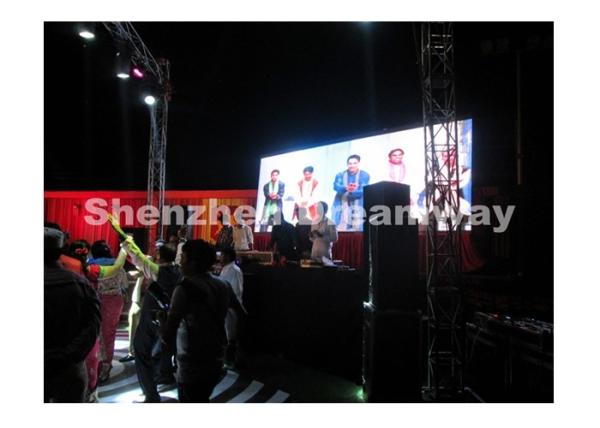

This LED screen rental is used for outdoor advertising, with special design for assemble and disassemble easily.

Specifications:

Pixel Pitch

10 mm

LED Chip

EPISTAR

LED Type

DIP346

LED Composition

1R 1G 1B

Module Pixel

W 16 × H 16

Module Size

W 160 × H 160 mm

Cabinet Size

W 640 × H 640 mm

Cabinet Color

Yellow

Material

Die-casting waterproof cabinet

Drive Mode

1/4 scan constant current

Luminance

≥8,000 nits/sq.m

Refresh Rate

≥1200Hz

Drive IC

MBI5224

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

Switch Power

G-energy, 110V and 220V switchable

Input Signal

HDMI, VGA, DVI, S-VIDEO, etc

Video Processor

JSEE

Package

Flight Case

Operation Software

Novastudio

640mm x 640 mm PH 10 Outdoor LED Screen Rental Die-Cast Aluminum with EPISTAR
