Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit

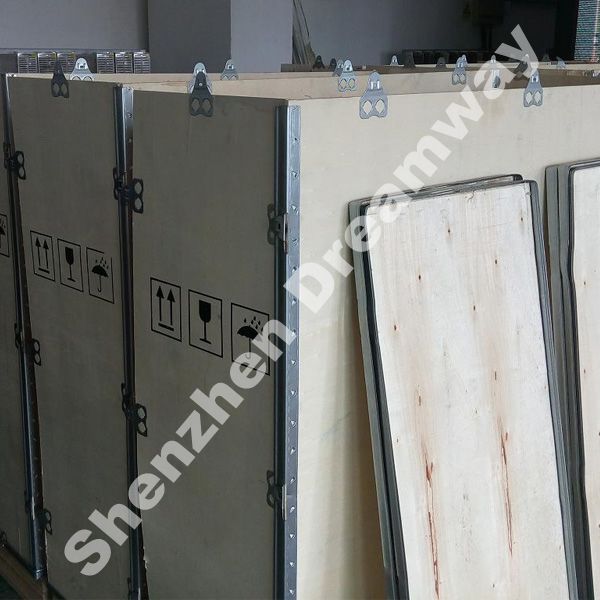

Packaging Details :
Plywood case
Model :
P10
LED Chip :
Epistar
LED Box :
960 × 960 mm
Protection Degree :
IP65
Power Source :
Chuanglian
Power Cable :
5 meters
Signal Cable :
30 meters
Package :
Plywood case
Description



Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate


Quick Detail:

1. 16 × 16 dots per LED module;
2. 160 × 160 mm module size;
3. DIP346 LED type;
4. EPISTAR LED chip;
5. Chuanglian brand power supply;
6. LINKO power and signal connector.


Detail Description:

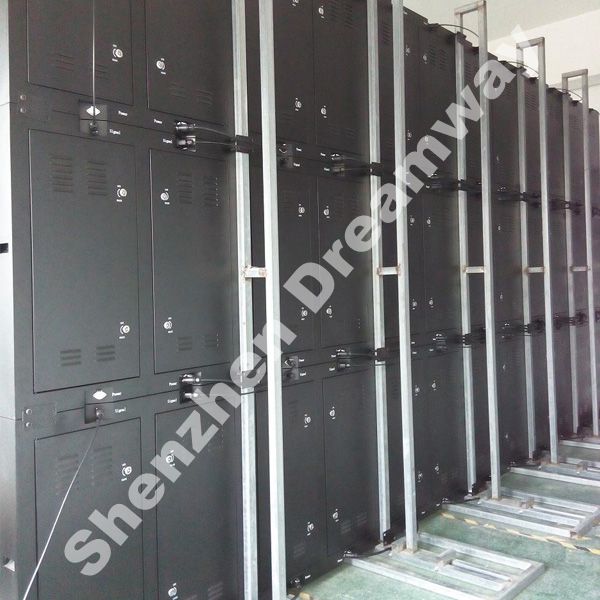

Each cabinet is composed with 6 by 6 pcs LED module, with 960 by 960 mm size;
Each LED box is 150 mm thickness, about 42 kg/pc;
The power supply is 5V 40A, with 4 pcs in each cabinet.


Application:

Outdoor advertising LED display is installed outside for video advertising.


Specifications:

Type

P10

LED Chip

Epistar

LED Type

DIP346

Resolution

10,000 dots/sq.m

Module Pixel

W 16 × H 16

Module Size

W 160 × H 160 mm

Cabinet Dimension

W 960 × H 960 × D 150 mm

Cabinet Weight

42 kg/pc

Cabinet Material

Steel waterproof cabinet with back door

Cabinet Color

Black

Luminance

More than 6,500 nits/sq.m

Refresh Rate

≥1200Hz

Drive Method

1/4 scan constant current

Drive IC

JXI5020

Viewing Angle

100 degrees

Power Consumption (MAX)

about 700 W/sq.m

Power Supply

220V / 60HZ

Brand

Chuanglian

Controller

Novastar

Package

Plywood case


Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
Full Color 10 mm Outdoor Advertising LED Display Screen with High Refresh Rate
