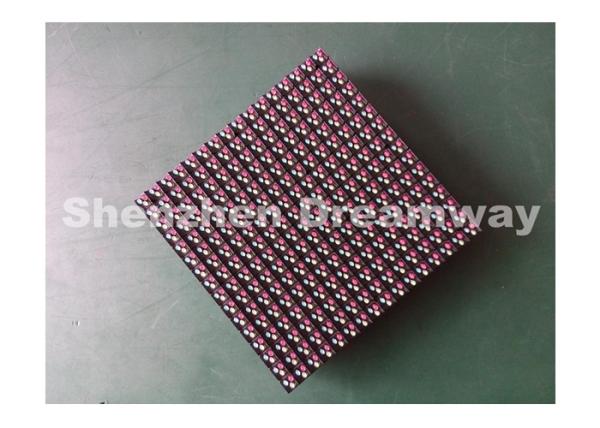

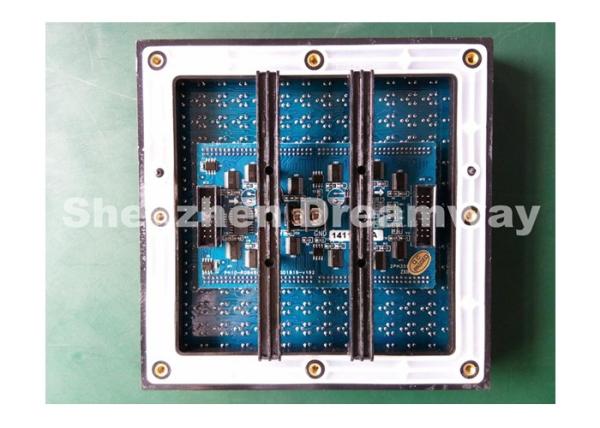

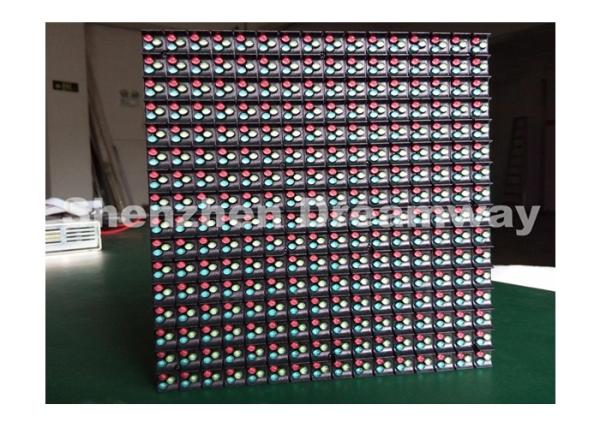

7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10,000PCS/Month
Delivery Time :
5 days after receiving the deposit
Packaging Details :
Carton case
Model :
P10
Resolution :
16 × 16 dots
Dimension :
160 × 160 mm
LED Type :
DIP346
LED Chip :
EPISTAR
Luminance :
7500 nits/sq.m
Drive IC :
MBI5024
Max. Current :
3.3 Amp
Description

7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module

Quick Detail:

1. Epistar LED chip;

2. MBI5024 driving IC;

3. 2.5 cm thickness;

4. About 0.38 kg/pc;

5. About 3.3 Amp/pc;

6. 12 pcs 5024 ICs.

Detail Description:

This type of LED module is with high brightness, reaching to more than 7,500 nits/sq.m;

The driving IC is MBI5024, Taiwan brand, high quality with wholesale price;

Each LED module is with 16 by 16 dots, 160 by 160 mm size.

Specifications:

Type

P 10

Resolution

10,000 dots/sq.m

LED Type

DIP346

LED Module Pixel

W 16 × H 16

LED Module Size

W 160 × H 160 mm

LED Composition

1R 1G 1B

Driving Method

1/4 scan constant current

Drive Voltage

5V

Thickness

2.5 cm

Brightness

Over 7,500 nits/sq.m

7500 nits P 10 Outdoor LED Display Module , 160 by 160 mm EPISTAR LED Module
